2003 MAZAK FH6800

2003 MAZAK FH6800

Contact us for price

Livonia, MI

Contact Us

orCall 732-367-4130

Description

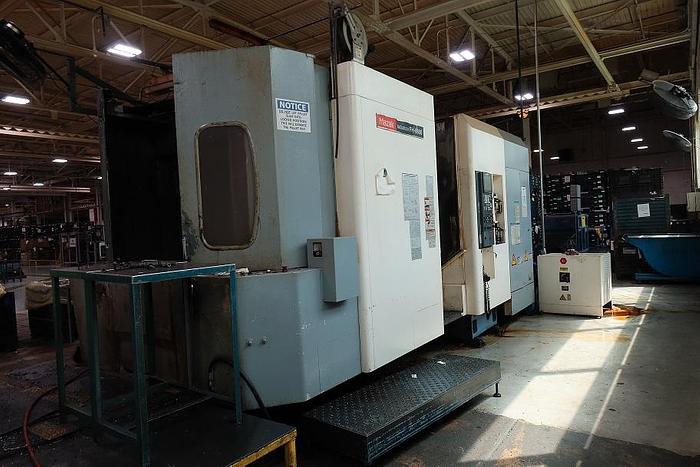

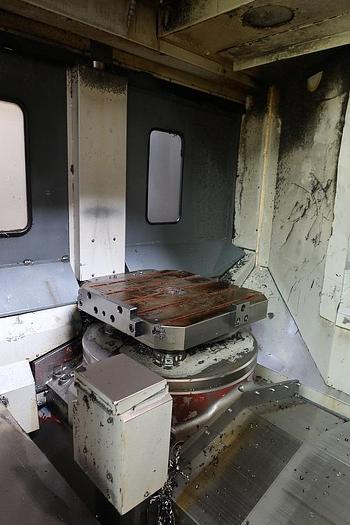

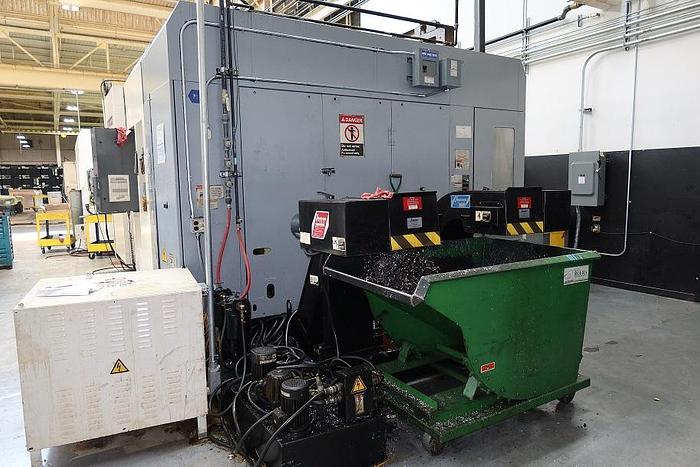

Mazak FH6800 HMC- 5 units



2 Units 2003

2 Units 2001

1 Unit 2000

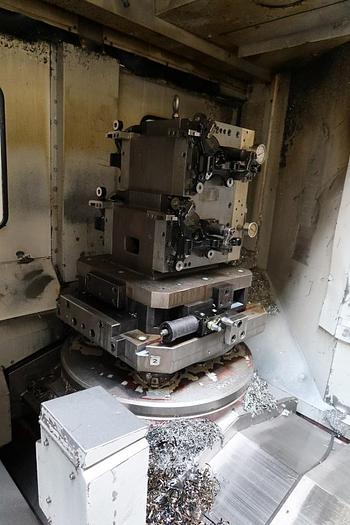

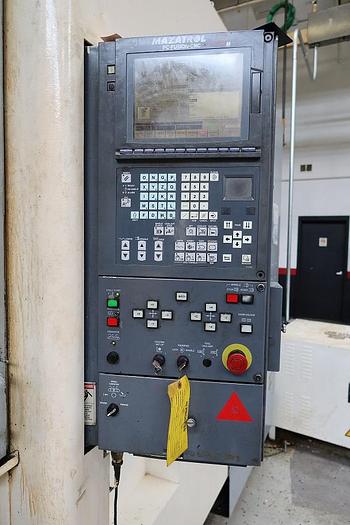

Equipped with Fusion 640, Coolant through spindle, Full 4th axis









SPECIFICATIONS:

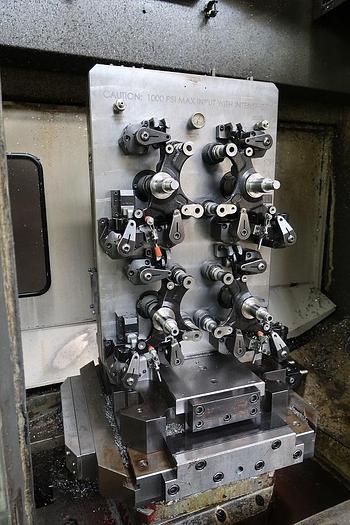

 Pallet Size........................24.8" x 24.8"



 TRAVELS



 X‑Axis Travels.....................41.3"



 Y‑Axis Travels.....................31.5"



 Z‑Axis Travels.....................34.7"



 Distance from Spindle Nose to



 Pallet Center...................5.9" ‑ 40.6"



WORKPIECE SIZE



 Maximum Table Load.................3,315 lbs.



 Maximum Workpiece Height...........39.4"



 Maximum Workpiece Diameter.........41.3"

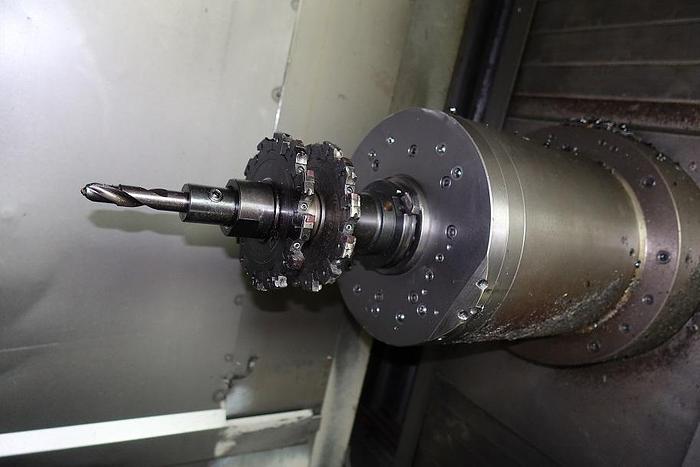

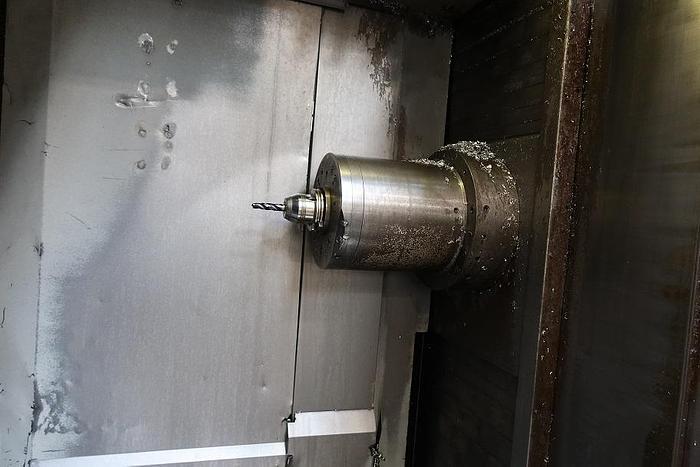

SPINDLE



 Spindle Nose.......................Cat #50



 Spindle Horsepower.................50 HP



 Spindle Torque.....................386.9 ft./lbs.



 Obtains Full HP @..................480 RPM



 Constant Torque Range..............35 ‑ 480(243) RPM



 Spindle RPM........................7,000



 Spindle Speed Increment............1 RPM



 Number of Ranges...................1 Ranges(2)



 Tool Clamping Force................4,630 ft./lbs.



 Spindle Cooling System.............Spindle Chiller Unit

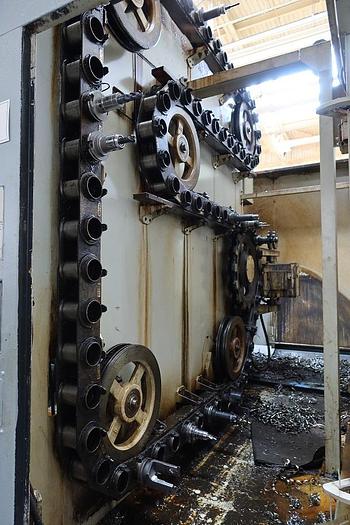

AUTOMATIC TOOL CHANGER



 Magazine Capacity..................80 (OPTION)



Tool‑to‑Tool Time....................1.8 Seconds



 Chip‑to‑Chip Time (Approx.)........5 Seconds



 Maximum Tool Diameter..............5.31"



 Max. Tool Dia. w/Adjacent Pockets Empty.10.2"



 Maximum Tool Length................19.7"



 Maximum Tool Weight................66 lbs.



SERVO/AXIS DRIVES



 Type of Servo Drives...............Digital AC Motors



 Rapid Traverse Rate................1,575 IPM



 Y‑Axis Thrust.....................1,760 lbs.



 Z‑Axis Thrust......................3,500 lbs.



 Floor Space Required...............146" x 250.5"



 Machine Height From Bottom of Base.125.5"



 X‑Axis Thrust......................3,520 lbs.



 KVA Rating Will Be Greater.



 Machine Weight.....................41,990 lbs.

Specifications

ManufacturerMAZAK
ModelFH6800
Year2003
ConditionUsed
