1995 Haas VF-6

The 1995 Haas VF-6 is a reliable and robust vertical machining center, suitable for various industrial applications. It features a Haas CNC Control with a powerful 15 HP high-torque spindle reaching up to 7500 RPM, delivering efficient performance. The VF-6 is equipped with a 20-station automatic tool changer, ensuring quick and smooth transitions during operation, with a tool changing time of approximately 4.2 seconds. The machine's travel dimensions include an X-axis of 64", a Y-axis of 32", and a Z-axis of 30", providing ample space for projects. The machine supports cutting feed rates of up to 500 inches per minute and rapid traverse rates of 600 inches per minute. It accommodates a CAT-40 spindle taper size and offers spindle orientation, rigid tapping, and programmable coolant for enhanced functionality and precision. Designed to handle heavy-duty tasks, the VF-6 has a table measuring 64" in length and 28" in width, capable of supporting up to 4000 lbs with standard T-slots. Overall dimensions of the equipment are 158" x 98" x 118", and it weighs 22,000 lbs, requiring a power supply of 220v / 66FLA / 3-phase, with an air requirement of 100 psi. This machine is 4th axis ready, making it adaptable for further expansion in machining capabilities.

Haas VF6 Vertical Machining Center 1995

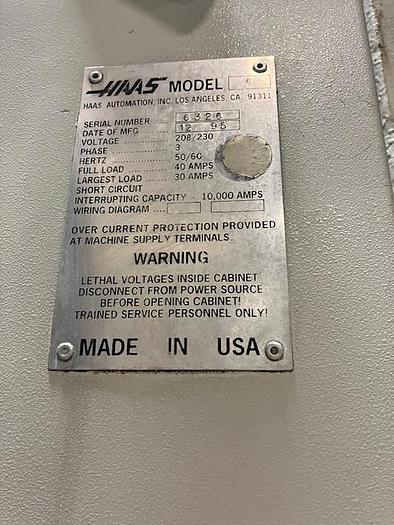

•            S/N 6326

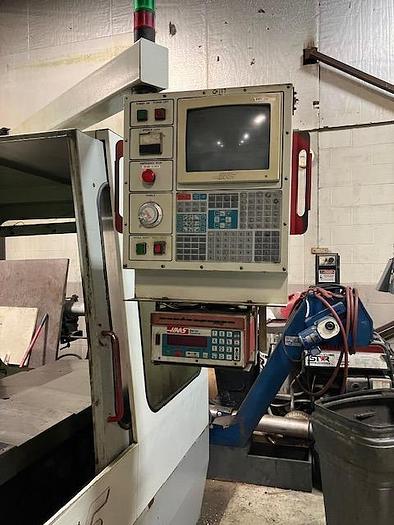

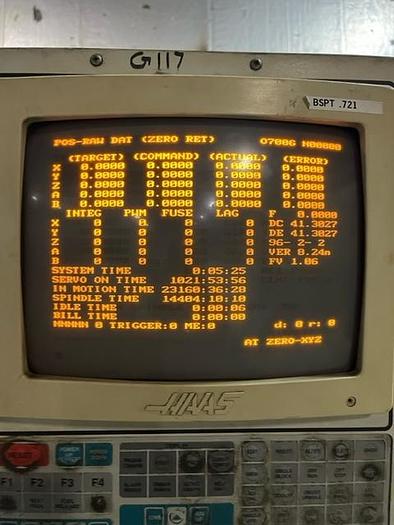

•            Haas CNC Control

•            7500 RPM Spindle

•            15 HP High Torque Spindle

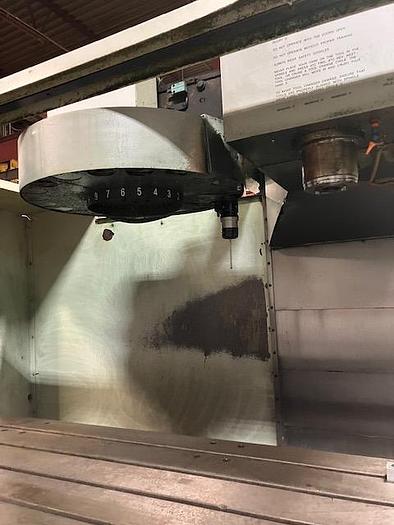

•            20 Station Automatic Tool Changer

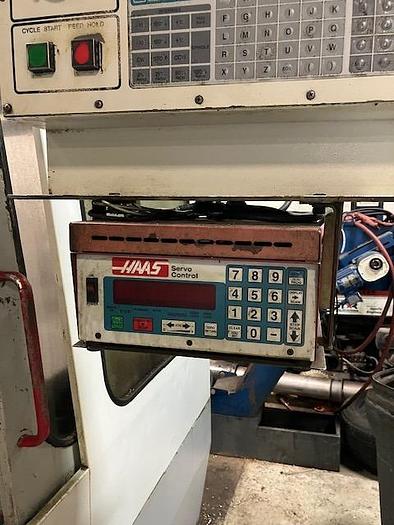

•            4th Axis Ready including drive

•

•            Rigid Tapping

•            Spindle Orientation

•            Programmable Coolant

•            Telescopic Way Covers

•            Coolant System

TRAVELS:

1.           X-Axis: 64″

2.           Y-Axis: 32″

3.           Z-Axis: 30″

4.           Rapid Traverse Rates: 600 Inch Per Minute

5.           Cutting Feed Rates: 500 Inch Per Minute

6.           Spindle Nose to Table (Min.- Max.): 5″ – 35″

TABLE:

•            Length: 64″

•            Width: 28″

•            Number of Std T-Slots: 5

•            T-Slot Width: 5/8″

•            Max Weight on Table: 4000 lbs

TABLE:

•            Length: 64″

•            Width: 28″

•            Number of Std T-Slots: 5

•            T-Slot Width: 5/8″

•            Max Weight on Table: 4000 lbs

SPINDLE:

•            Taper Size: CAT-40

•            Speed Range: 7500 RPM

•            Spindle Power: 15 HP

•            Vector Drive Max Torque: 90ft-lb @ 2000 RPM

AUTOMATIC TOOL CHANGER:

•            Capacity: 20 Station Umbrella Type

•            Max Tool Weight: 12 lbs

•            Max Tool Diameter (Full): 2.5″

•            Max Tool Diameter (adjacent empty): 5″

•            Max Tool Length: 16″

•            Tool Changing Time: 4.2 Seconds

GENERAL:

•            Air Required: 100 psi 4 scfm

•            Power: 220v / 66FLA / 3-Phase

•            Overall Dimensions: 158″ x 98″ x 118″ High

•            Weight: 22000 lbs
