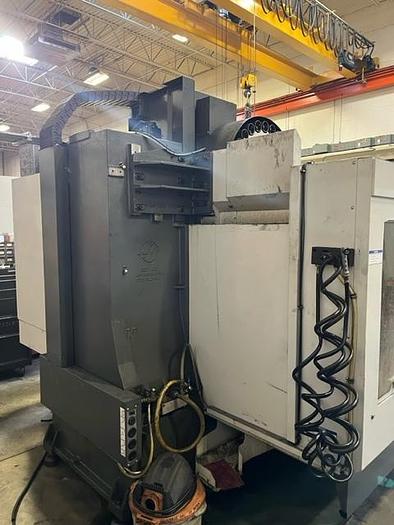

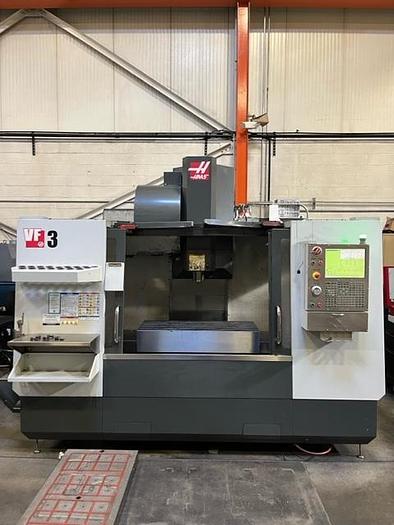

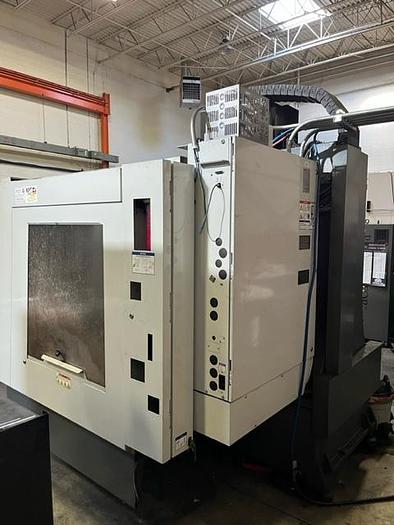

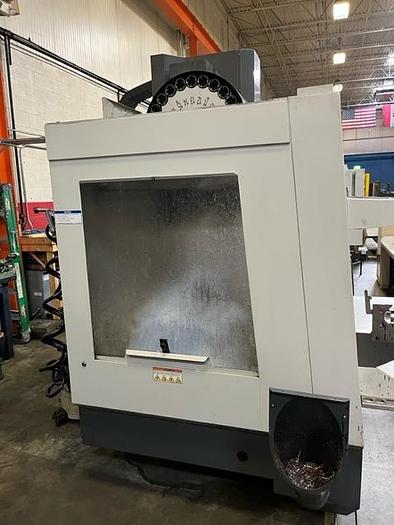

2011 Haas VF-3

The 2011 Haas VF-3 is a reliable vertical machining center known for its high precision and versatility. It features a table size of 48" x 18" and supports a maximum table load capacity of 3,500 lbs. The VF-3 is equipped with a powerful 20 HP spindle that reaches speeds of up to 15,000 RPM, making it suitable for demanding machining tasks. The machine's axis travels are 40" for the X-axis, 20" for the Y-axis, and 25" for the Z-axis, offering ample space for various machining operations. This model comes with a high-speed machining capability and a 24+1 tool side-mount automatic tool changer (ATC) that enhances efficiency during operations. It supports rapid traverse rates of 1000 inches per minute across all axes and has a cutting feedrate of 650 IPM. The VF-3 is equipped with advanced features such as Haas intuitive programming, macros, rigid tapping, and tool life management to streamline complex tasks while ensuring precision. The Haas VF-3 weighs approximately 12,500 lbs and is equipped with additional features like a chip auger with chip chute, making it a comprehensive solution for a variety of machining needs. Its intuitive control system, combined with software enhancements like rotational and scaling capabilities, delivers exceptional accuracy and productivity in any industrial setting.

Haas VF-3 VMC, 2011 – Side-Mount ATC, High Speed Machining, 15k Spindle

Table Size 48″ X 18″

Maximum Table Load Capacity 3500 Lbs.

Spindle Nose to Table Top 4″ – 29″

X – Axis Travel 40″

Y – Axis Travel 20″

Z – Axis Travel 25″

Spindle Nose CAT # 40

Spindle Speed 15,000 RPM

Main Motor 20 HP

Rapid Traverse Rate X, Y, Z 1000, 1000, 1000 IPM

Cutting Feedrate 650 IPM

Tool Magazine 24 + 1 ATC

Maximum Tool Weight 12 LBS

Maximum Tool Diameter 3.5″

Machine Weight 12,500 LBS.

Equipped with

1MB MEMORY

HAAS CNC 32-BIT CONTROL

HAAS INTUITIVE PROGRAMMING SYSTEM

HIGH SPEED MACHINING

MACROS

RIGID TAPPING

ROTATIONAL & SCALING

SOFTWARE VERSION M17.03A

TOOL LIFE MANAGEMENT

CHIP AUGER WITH CHIP CHUTE
