2006 OKUMA MA600HB

Sold

2006 OKUMA MA600HB

Livonia, MI

Description

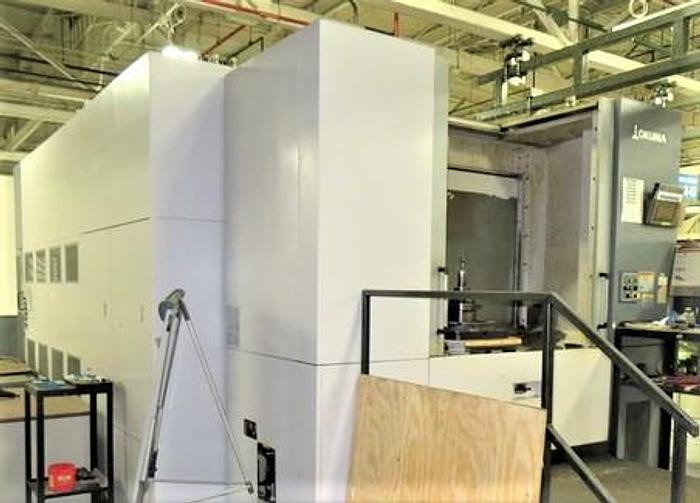

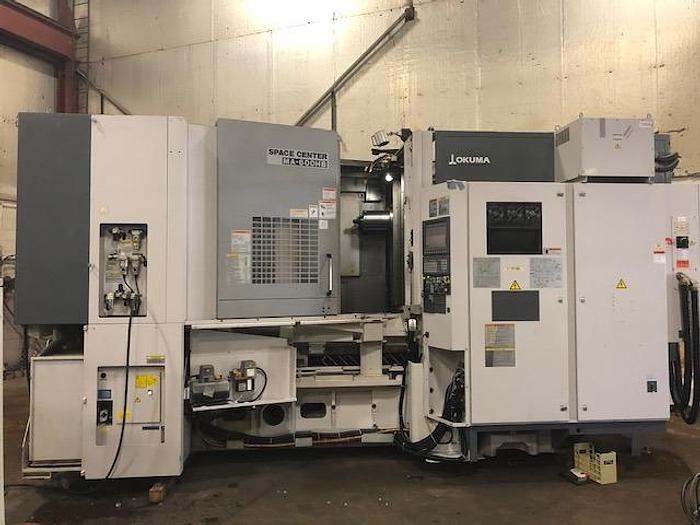

OKUMA MA600HB CNC 4-AXIS HORIZONTAL MACHINING CENTER


25'" X 25" PALLETS, 39"X, 35"Y 39"Z, 12000 rpm geared spindle, 50 taper, 120 pos. ATC, 1000PSI coolant thru, full 4th axis, OSP P200 CNC, New 2006 Aerospace plant



Specifications

CATALOGUE SPECIFICATIONS:

Longitudinal Table Travel (X-Axis)................... 39.37"

Vertical Travel (Y-Axis)............................. 35.43"

Head Cross Travel (Z-Axis)........................... 39.37"

Pallet Dimensions.................................... 24.9" x 24.9"

Maximum Pallet Load.................................. 2,640 LBS

Number of Pallets.................................... 2

Number of Index Positions............................ 360,000

Spindle Nose to Pallet Center Minimum................ 2.75"

Spindle Nose to Pallet Center Maximum................ 37.40"

Rapid Traverse, All Axes............................. 1574 IPM

Spindle Horsepower................................... 40 HP

Spindle Speed Range.................................. 50-12000 RPM

Spindle Taper........................................ #50 CAT

Number of Tool Positions............................. 85

Approximate Machine Dimensions....................... 244" x 133"

Approximate Machine Height........................... 130"



Equipped With

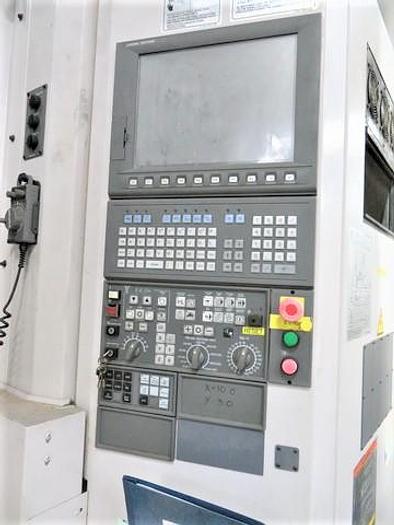

OSP P200 CNC Control,

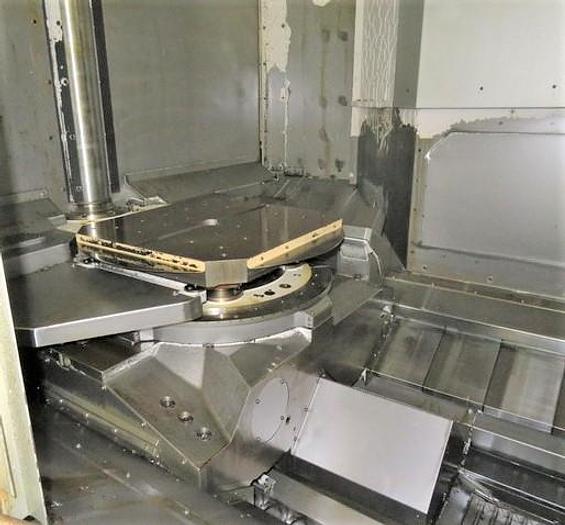

(2) 24.9" Fully Contouring Pallets (360,000 Positions)

Inductosyn B-axis scale

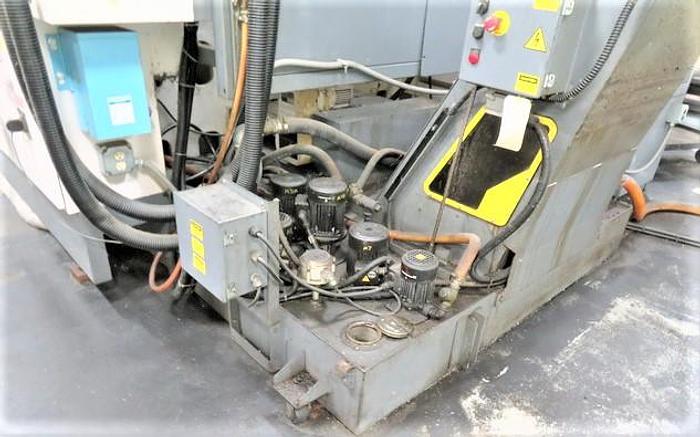

1000 psi High Pressure Thru the Spindle Coolant,

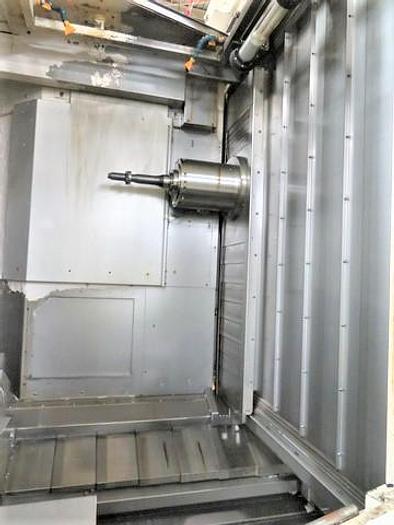

12,000 RPM Spindle with Cat-50 Taper,

Tool Break Detection,

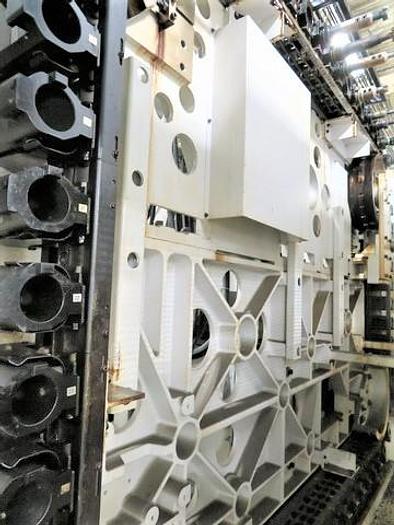

120 Station Automatic Tool Changer,

Centralized Auto Lubricator

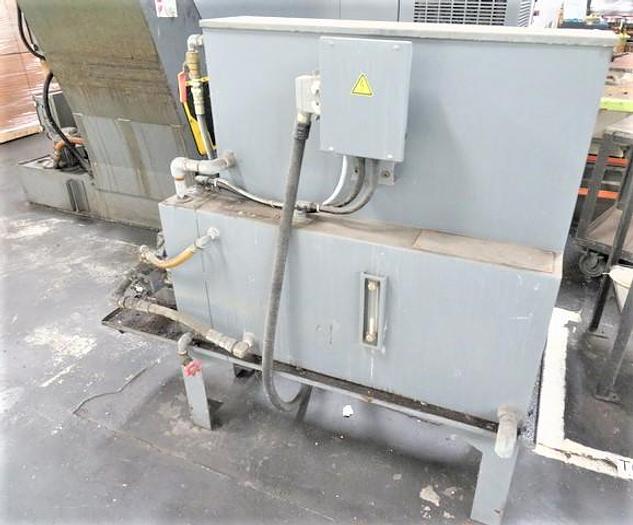

, Spindle Chiller,

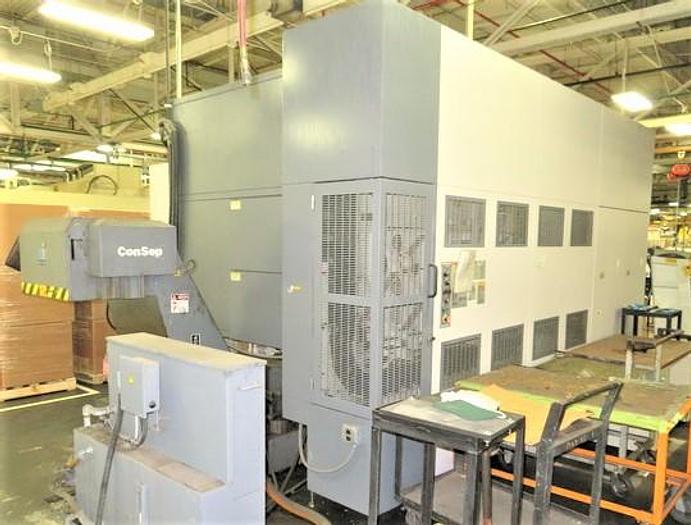

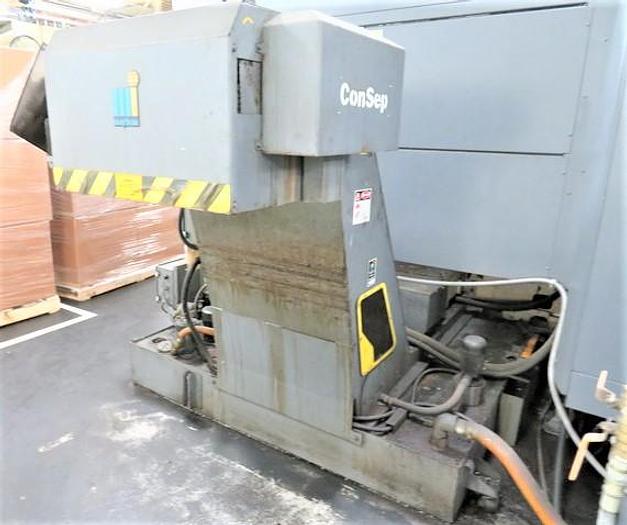

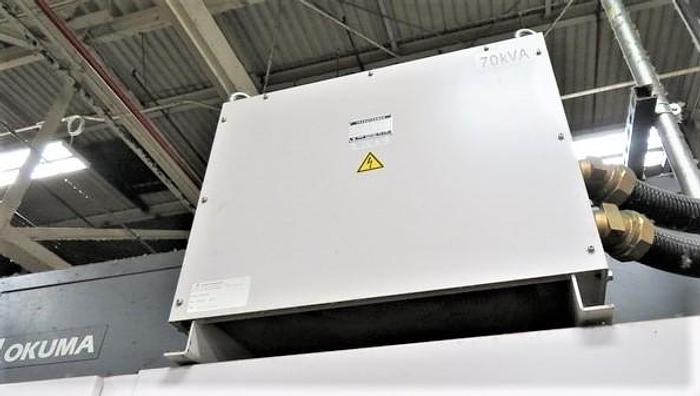

Air Blower, FP coolant, Chip Conveyor, Transformer.

Color Display, Helical cutting, machine management, change work coordinates, tool breakage detection,

Any angle chamfer, probe software, work coordinate 100, hi cut pro, comp variables 200, synchronized

Tapping, tool life management, graphic IMAP, gauging/zero, Hi G, tool data 200, and more

Specifications

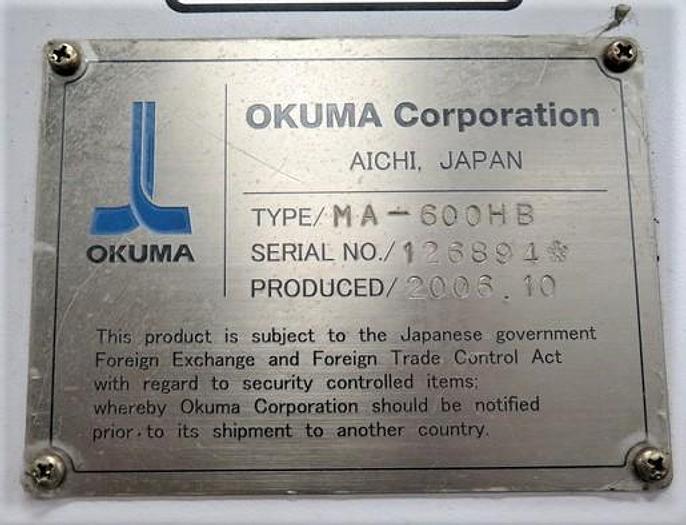

ManufacturerOKUMA
ModelMA600HB
Year2006
ConditionUsed
