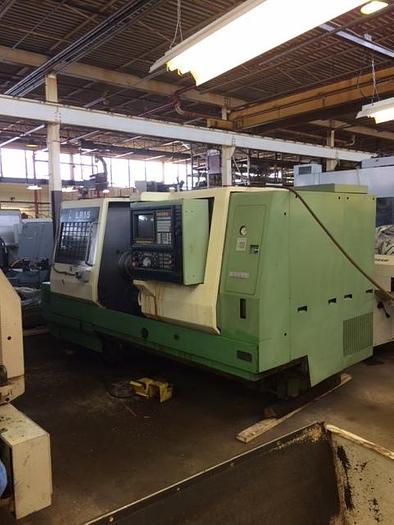

1992 Okuma LR-15

1992 Okuma LR-15 4 axis turning Center W/Tailstock

GENERAL SPECIFICATIONS:

SWING OVER BED................ 17.72"

SWING OVER SADDLE:............ 11.81"

CHUCK......................... 8" QUICK CHANGE

UPPER TURRET POSITIONS:....... 10

LOWER TURRET POSITIONS:....... 8

MAX.TURNING LENGTH:........... 23.62"

RAPID TRAVERSE X AXIS......... 472 IPM

RAPID TRAVERSE Z AXIS......... 591 IPM

HOLE THROUGH SPINDLE.......... 2.44"

SPINDLE NOSE.................. A2-6

SPINDLE SPEEDS................ 75 ~ 4,200 RPM

MAIN MOTOR.................... 25 HP

EQUIPPED WITH:

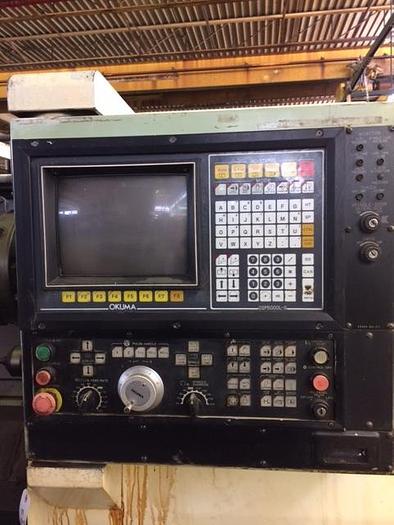

OKUMA MODEL OSP 5020 CONTROL

8" Chuck

Tailstock

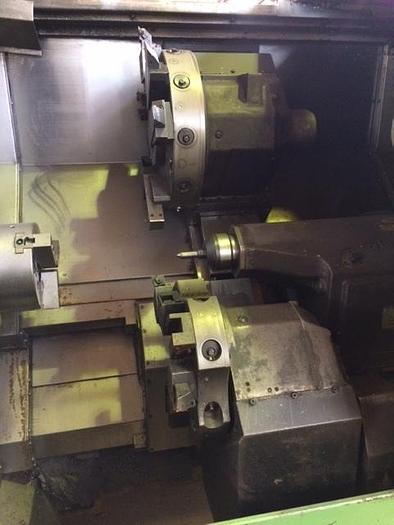

TWIN TURRETS
