2009 MORI SEIKI NT1000WZ

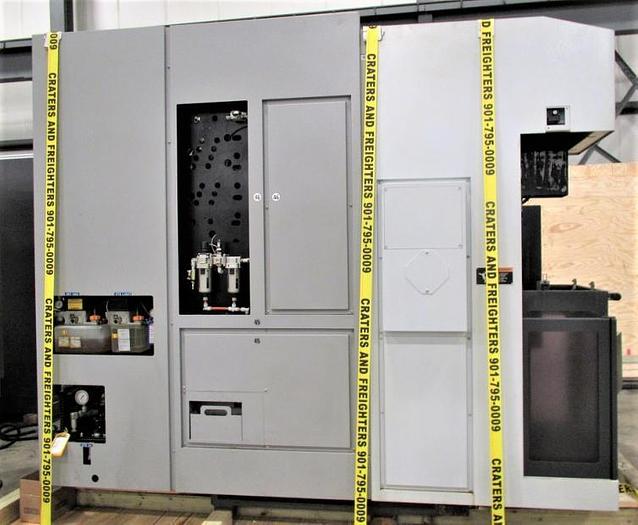

MORI SEIKI NT1000WZ MULTIAXIS CNC TURN MILL CENTER NEW 2009

Specifications

MAX WORK PIECE SWING 14.57”

SWING OVER CROSS SLIDE 14.57”

SWING OVER CROSS SLIDE, TURRET 2 11.81”

MAX TURNING DIAMETER, TOOL SPINDLE 14.57”

MAX TURN DIA, TOOL SPINDLE/TURRET 2 10.63”

MAX TURNING LENGTH 16.69”

BAR WORK CAPACITY 2.05”

TRAVELS:

X1-AXIS, TOOL SPINDLE 14.96”

Y-AXIS, TOOL SPINDLE +4.13”

Z1-AXIS, TOOL SPINDLE 18.11” + 6.10” (ATC TRAVEL)

B-AXIS, TOOL SPINDLE +120 DEGREES

X2-AXIS, TURRET 2 6.10”

Z2-AXIS, TURRET 2 24.01”

C-AXIS .001 DEGREES

MAIN SPINDLE:

SPINDLE SPEED 6,000 RPM

NUMBER OF SPINDLE SPEEDS, STEP 2, WOUND ROTOR

SPINDLE NOSE TYPE JIS A2-5

THROUGH SPINDLE HOLE DIAMETER 2.4”

MINIMUM SPINDLE INDEXING ANGLE 0.0001 DEGREES

SPINDLE BEARING INSIDE DIAMETER 3.94”

B-AXIS MILLING SPINDLE, TURRET ONE:

NUMBER OF TOOLS ON HEAD 1

MINIMUM B-AXIS INDEXING ANGLE 0.0001 DEGREES

MAXIMUM TOOL SPINDLE SPEED 20,000 RPM

SPINDLE SPEED, STEP ONE 1,800–5,000 RPM

SPINDLE SPEED, STEP TWO 5,000–18,000 RPM

SPINDLE SPEED, STEP ONE 18,000–20,000 RPM

INSIDE DIA., TOOL SPINDLE BEARING 2.56”

AUTOMATIC TOOL CHANGER:

NUMBER OF TOOL POSITIONS 38

MAXIMUM TOOL DIAMETER 2.76”

MAXIMUM TOOL DIAMETER, NO ADJACENT 5.12”

MAXIMUM TOOL WEIGHT 11 LBS

LOWER TURRET, TURRET 2:

NUMBER OF TOOLS 8

SQUARE SHANK HEIGHT OF SGL POINT TOOL . 79”/20 MM

SHANK DIAMETER OF BORING BAR 1.26” / 32 MM

MOTORS:

SPINDLE DRIVE MOTOR, 30 MIN/CONT. 15 HP/10 HP

TOOL SPINDLE MOTOR, 40%/CONT. 7.5/5 HP 1,800 – 18,000 RPM)

TOOL SPINDLE MOTOR, 40%/CONT. 5/3 HP 18,000–20,000 RPM)

MACHINE WEIGHT 18,700 LBS

Equipped With

CNC CONTROL:

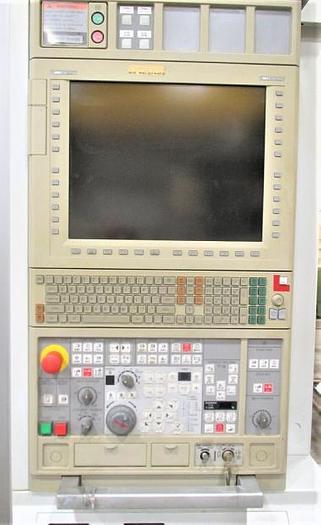

FANUC MSX-711IV MAPPS-III CNC CONTROL

5 SETS M-CODES

PROGRAMMING RESOLUTION BY 1/10

EQUIPPED WITH:

MICROCENTRIC CB65 HYDRAULIC CHUCK

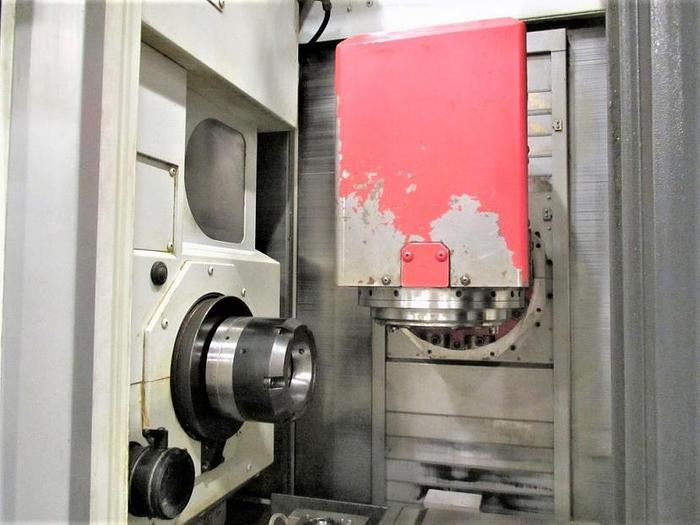

FULL CONTOURING B-AXIS MILLING SPINDLE

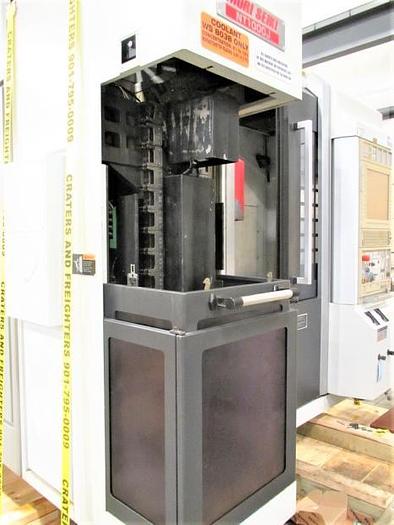

36-POSITION AUTOMATIC TOOL CHANGER

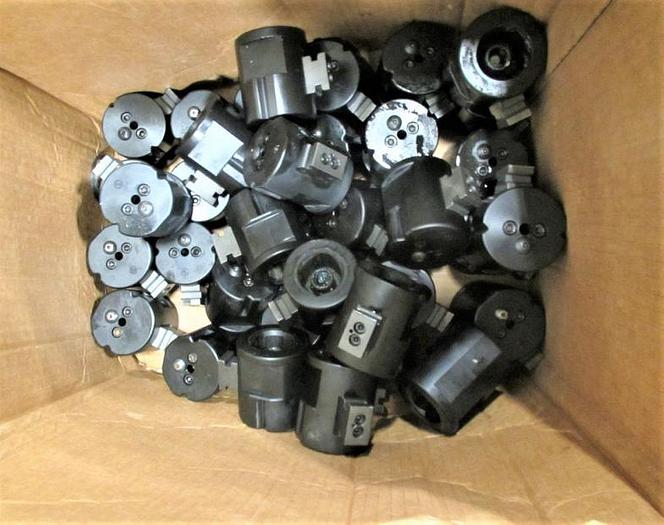

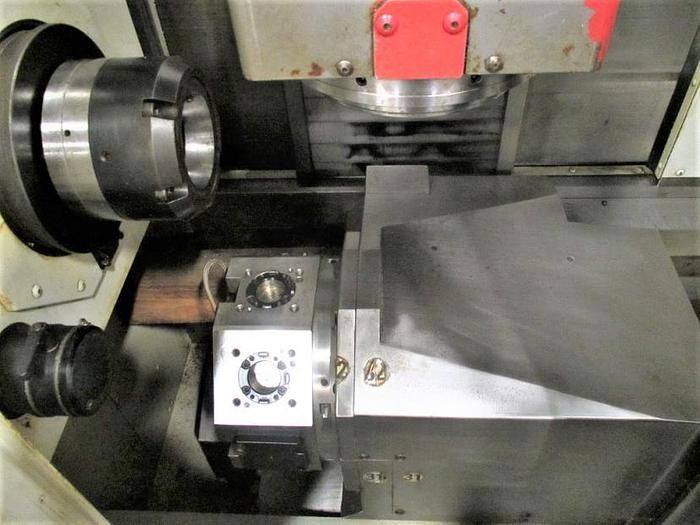

8-POSITION LOWER TURRET WITH 200MM EXTENDED TRAVEL

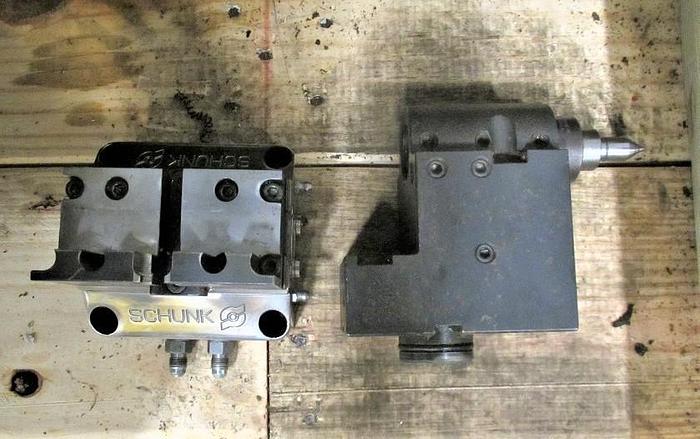

TAILSTOCK FOR LOWER TURRET

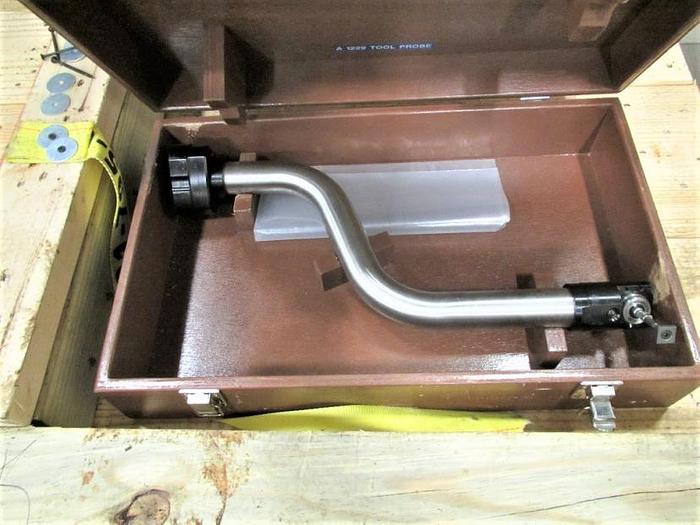

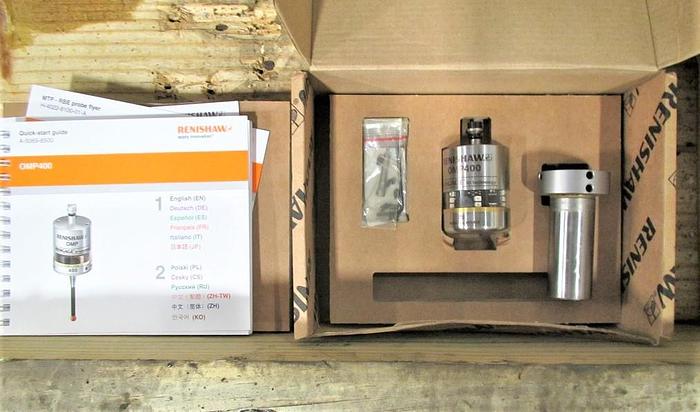

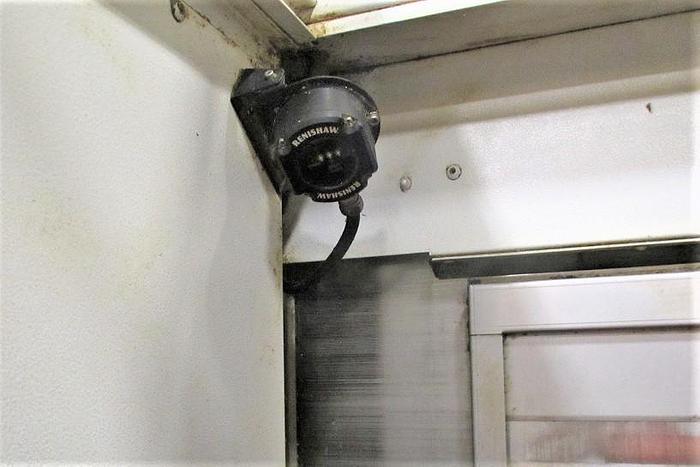

RENISHAW PROBE SYSTEM

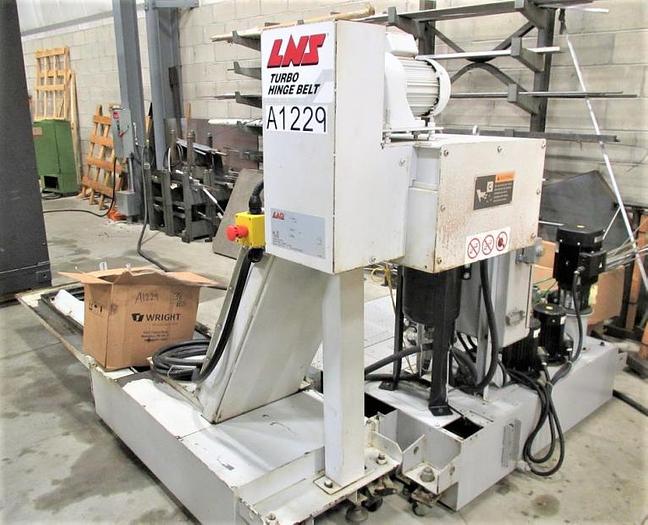

HINGE BELT CHIP CONVEYOR, RIGHT SIDE

150 PSI THROUGH SPINDLE COOLANT

COOLANT FILTRATION SYSTEM

HYDRAULICS THROUGH TURRET I/F
