2019 YC YCWJ-L3015

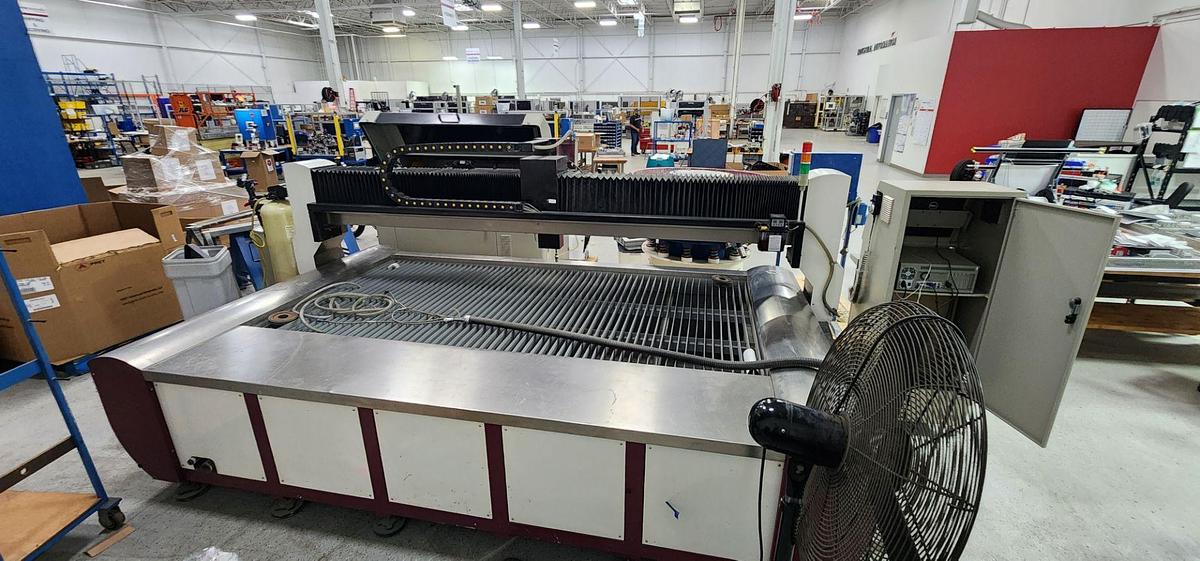

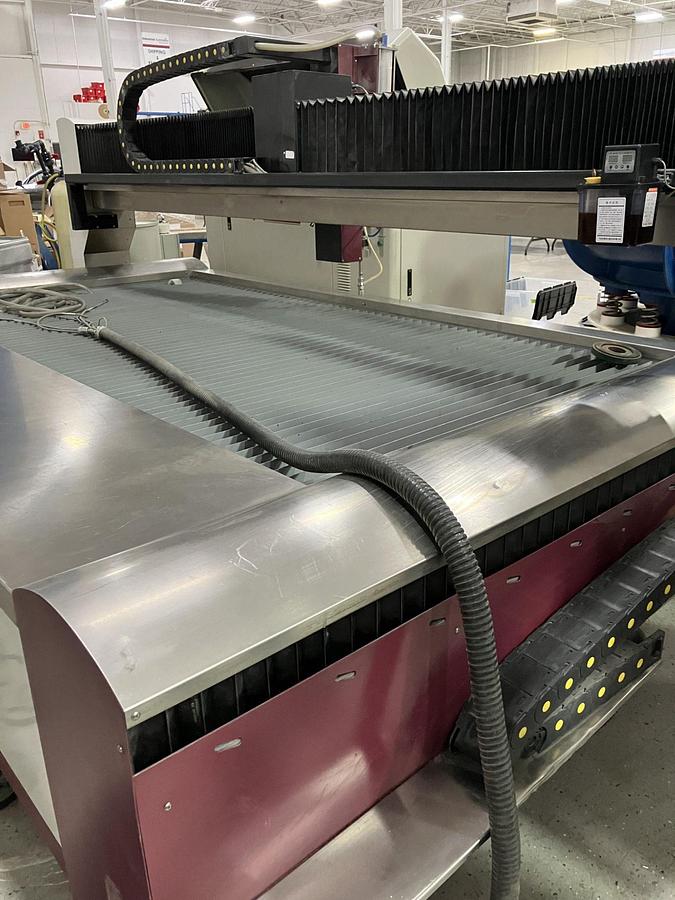

2019 YC CNC Water Jet Cutting Machine( Gantry type).

This is a brand new machine. Year is 2019. Never used. Under Power in Livonia Michigan USA

Model- YCWJ-L3015. Made in China, Lots of USA components.

Cutting area 120 X 60

Axis travel

X  120"

Y  60"

Z 5.9"- 7.08"

Dynamic 5 axis cutting head X,Y,Z axis for transmission A,B axis for compensation 0°-±10°

X axis and Y axis adopt HIWIN or I+F ball screw and guideway; The servo motor to drive we adopt MITSUBISHI or Yaskawa

Cutting accuracy mm +/-0.1

Positioning accuracy mm +/-0.02

X,Y dry-run speed m/min 0-15 (if need 30m/min speed,we can do as request ) Cutting speed m/min as to detail material and thickness

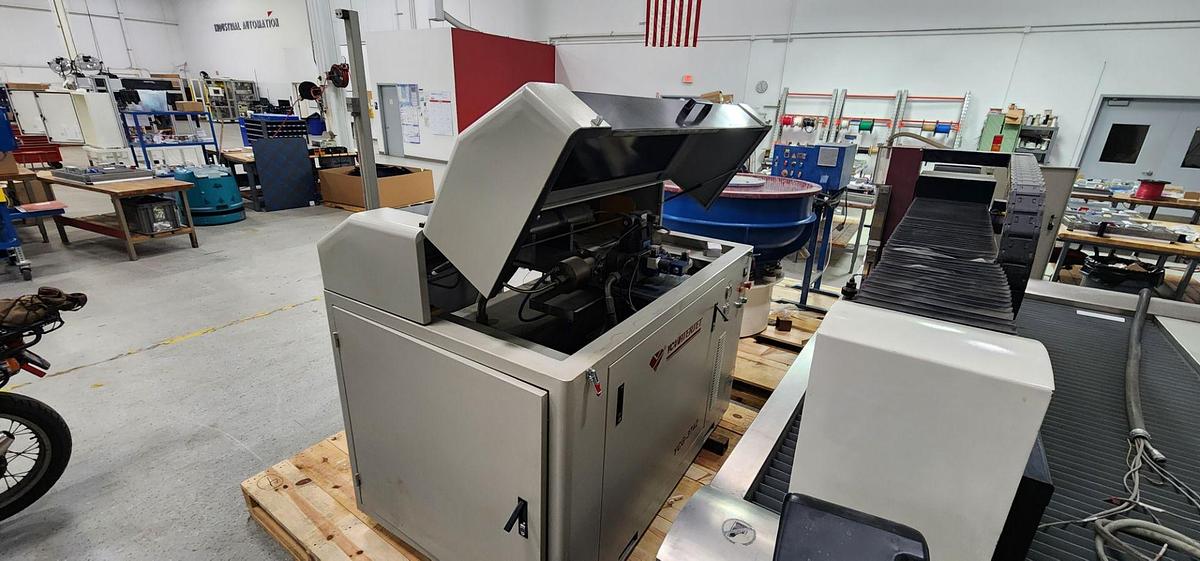

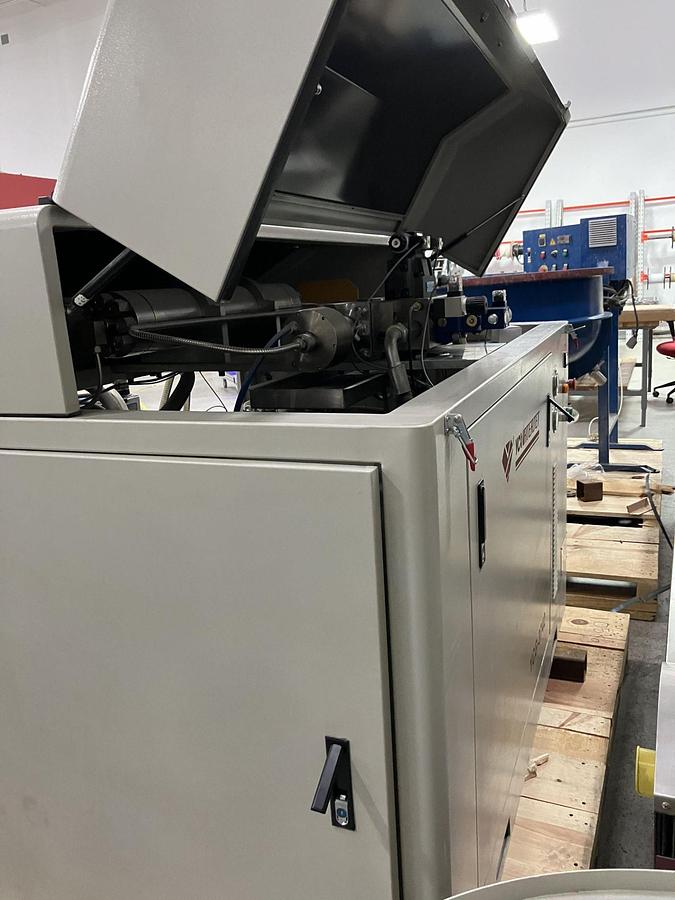

High Pressure Pump

Main Features:

Control: PLC

Shifting: electro-hydraulic

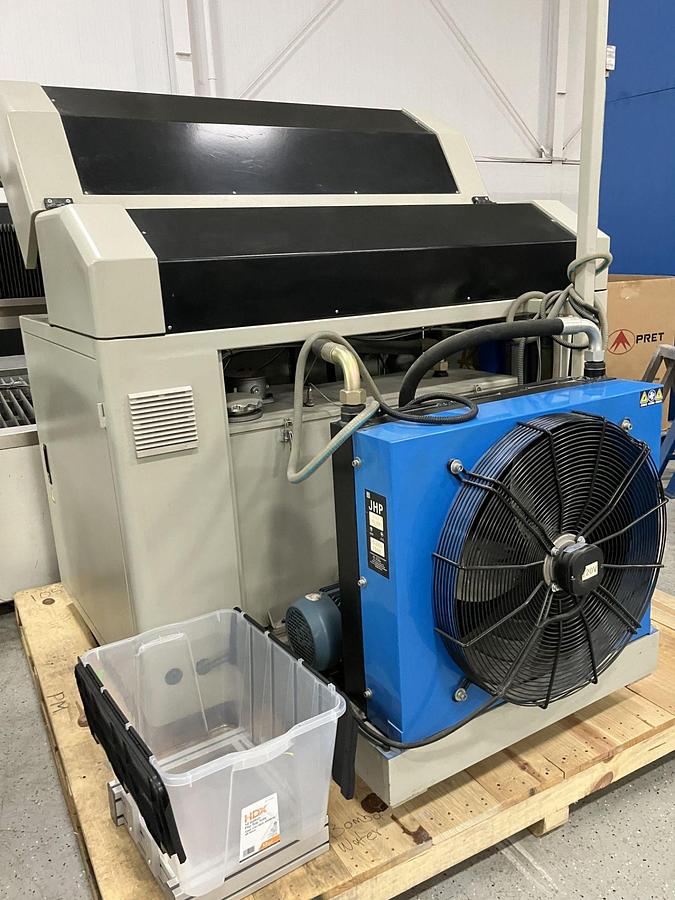

Control Cooling: cooler/oil heat exchanger Inlet water filter accuracy: ≤0.45μm Oil-return filter accuracy: 20 μm Working temp: 0-50°c

Outlet: UNF 3/8" Cooling in/out-let: NPT1"

Max orifice size: 0.33mm

YC Waterjet cooperates with Accsutream/Hypertherm since 2008, most parts for the high pressure pumps are from the USA.

High Pressure Pump Model YCG-3742S

Max Pressure 4137Bar/60,000Psi

Max Water Flow 3.7L/min

Max Orifice/Nozzle 0.013/0.04

Power 37KW/50HP

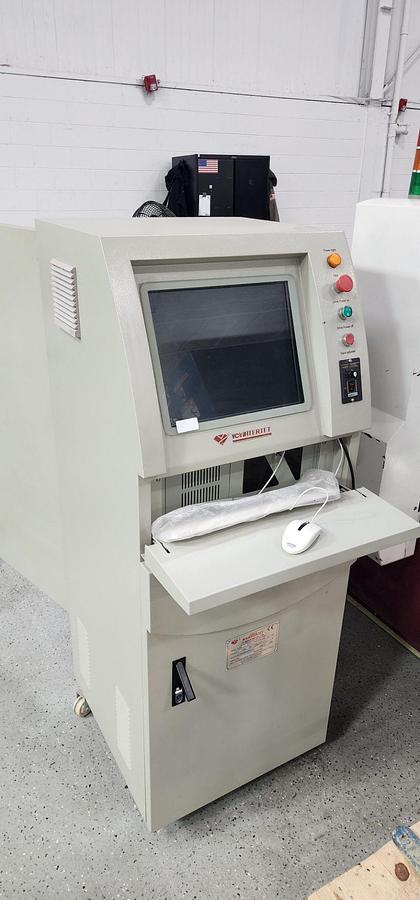

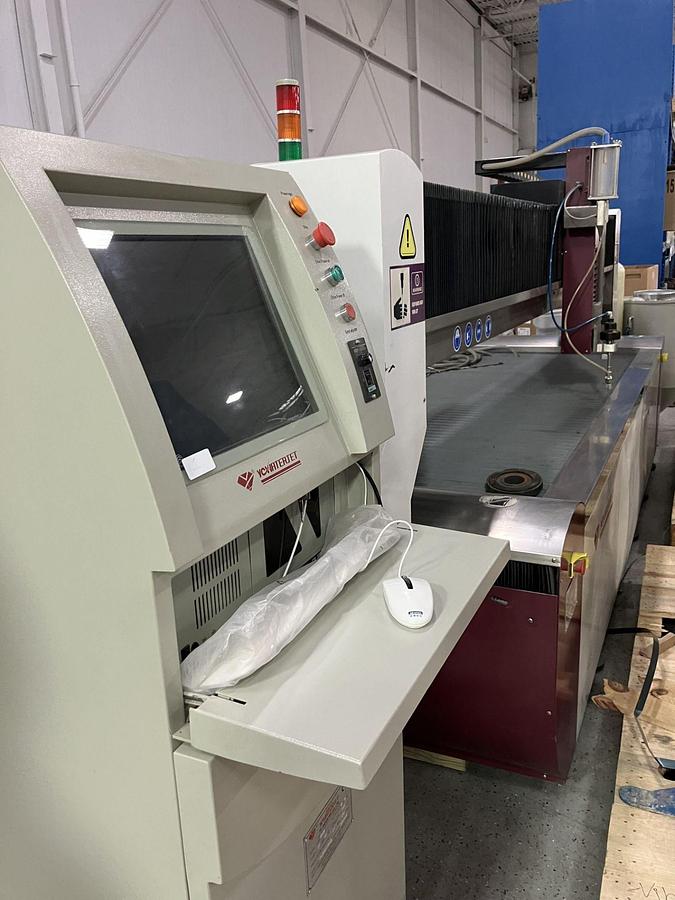

CNC Controller:

1. 17"LCD liquid crystal display.

2. DNC on-line working function.

3. Functions of returningarbitrary point,bending and circular are working auto deceleration.

4. Function of cutting figure imitation display.

5. 80GB memory hard disk.

6.  MITSUBISHI AC servo driver and motor.

7. 1GB memory card.

8.  Multilingual function(Chinese English etc.).

9.  Drive-by-wire and hand-hold controller.

10. NAIKY PCIMC-6A special software is special for YC.
