2014 OKUMA GENOS M560-V

2014 OKUMA GENOS M560-V

Contact us for price

Livonia, MI

Contact Us

orCall 732-367-4130

Description

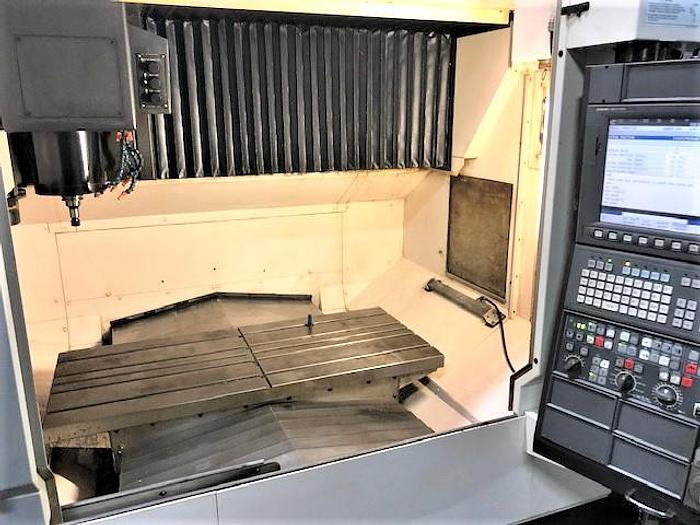

OKUMA GENOS M560-V 4-AXIS CNC VERICAL MACHINING CENTER 2014

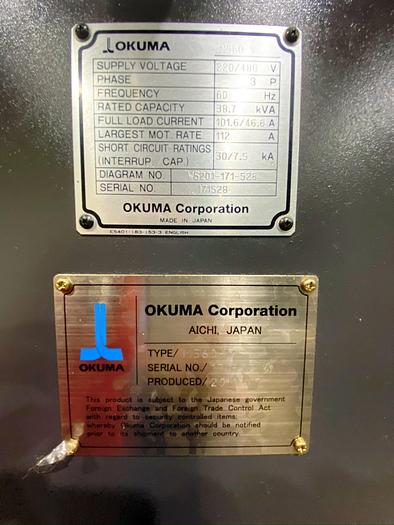

Serial Number 171528


Specifications

The 15,000 rpm spindle is very robust for exotic materials in the sense that if needed you have the rpm for high speed machining type applications with lighter cuts and faster feeds, or for heavier roughing cuts it provides ample torque and a very good duty rating of 10 mins constant while in the cut.

The M560 really shines on heavier cuts due to the machine design – this is not a typical “C” frame Vertical, this is what separates it from the rest of the pack - it is designed with a double column structure allowing the “X” axis to travel on the column and NOT reside on top of the “Y” axis like most builders out there. This design gives the M560 the ultimate in rigidity.


Specifications:

TABLE SIZE .................................. 22.05" X 51.18"

MAX TABLE LOAD CAPACITY ..................... 1,980 LBS

X-AXIS TRAVEL ............................... 41.34"

Y-AXIS TRAVEL ............................... 22.05"

Z-AXIS TRAVEL ............................... 18.11"

SPINDLE TO TABLE ............................ 5.9" ~ 24.02"

RAPID TRAVERSE X/Y/Z ........................ 1575/1262 IPM

SPINDLE SPEEDS .............................. 15000 RPM

SPINDLE MOTOR ............................... 30 HP

MAGAZINE CAPACITY ........................... 32 TOOLS

TOOL CHANGER TIME ........................... 1.2 SEC.

SPINDLE TAPER ............................... CAT-40 BIG PLUS

MACHINE DIMENSIONS ............... 99.21" W X 122" L X 108.11" T

MACHINE WEIGHT .............................. 16,940 LBS



Equipped With

OKUMA OSP P300M Control

Helical Cutting

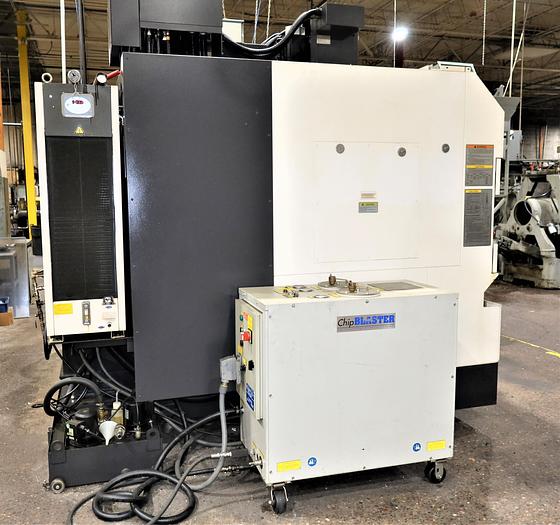

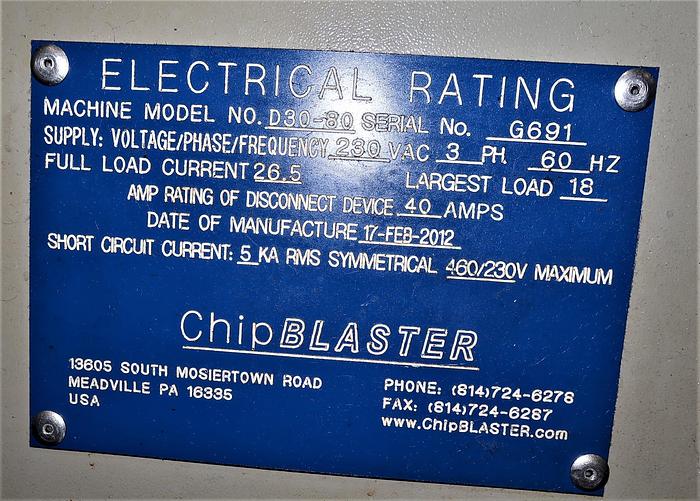

COOLBLAST 1000 PSI High Pressure Pump

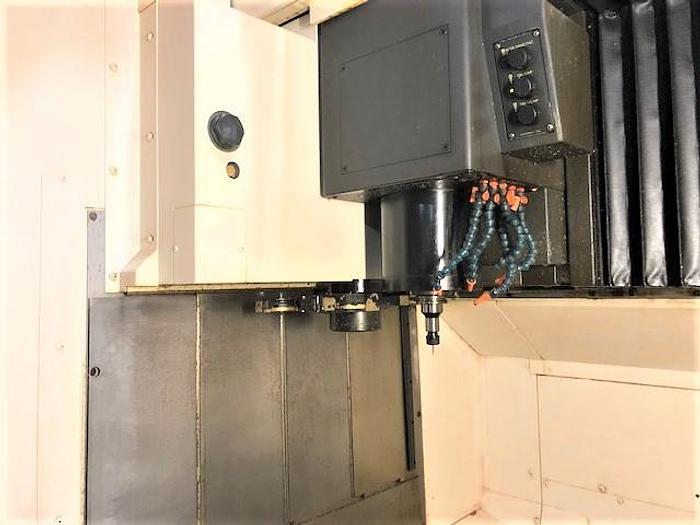

Thru Spindle Coolant

Chip Conveyor

25/30 HP Main Motor

Big Plus 40 taper spindle

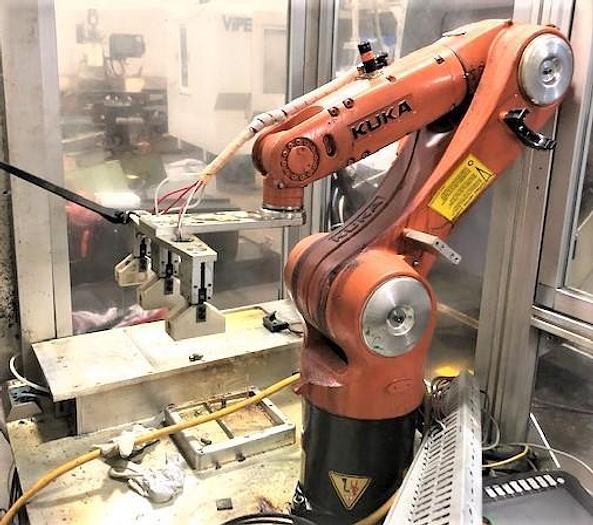

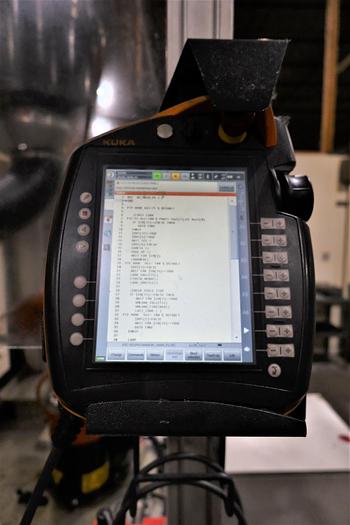

KUKA LOAD UNLOAD INTEGRATED ROBOT

NO FIXTURE, NO INDEX TABLE

Specifications

ManufacturerOKUMA
ModelGENOS M560-V
Year2014
ConditionUsed
