2011 MAZAK INTEGREX 200 IV

2011 MAZAK INTEGREX 200 IV

Contact us for price

Livonia, MI

Contact Us

orCall 732-367-4130

Description

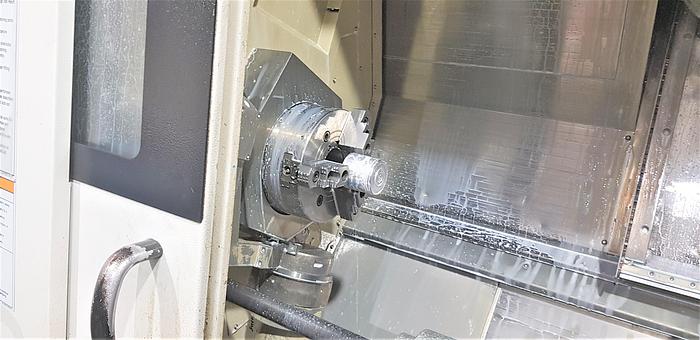

MAZAK INTEGREX 200 IV S 5-AXIS CNC TURNING CENTER LATHE NEW 2011


Specifications

Mazak lntegrex-200-IV-S

Made in Japan


Standard specifications


Specifications

Capacity:

Max. Swing 658 mm

Max. Machining dia (Upper turret) 658 mm

Max. Machining dia (Lower turret) 420 mm

Max. Machining length 1077 mm

Max. Bar work capacity (Main spindle) 65 mm

Max. Bar work capacity (Second spindle) 65 mm

Travel:

X-Axis travel 615 mm

Y-Axis travel 250 mm

Z-Axis travel 1077 mm

B-Axis travel 30 deg - 210 deg

Main Spindle:

Chuck size 8"

Main Spindle speed 5000 RPM

Main Spindle nose/main spindle bore A2-6/76 mm

Bearing ID 120 mm

Minimum main spindle 0.0001 deg

Second Spindle:

Second spindle speed 5000 RPM

Second spindle travel (W-Axis) 1539 mm

Second spindle nose/Second spindle Bore A2-6/76 mm

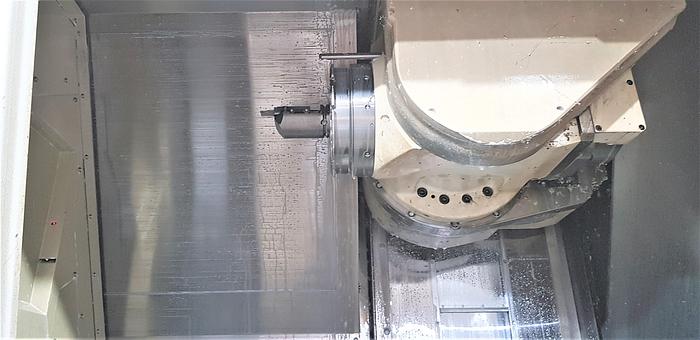

Milling Spindle:

Milling spindle type Single spindle turret

w/ATC

Milling spindle speed 1200 RPM

Max. Milling spindle torque 120 Nm

Tool shank height 25 mm

Boring bar shank diameter 40 mm

Minimum milling spindle indexing increment 0.0001 deg


Automatic Tool:

Tool shank km 63

Changer system:

Tool storage capacity 40 tools

Max. Tool dia/length (from gauge line) 90 mm (when adj.

pocket empty) 125

mm/400 mm

Max. tool weight 12 kg

Tool selection method shortest path

Motors:

Spindle motor (30 min. rating, 40% Ed/cont. rating) 22 kW/15 kW

Second spindle motor (30 min. rating,40% ED/cont.) 18.5 kW/15 kW

Milling spindle motor (30 min. rating,40% ED/cont.) 22 kW/15 kW

Power Requirement:

Required power capacity (cont. rating) 71.33 kVA

Air source 0.5 MPA,150 L/min

Coolant Tank Capacity 510 L

Machine size:

Machine height 2720 mm

Floor space requirement 4910 mm x 2800 mm

Machine weight 16,600 kg



Equipped With

Standard equipment

15" COLOR LCD

1ST SPINDLE MOTOR AC 22KW(30HP)

1ST SPINDLE SPEED 5000 RPM

20 CAPTO-TOOL MAGAZINE (REQUIRED TOOL)

20 KM-TOOL MAGAZINE

20 MAS-TOOL MAGAZINE (REQUIRED TOOL)

2ND SPINDLE POSITION 0.001DEG.W/O C-AXIS

3-D COORDINATE CONVERSION

5KG THRU CLNT/FLOOD CLNT SIMUL-FLOWABLE

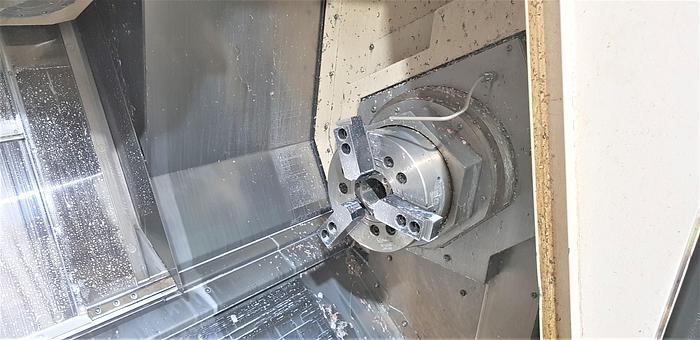

8" THRU-HOLE CHUCK B-208A615 (1ST SPD.)

8" THRU-HOLE CHUCK B-208A615 (2ND SPNDL) ABSOLUTE POSITIONING SYS (LINEAR AXES) ACCURACY INSPECTION

ACTIVE VIBRATION CONTROL

ADD. EIA/ISO FUNCTIONS (REQ. EIA/ISO)

ADD. WORKPIECE COORDINATE SYS. 300-PAIRS AUTO CHUCK JAWS OPEN/CLOSE (1&2 SPINDLE) B)MAZACC-2D SOFTWARE(SHAPE COMPENSATION) B-AXIS 0.0001 DEG/CNTRING (REQ. EIA/ISO)

B-AXIS INDEX 5 DEGREE(COUPLING CLAMP) CARDBUS 1/F (2-SLOT)

C-AXIS 0.0001 DEGREE INCR.(1ST SPINDLE) CHUCK AIR BLAST (SECOND SPINDLE)


CHUCK OPEN/CLOSE CONFIRM. (1&2 SPINDLE) COMPLETE COOLANT SYSTEM

COOLANT THROUGH MILLING HEAD DIRECT ENTRY OF DRAWINGS DIMENSIONS

EIA 1ST SPDL & MILL SPDL SIMUL ROTATION EIA PATTERN CYCLE (GRID, ARC)

EINISO CODE INPUT FUNCTION (STANDARD) FOUNDATION KIT(PLATES)

FULL COVERAGE CHIP AND COOLANT GUARD IC MEMORY CARD INTERFACE

INTELLIGENT SAFETY SHIELD INTELLIGENT THERMAL SHIELD INVERSE TIME FEED

KM STANDARD TOOLING PACKAGE LAN PORT

MAZAK TAPPING/BORING TORNADO (EINISO) MAZAK VOICE ADVISER

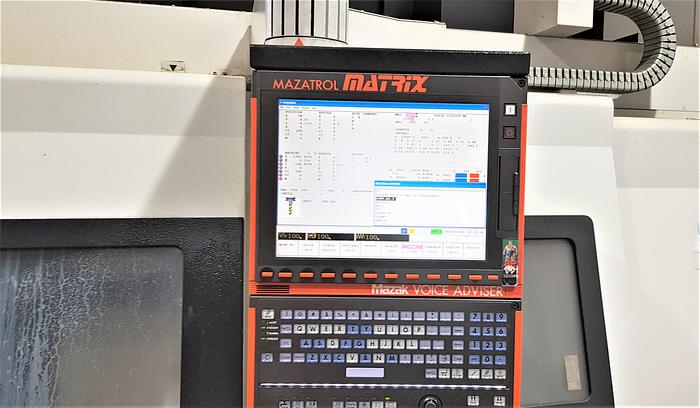

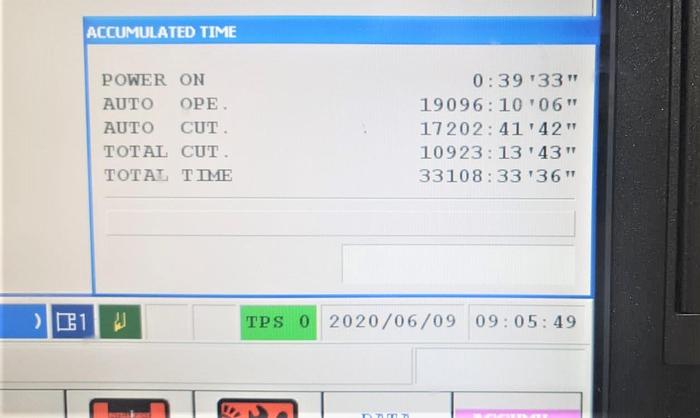

MAZATROL MATRIX CONTROL

NAME PLATE RELOCATION DETECTOR ONE SET OF ADJUSTING TOOLS

ONE SET OF MANUALS

OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH POLAR COORDINATES INPUT (G122)

POWER TRANSFORMER RELOCATION DETECTOR

ROTARY-TOOL SPINDLE SPEED 12000 RPM SECOND SPINDLE MOTOR AC18.5KW(25HP) SECOND SPINDLE SPEED 5000 RPM

SEQUENCE NUMBER COMPARISON STOP FUNCTION THE SAFETY MEASURES ON WORLDWIDE LEVEL THREAD CUTTING FUNCTION

USB 1/F

USER MACRO (COMMON VARIABLES:600 PAIRS) VIRTUAL MACHINING

WORK LIGHT

X,Y,Z PITCH ERROR COMPENSATIO


Additional equipment - included in the total package price

15KG THRU CLNT/FLOOD CLNT SIMUL-FLOWABLE

2ND SPINDLE C-AX. FACT.INSTALLATION ONLY

40 KM-TOOL MAGAZINE

8" THRU-HOLECHUCK BB-08 (1ST SPINDLE) A.P.C.(D:64 X L:120 X 2.5KG) W/EJECTOR B)CYLINDRICAL(G0?)&POLAR COORDINATE(G12)

B)MILLING-SPINDLE SYNCHRONOUS TAPPING B)SHAPE COMPENSATION FOR ROTARY AXES C1C2 SYNCHRONOUS FUNCTION

CHIP CONVEYOR SIDE DISPOSAL (HINGE TYPE) D)HIGH SMOOTHING CONTROL

D)MAZACC-3D HIGH-SPEED SOFTWARE PACKAGE DELETE STD. CHUCK & CYLINDER (1ST SPD.) DOUBLE FOOT SWITCH (1ST&2ND SPINDLE)

EIA DYNAMICY COMPENSATION I

F)EIA/ISO FUNCTION SIMULTANEOUS 5 AXES F)TOOL RADIUS COMPENSATION/ 5-AXIS F)TOOL TIP POINT CONTROL /SIMULT. 5 AXES

FLASH TOOL SYSTEM/OD40MM LONG W/O INSERT MAXIMUM PROGRAM SIZE : 8MB

ONE SET OF HARD JAWS FOR B-208 OVERLOAD DETECTION SYSTEM SIGNAL TOWER (3 COLORS LIGHTS) TOOL EYE

BARFEEDER INTERFACE KIT

RENISHAW NC4

Specifications

ManufacturerMAZAK
ModelINTEGREX 200 IV
Year2011
ConditionUsed
