2003 MAZAK Integrex 200-IIIS

The 2003 MAZAK Integrex 200-IIIS is a versatile CNC lathe renowned for its precision and advanced features, ideal for various complex machining tasks. This used machine incorporates a Mazatrol 640 MT Pro control system, enhancing its usability and efficiency. It features a 10" chuck, a substantial swing and turning diameter of 26", supplemented by an X-axis travel of 22.83", a Y-axis travel of 6.3", and a Z-axis travel of 41.14". Additionally, it has a B-axis tilt of 225° and a C-axis index with 0.001° precision. Equipped with a main spindle running at up to 5,000 RPM and a powerful 30 HP motor, the machine also offers a sub spindle, providing additional versatility with speeds up to 5,000 RPM and 25/20 HP. The model includes live tooling with a spindle speed of 12,000 RPM for intricate milling tasks, supported by a 25 HP milling spindle motor. The ATC capacity includes 40 stations, optimizing tool management for various operations. Essential features include a chip conveyor, a cohesive coolant system with a tank, coolant thru spindle capability, tool presetter, and spindle chillers. It's equipped with Kitagawa B210 on the main spindle and B208 on the sub spindle. The machine dimensions are 151" x 93" x 103", and it weighs approximately 21,120 pounds, making it a robust addition to any industrial setup.

Mazak Integrex 200-IIIS - Horizontal Lathe 2003

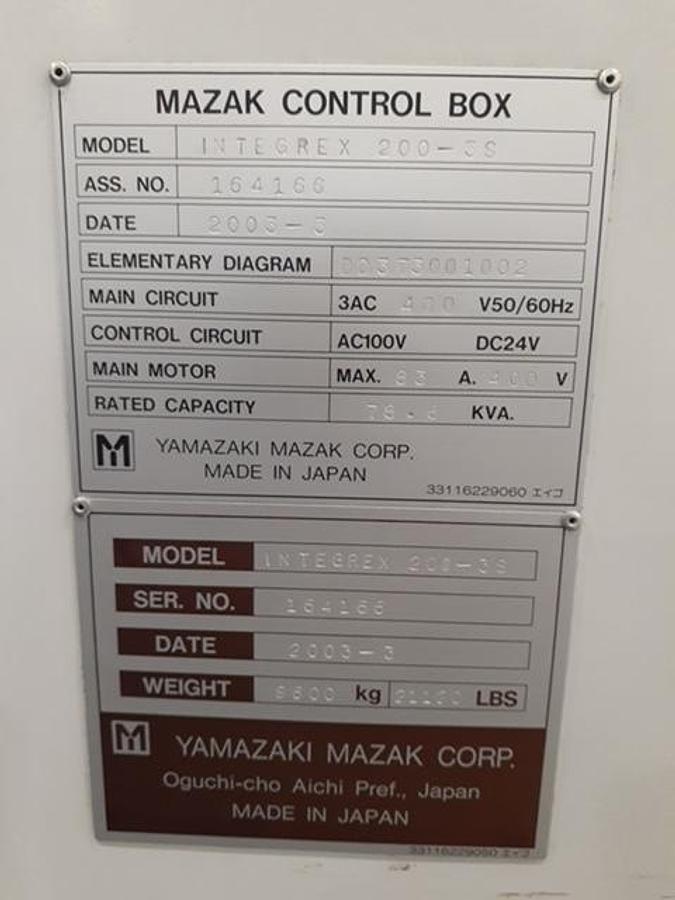

S/N 164166

Control Type

Mazatrol 640 MT Pro

Chuck Size

10"

Swing

26"

Turning Diameter

26"

Turning Diameter Lower Turret

10.6"

Center Distance

40"

X-Axis Travel

22.83"

Y Axis Travel

6.3"

Z-Axis Travel

41.14"

B Axis Head Tilt

225°

C Axis Index

0.001°

W Axis Travel

41.34"

Rapid Traverse (XZ/Y/W)

1,496/1,024/1,181 ipm

Spindle Nose

A2-6

Spindle Speed (RPM)

5,000

Main Motor

30 HP

Sub Spindle

yes

Sub Spindle Speed

5,000 RPM

Sub Spindle Motor (HP)

25/20 HP

Live Tooling

yes

Live Tooling Spindle Taper

KM63

Live Tooling Speed

12,000 RPM - Milling Spindle

Live Tooling Motor

25 HP

Tailstock

no

Y Axis

yes

ATC Capacity

40 stations

Dimensions

151" x 93" x 103"

Weight

21,120 pounds

EQUIPPED WITH:

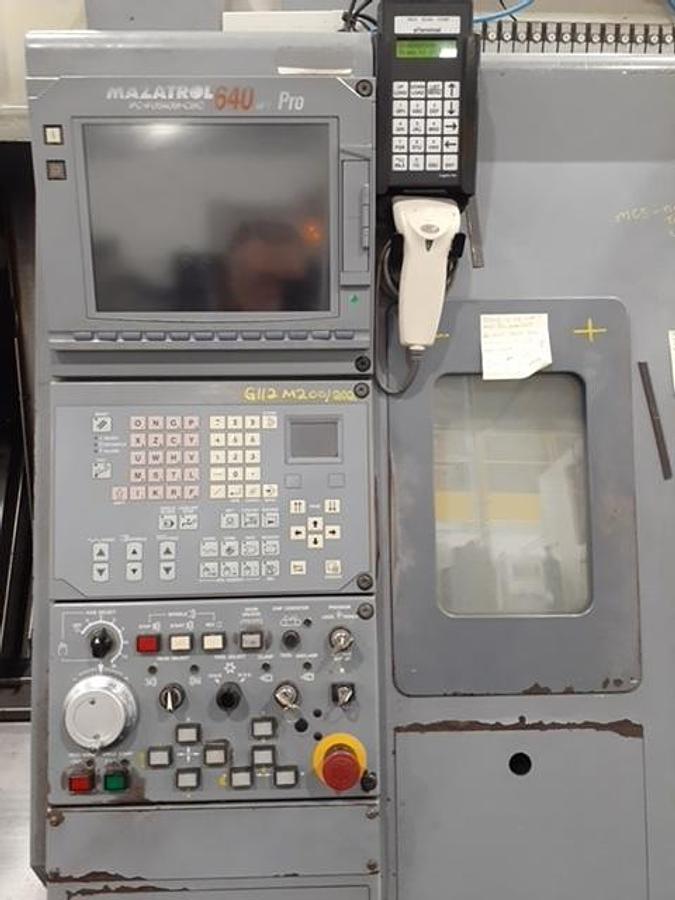

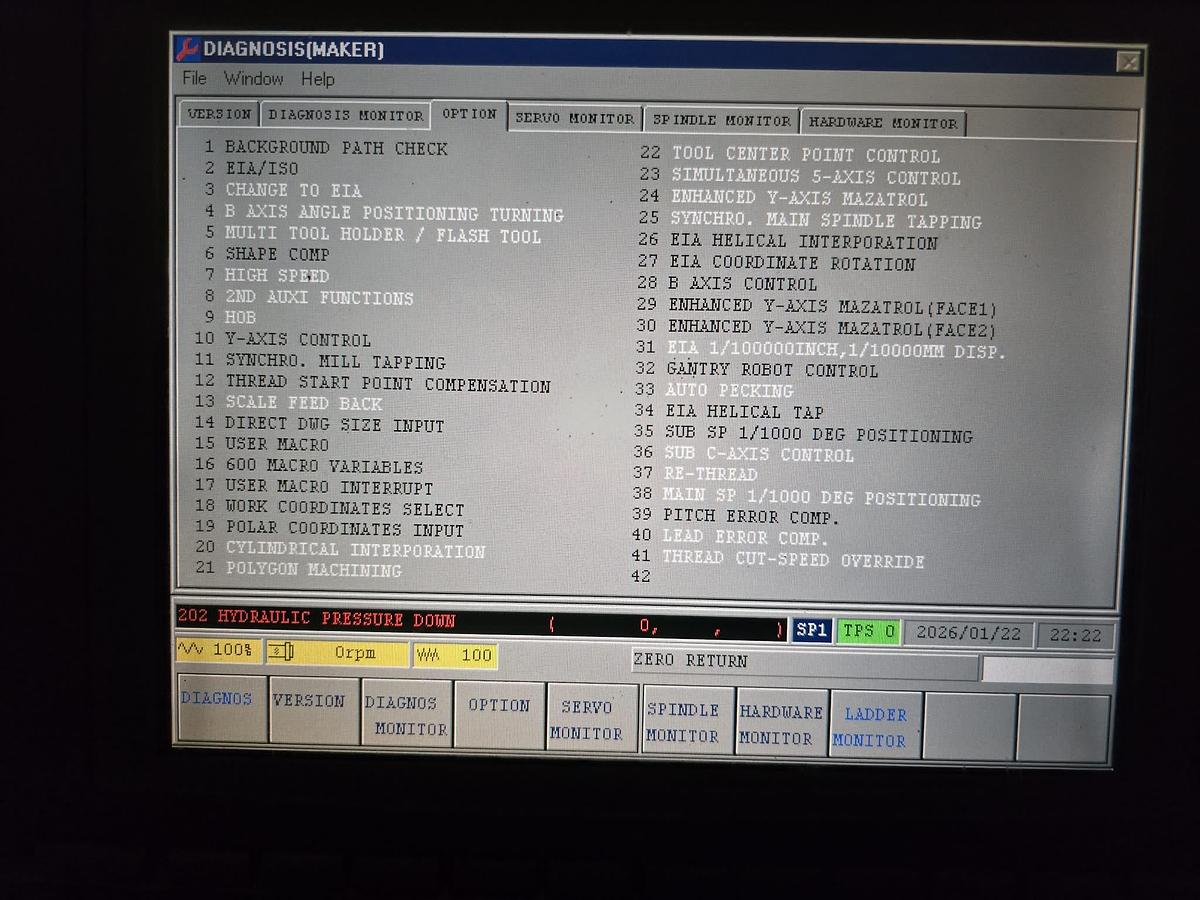

- Mazatrol 640MT Pro CNC Control

- Chip Conveyor

- Coolant Tank

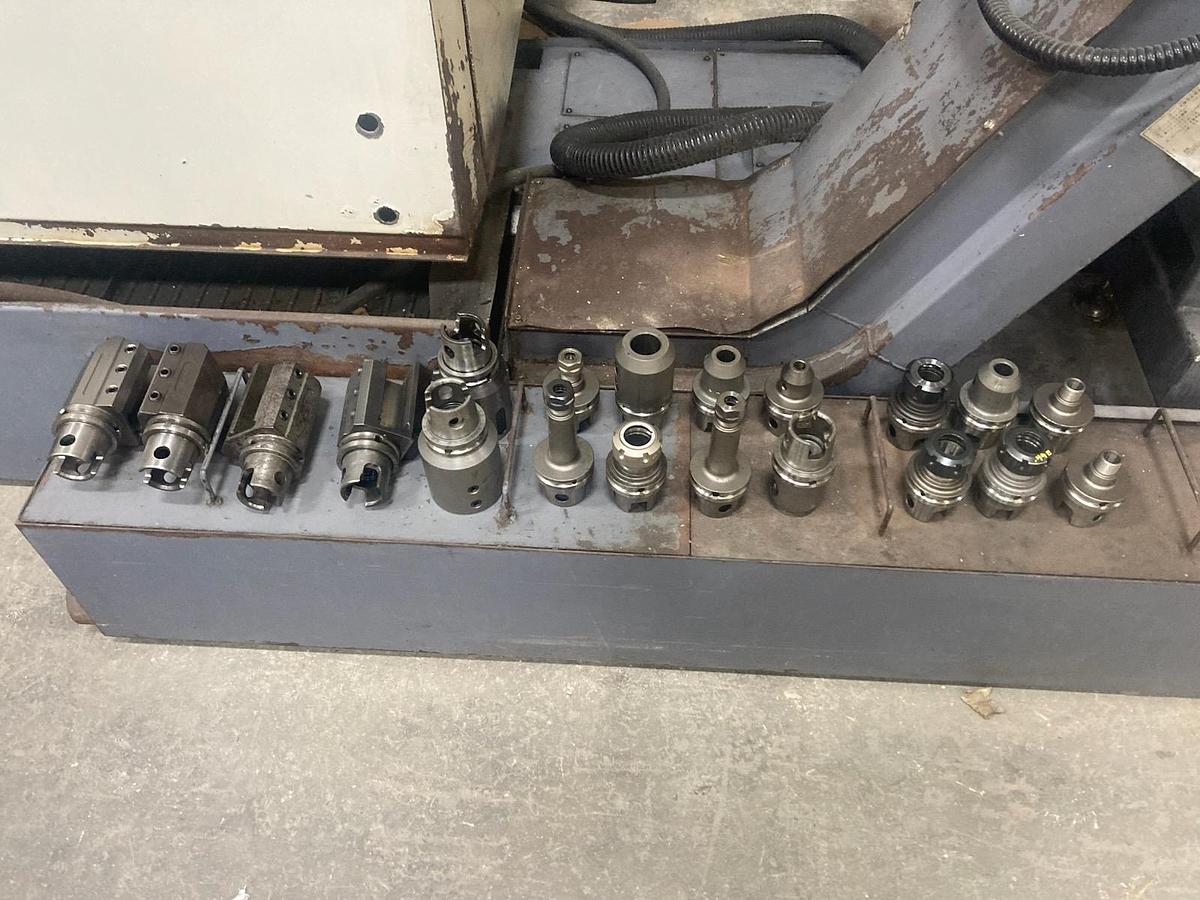

- Tool Presetter

- Coolant Thru Spindle

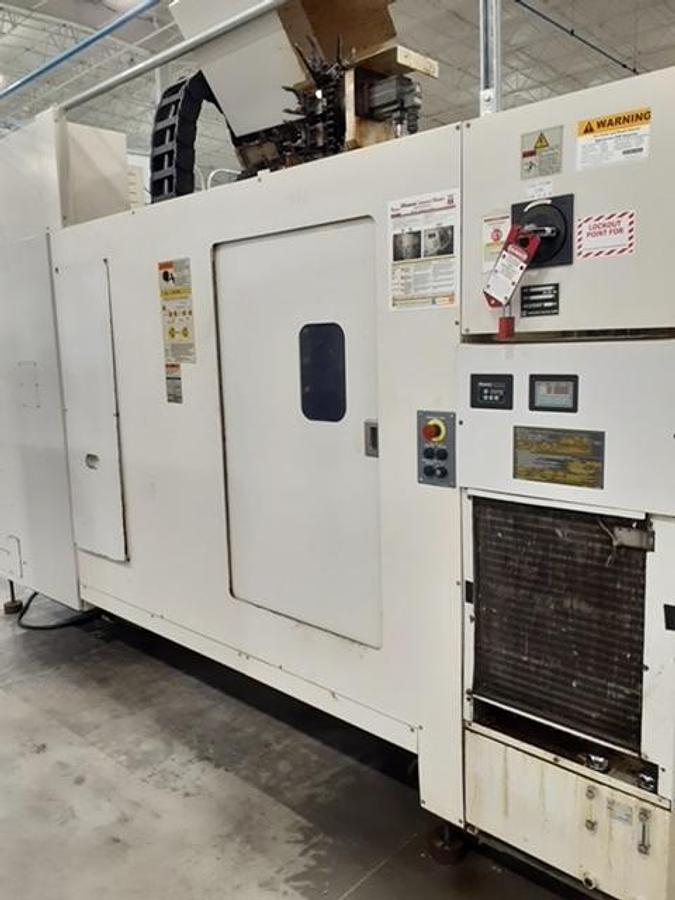

- Spindle Chillers

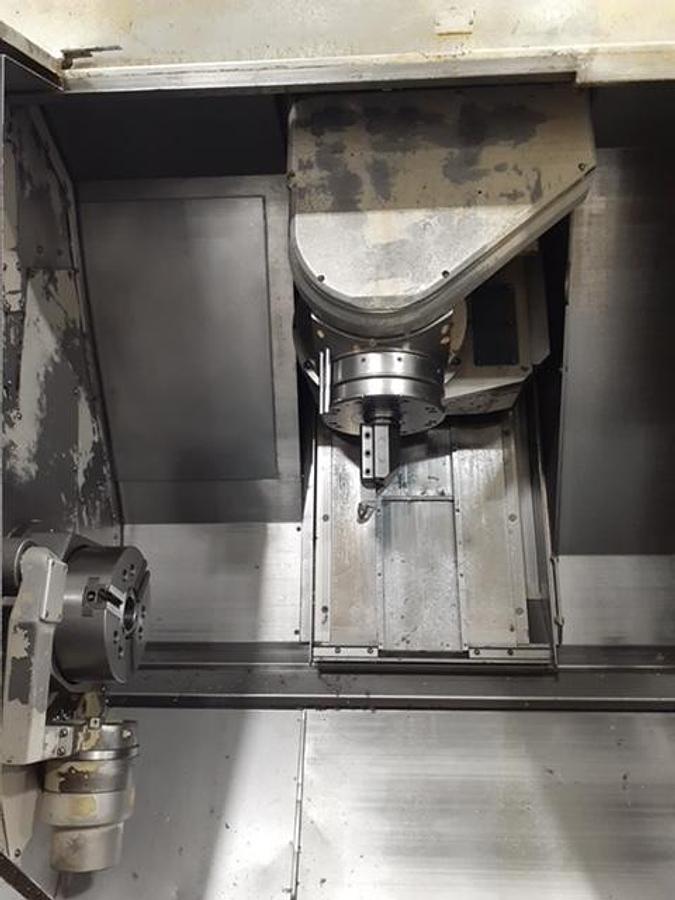

- Live Milling Spindle

- Sub Spindle

- Y Axis

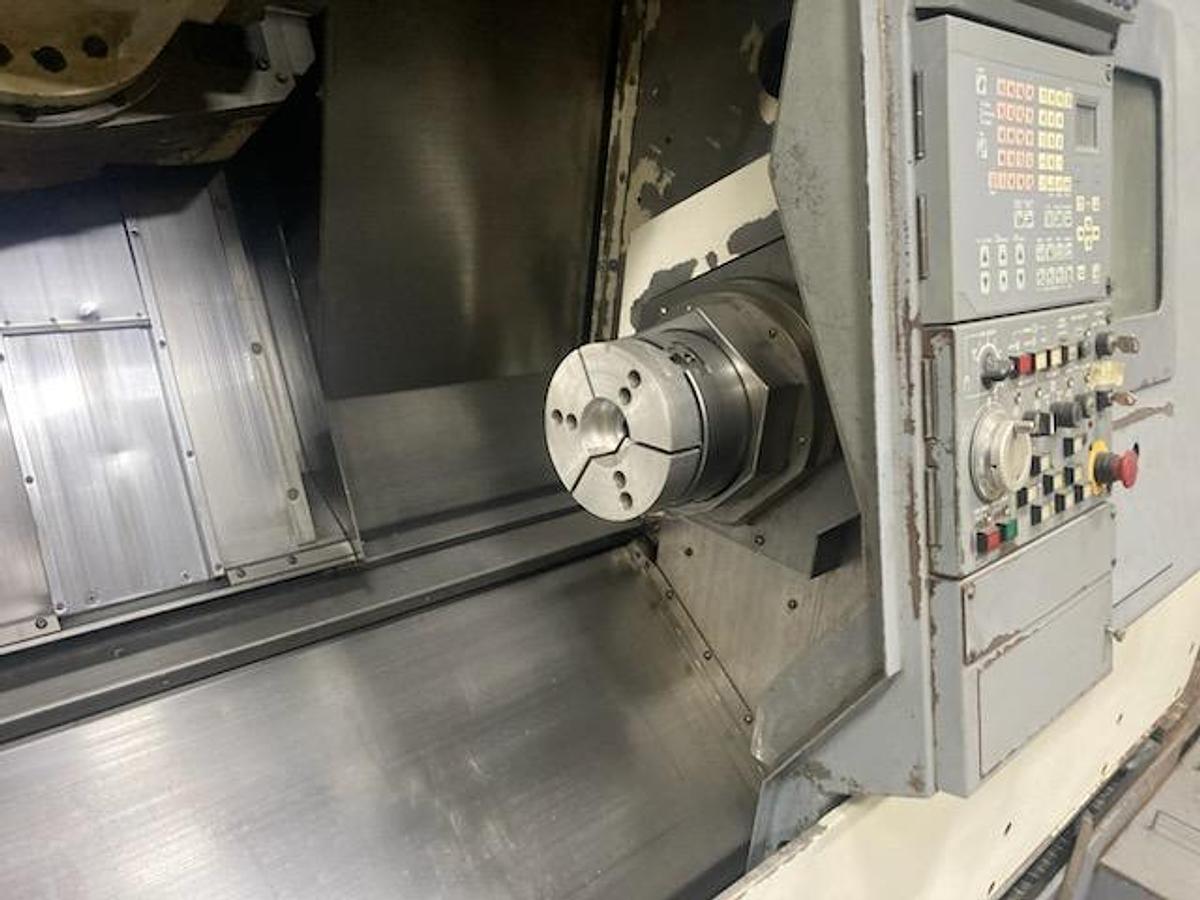

- Kitagawa B210 (main spindle)

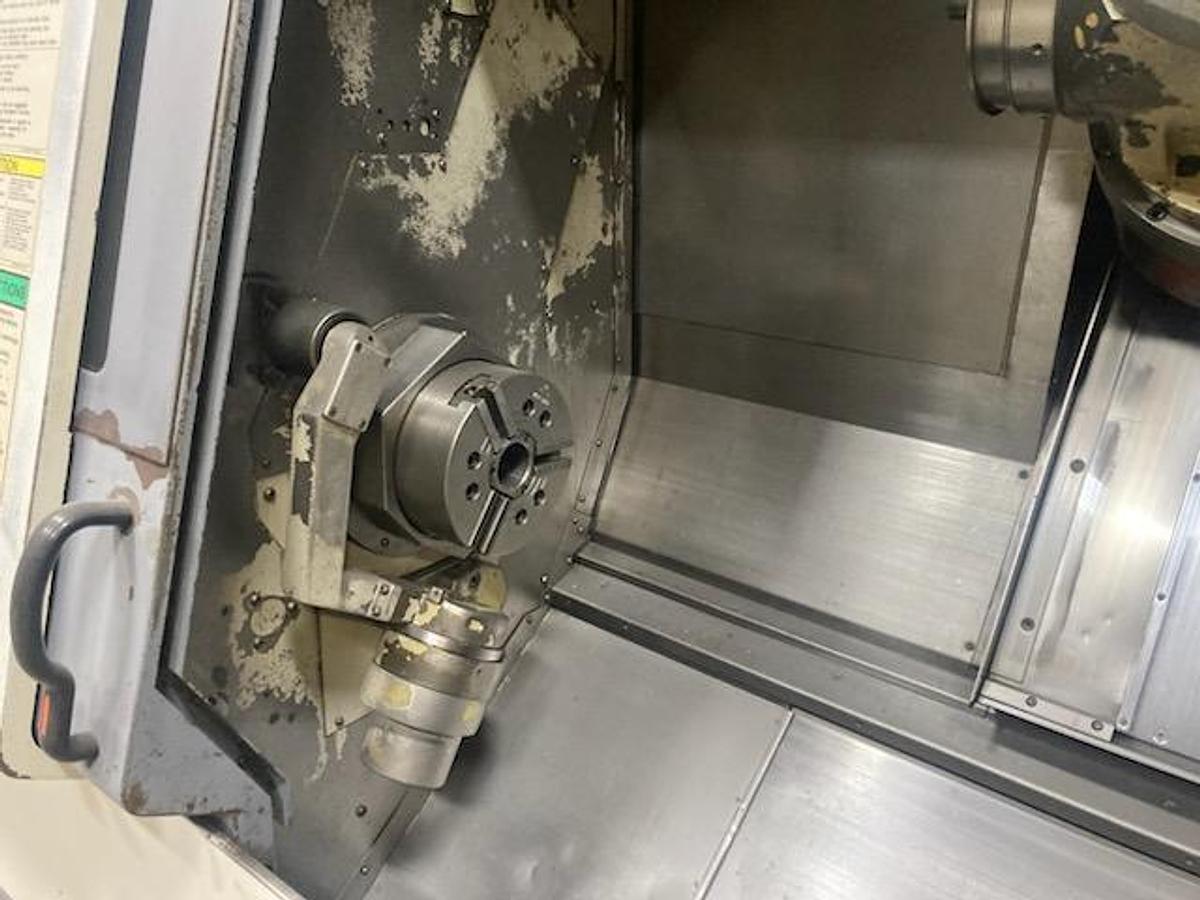

- Kitagawa B208 (sub spindle)
