1996 Bridgeport TORQ CUT 22

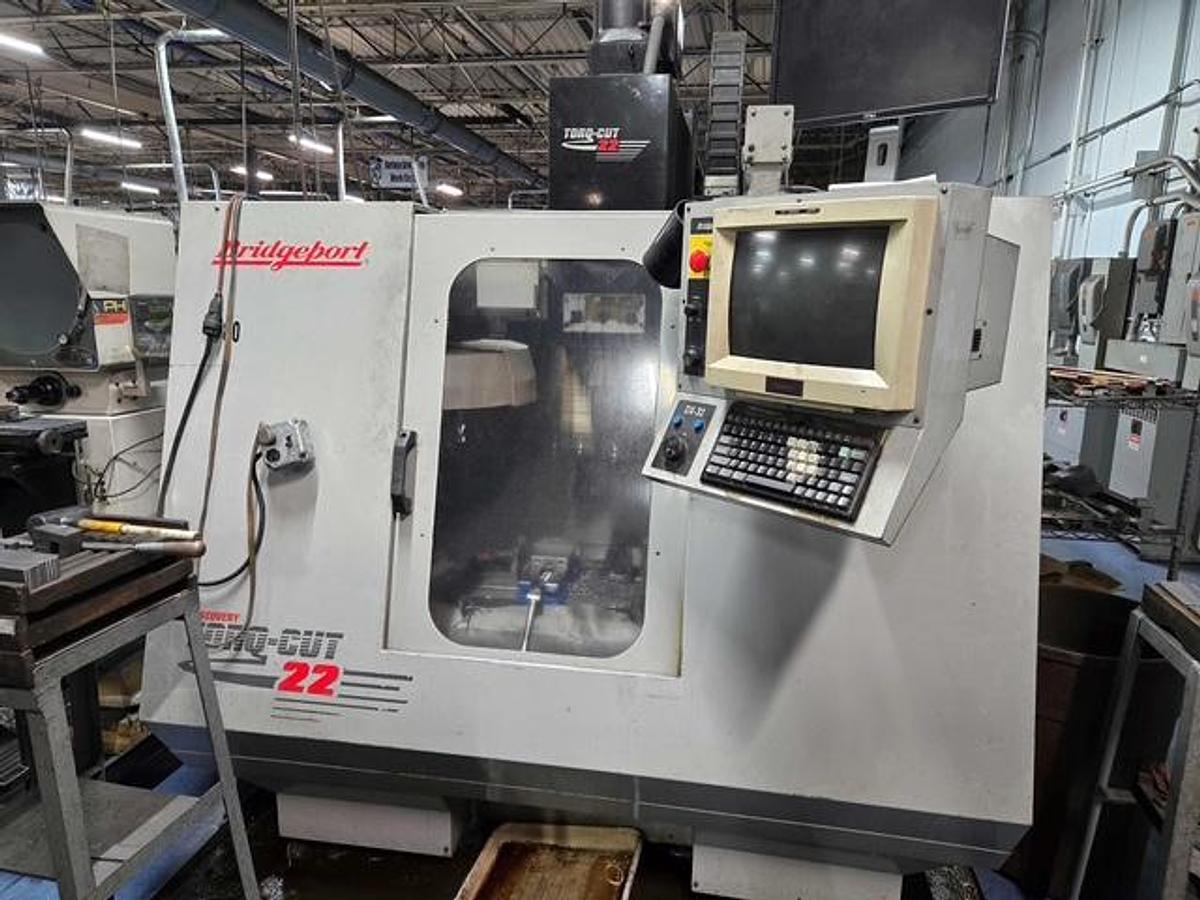

BRIDGEPORT TORQ CUT 22 VERTICAL MACHINING CENTER

1996

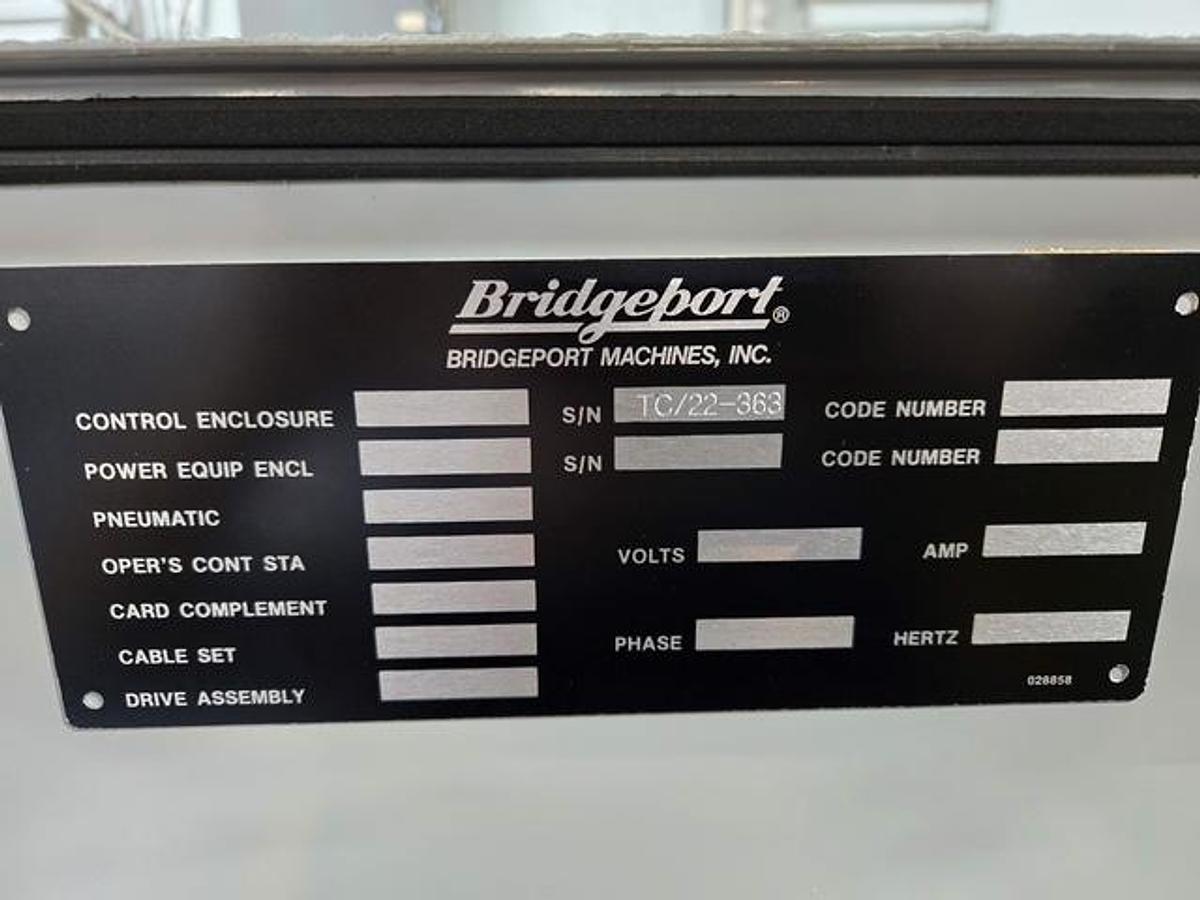

S/N TC/22-363

Specification      Description

TABLE SIZE          32" x 16"

SPINDLE NOSE TO TABLE TOP      4.33" TO 24.33"

X-AXIS TRAVEL  22"

Y-AXIS TRAVEL   16"

Z-AXIS TRAVEL   20"

AUTOMATIC TOOLCHANGER      22 POSITIONS

THROAT DEPTH 17.7"

SPINDLE TAPER BT-40

SPINDLE SPEEDS (2 GEAR RANGES)           6,000 RPM

X AXIS RAPID TRAVERSE RATE     472 IPM

Y AXIS RAPID TRAVERSE RATE      472 IPM

MAIN MOTOR   7.5 HP

DIMENSIONS     79" x 79" x 96"

WEIGHT               6,500 LBS.

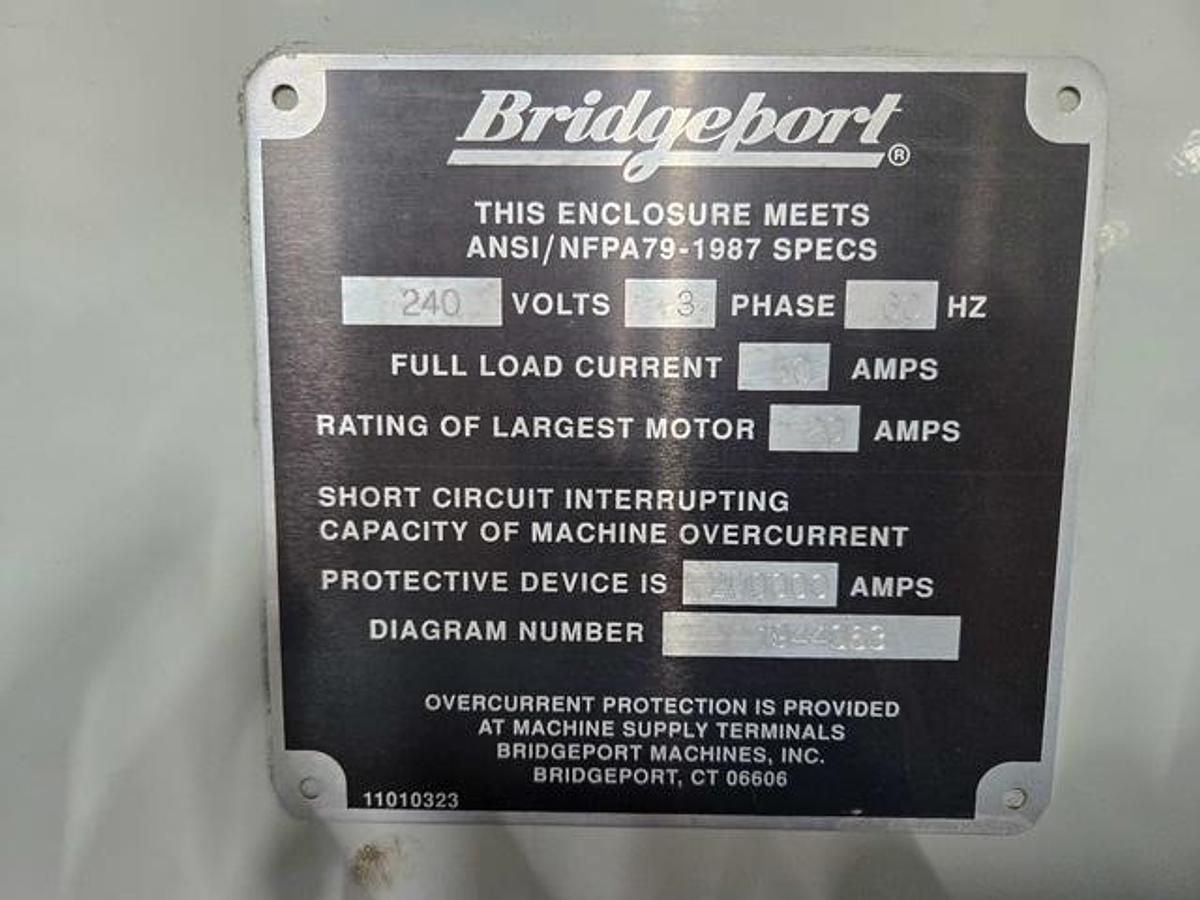

ELECTRICS           208 V / 60 HZ

Equipped With:

DX-32 PC BASED CONTROL WITH COLOR CRT

LINEAR GUIDEWAY CONSTRUCTION

FULL ENCLOSURE WITH FLOOD COOLANT & HALOGEN WORKLIGHT

BT-40 SPINDLE AND TOOL CAROUSEL
