2019 Haas GM-2-5AX

2019 HAAS GM-2-5AX CNC Router, ideal for complex, large-part machining. Equipped with a 5-axis router head, 20,000 rpm spindle, 72"x144" table, 40" Z-axis, and advanced CNC controls. Perfect for composites and aluminum. Contact for more details. Full rebuilt by Haas to new spec.

Specifications

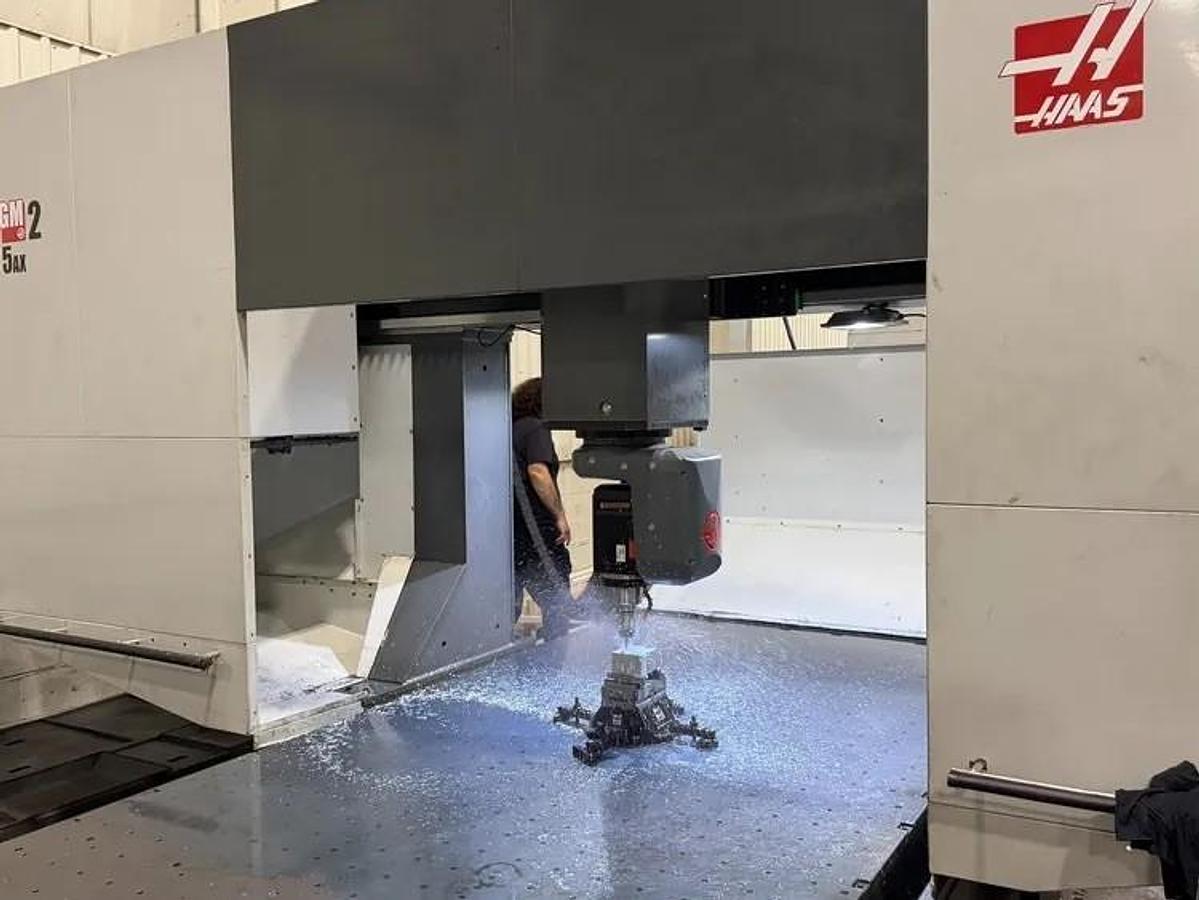

The GM-2-5AX is a 5-axis gantry mill designed for complex, large-part machining, such as airframe components, layup molds, and composite structures. The machine’s rigid steel construction provides a very stable cutting platform, and a 1" thick aluminum table is standard. A traveling guard protects the operator from chips and coolant, and keeps the workspace clean.

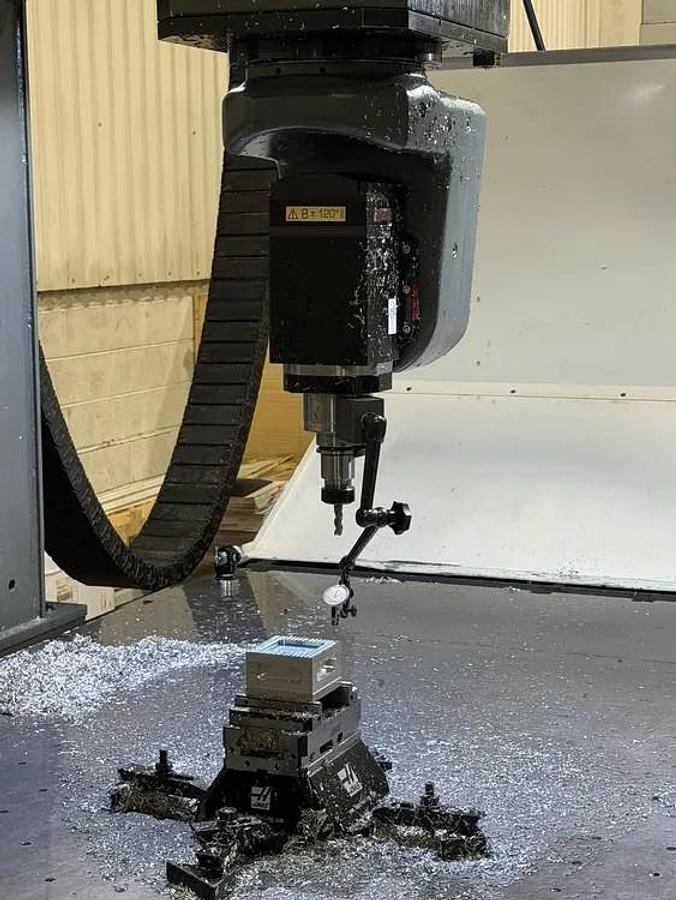

• Dual-axis spindle head provides ±245 degrees of C-axis rotation and ±120 degrees of B-axis tilt

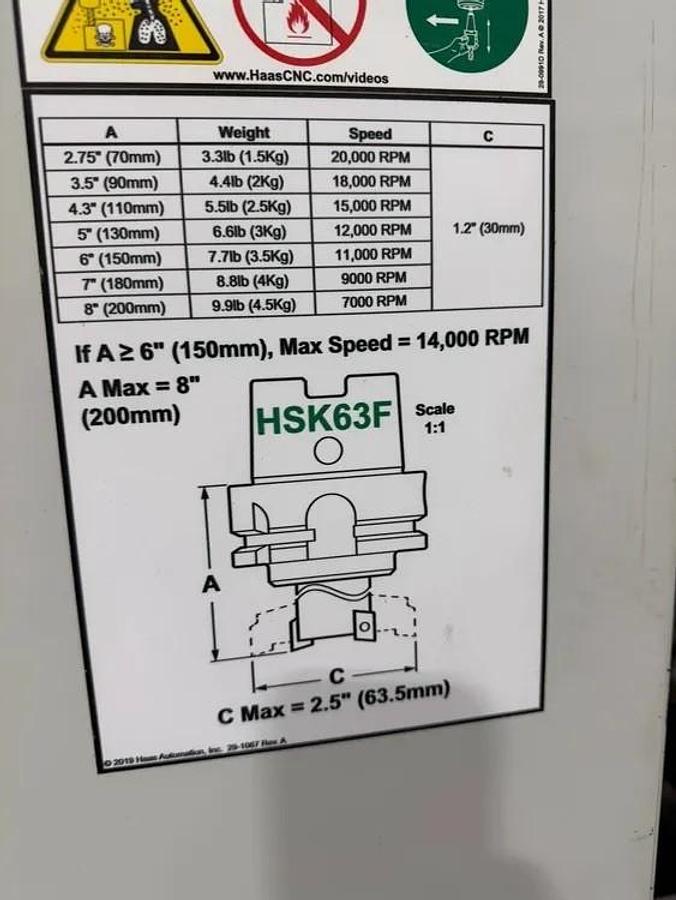

• 20,000-rpm HSK 63F spindle

• Rigid-steel construction

• Traveling guard for chip and coolant containment

• 1" thick aluminum table

The GM-2-5AX features a 20,000-rpm HSK spindle perfect for trimming composite structures, finish-profiling 3D surfaces, and hole making.

The high-speed spindle is best suited for composites, aluminum, plastics, Ren-Board, and other non-ferrous materials. The 20,000-rpm speed allows for very high surface footage, for great finishes and small tools.

The integral spindle design allows for fast acceleration rates to get the spindle speed up and down quickly. Consult the torque chart for your application.

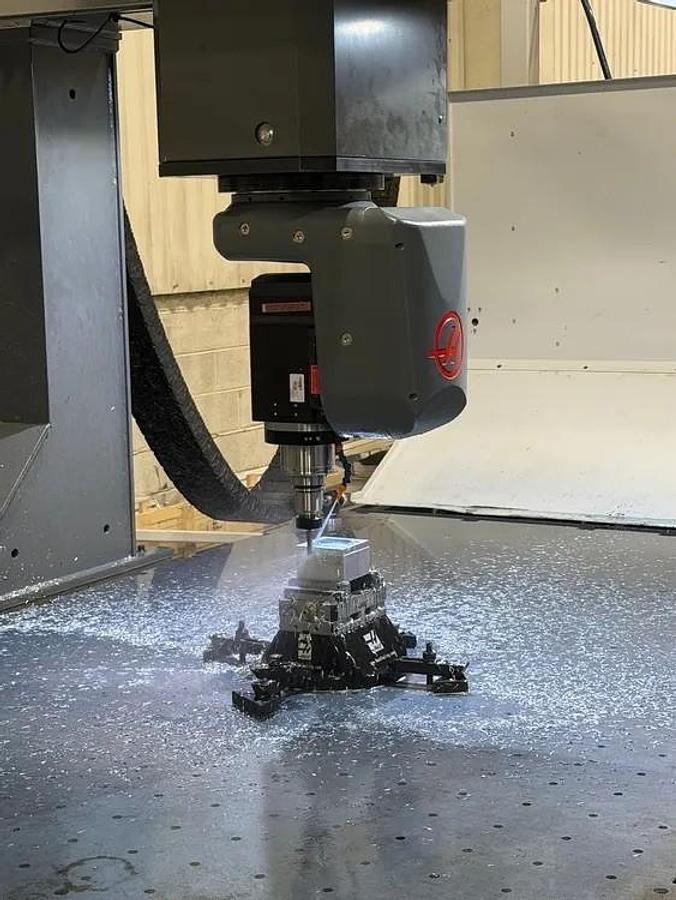

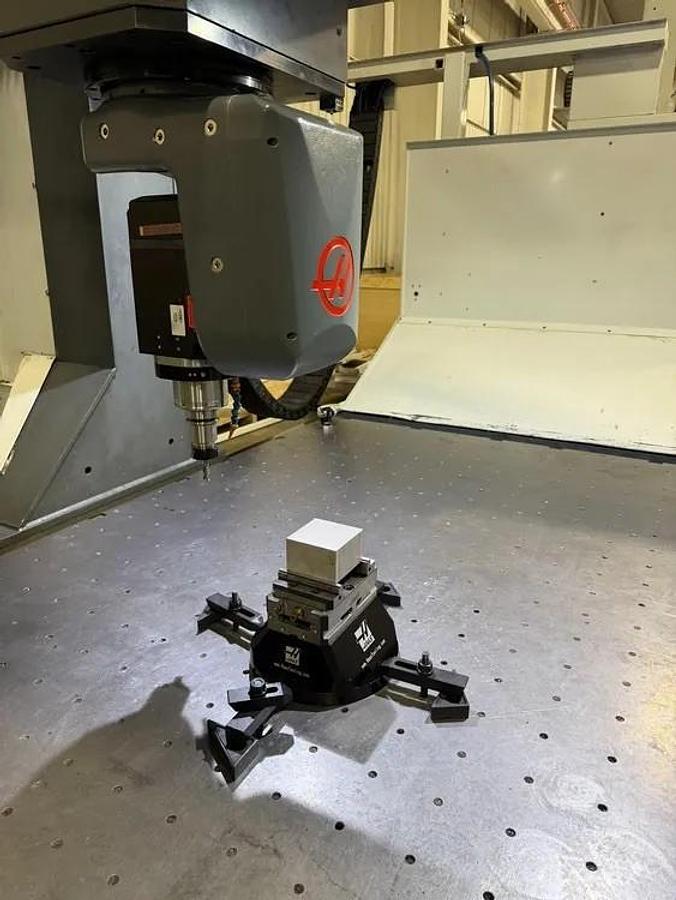

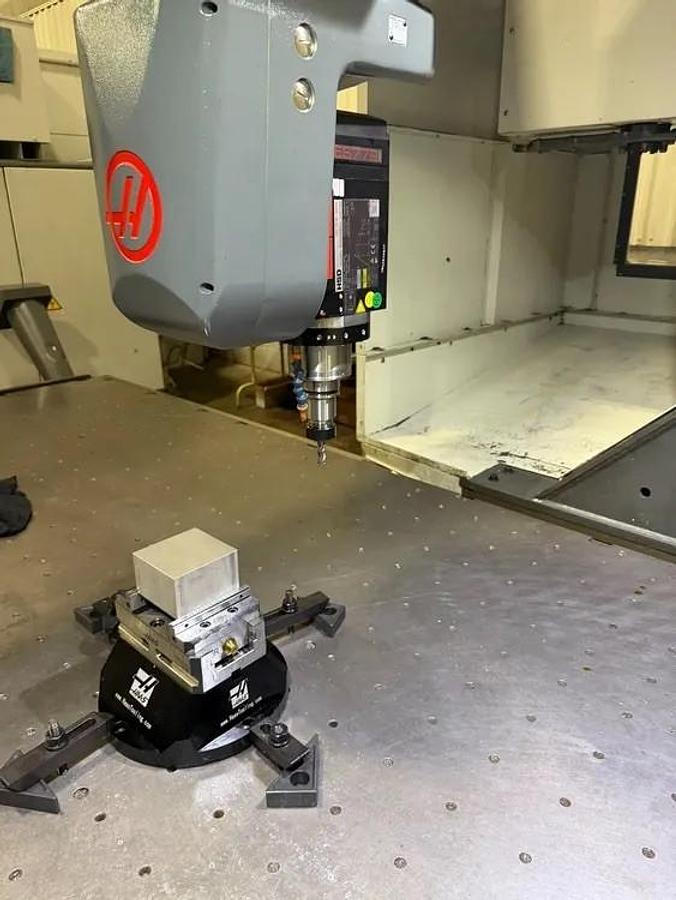

The GM-2-5AX is a full 5-axis “gimbal head” machine, where both rotary axes are mounted on the Z-axis ram, and the spindle/cutting tool assembly rotates, while the workpiece is stationary on the machine table. This allows the cutting tool to point at any angle within the rotary-axis travel limits. (more details on the Haas website)

Tour SAE METRIC

X axis 145.00 in 3683 mm

Axis y 87.50 in 2223 mm

Z axis 39.30 in 998 mm

Spindle nose to table (~max.) 37.0 in 940 mm

Spindle nose to table (~min.) 5.0 in 127 mm

Spindle SAE METRIC

Max power 16.0 hp 12.0 kW

Max speed 20000 rpm 20000 rpm

Max torque 11.3 ft-lb. @ 7500 rpm 15.3 Nm @ 7500 rpm

Drive system Integral Spindle/Motor Integral Spindle/Motor

HSK-63F | HSK-A63 HSK-63F | HSK-A63

Bearing lubrication Grease Packed Grease Packed

Refrigeration Liquid Cooled Liquid Cooled

B-axis balance SAE METRIC

Trips 120 ° to 120- ° 120 ° to 120- °

Max speed 110 °/sec 110 °/sec

Max torque 250 ft-lb. 340 Nm

C Axis - Rotation SAE METRIC

Route ± 245 ° to 245- ° 245 ° to 245- °

Max speed 200 °/sec 200 °/sec

Max torque 258 ft-lb. 350 Nm

Table SAE METRIC

Length 144.0 in 3658 mm

Width 72.0 in 1829 mm

Thickness 1.0 in 25 mm

Max weight on table (evenly distributed) 6000 lb 2722 kg

Between columns 75.0 in 1905 mm

Feedrates SAE METRIC

Maximum cut 472 ipm 12.0 m/min

Fast in X 472 ipm 12.0 m/min

Y Rapids 1889 ipm 48.0 m/min

Rapids in Z 1181 ipm 30.0 m/min

Axis Motors SAE METRIC

Max thrust X 4500 lb. 20017 N

Max thrust Y 1650 lb. 7340 N

Max thrust Z 2000 lb. 8896 N

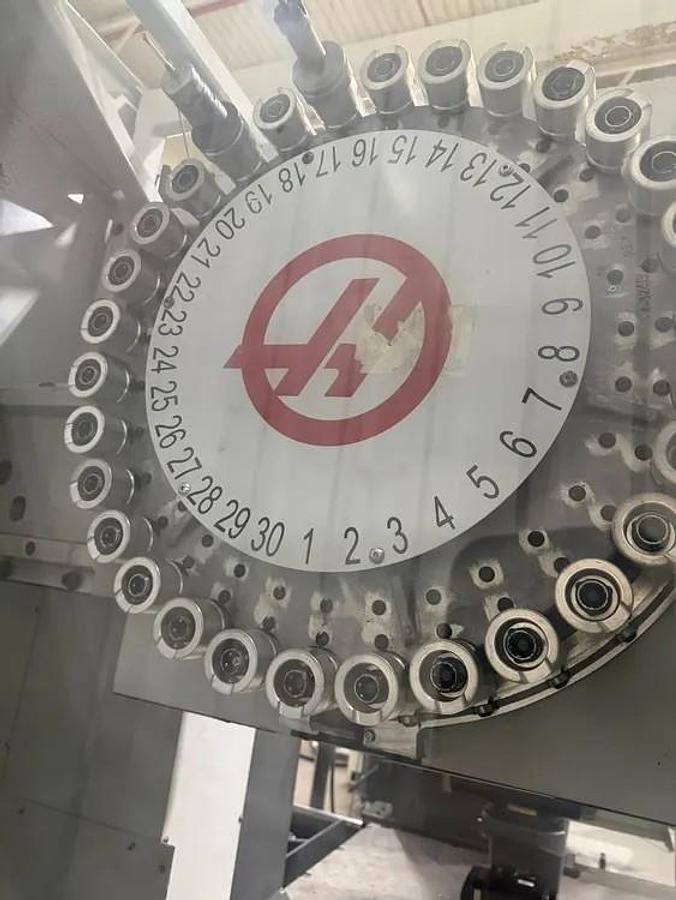

Tool Changer SAE METRIC

Guy SMTC SMTC

Ability 30+1 30+1

Max tool diameter (occupied) 2.5 in 64 mm

Max tool diameter (void contiguous) 3.5 in 89 mm

Max tool length (from calibration line) 11 in 279 mm

Max tool weight 12.0 lb. 5.4 kg

General SAE METRIC

Refrigerant capacity 95 gal 360 L

Air Requirements SAE METRIC

Air needed 4 scfm @ 100 psi 113 L/min @ 6.9 bar

Dimensions - Shipping SAE METRIC

domestic palette 226" x 143" x 137" 574 cm x 363 cm x 348 cm

Box for export 226 in x 153 in x 143 in 574 cm x 389 cm x 363 cm

Weight 22040 lb. 10000.0 kg

Export Crate for Sheet Metal 89 in x 57 in x 50 in 226 cm x 145 cm x 126 cm

Weight for metal cover box 1400 lb

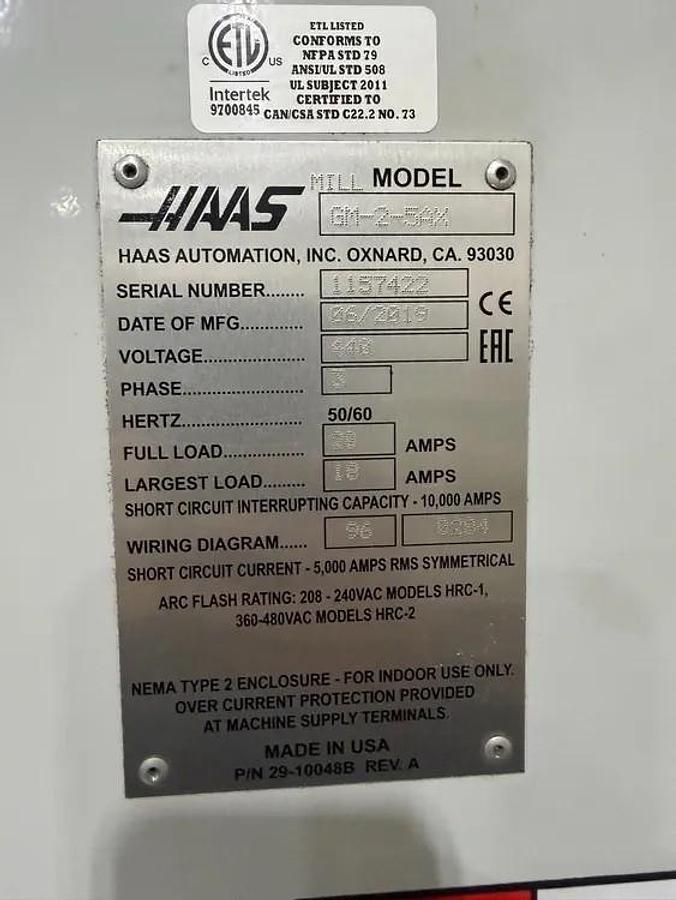

Electrical Specification SAE METRIC

Spindle speed 20000 rpm 20000 rpm

Drive system Integral Spindle/Motor Integral Spindle/Motor

Spindle power 16.0 hp 12.0 kW

AC input voltage (3 phase) - Low 220 VAC 220 VAC

Full Load Amps (3 Phase) - Low 40 A 40 A

Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC

Full Load Amps (3 Phase) - High* 20 A 20 A

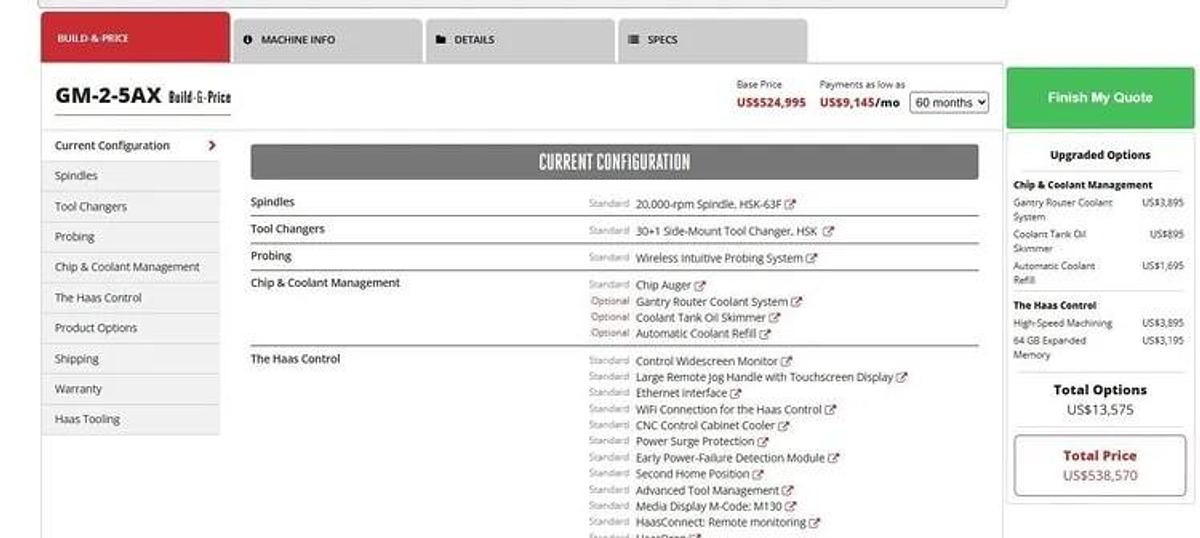

*** New price today as built $538,570 ***

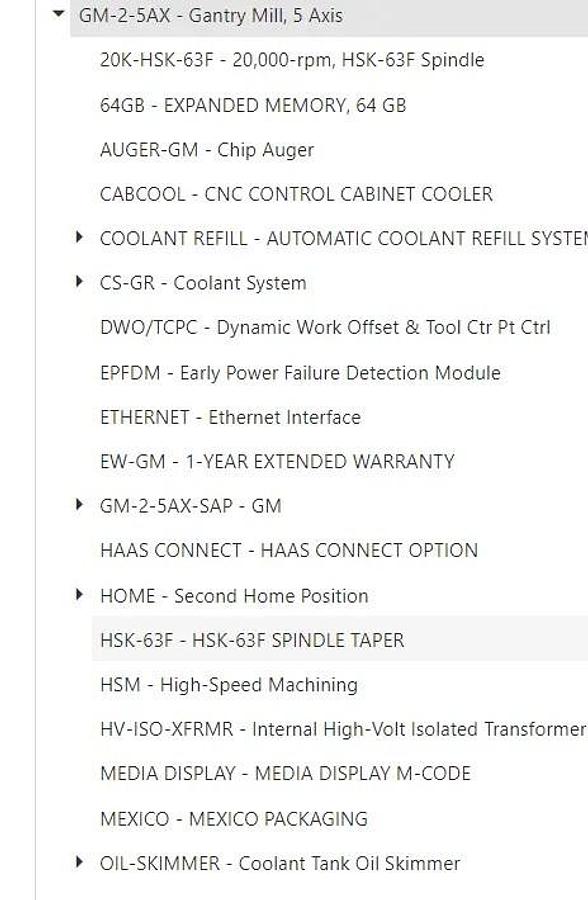

Equipped With

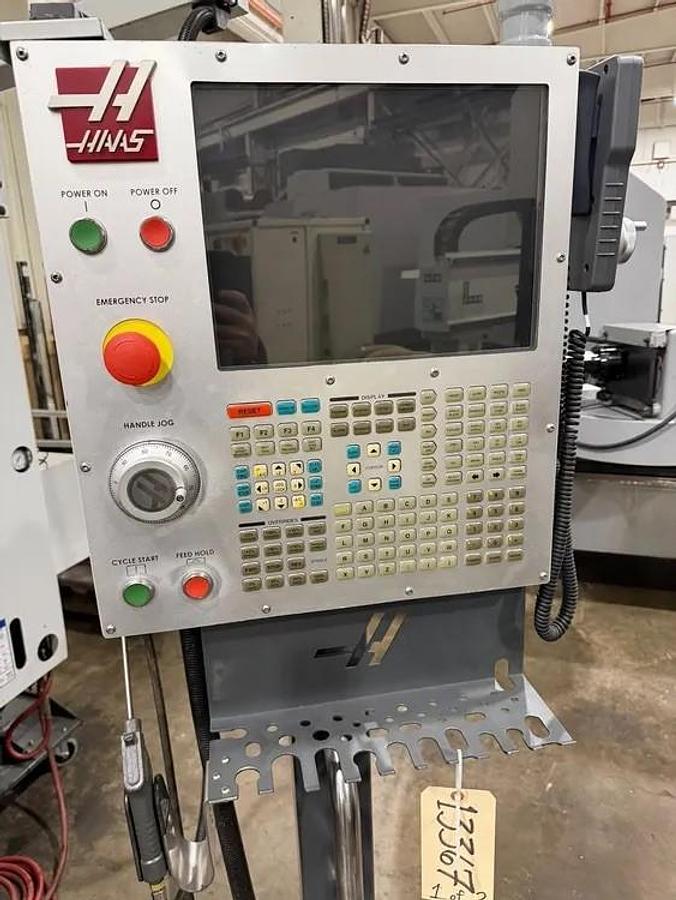

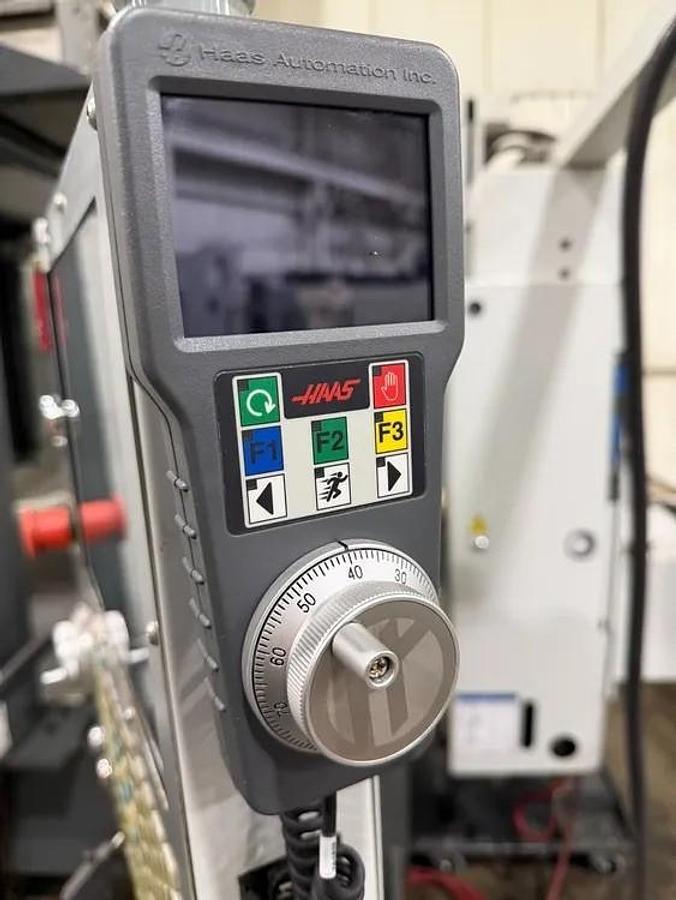

Haas CNC Controls

5-axis router head with 16 HP 20,000 rpm spindle HSK 63F spindle taper

72" x 144" x 1" thick aluminum table

40" vertical Z axis

whips probing

64gb expanded memory

coolant system with auto refilling

chip auger

dynamic work offsets

early power failure detection

ethernet interface

second home position

tool center point control

internal high voltage transformer

high speed machining

coolant oil skimmer

media display M-codes

*** This machine has been fully rebuilt by Haas to new spec in 2025. New spindle, gimble head, rails, ball screws, bearings, etc. Ball bar test report and receipts available upon request
