2003 Daewoo PUMA 2000SY

2003 Daewoo PUMA 2000SY

CNC Turning Center

Max Turning Diameter: 12.99″

Swing Over Bed: 23.62″

Swing over the Saddle: 21.65″

Max Turning Length: 20.07″

Max Bar Capacity: 2.55″

X Axis Travel: 9.84″

Z Axis Travel: 22.83″

Y Axis Travel: 3.93″ (+ 1.96″ – 1.96″)

B Axis Travel: 22.83″ (Sub Spindle)

C Axis: 360° (0.001°) Both Spindle

Rapid Traverse X Axis: 787 IPM

Rapid Traverse Z Axis: 945 IPM

Rapid Traverse Y Axis: 295 IPM

Rapid Traverse B Axis: 787 IPM

Main Spindle Nose: A2-6

Sub Spindle Nose: A2-5

Main Spindle Bore: 2.99″

Sub Spindle Bore: 1.77″

Main Spindle Speed: 45-4500 RPM

Sub Spindle Speed: 60-6,000 RPM

Main Spindle Power: 20 HP

Sub Spindle Power: 10 HP

Capacity: 12 Live Stations

Turret Index Time: 0.1 Second

Live Tool Speed: 60-6,000 RPM

Live Tool Spindle Power: 5 HP

Power Source: 50.71 kva, 220v / 3-Phase / 60 Hz

Overall Dimensions: 123″ x 67″ x 81″ High

Overall Dimensions: 136″ x 67″ x 72″ High with Chip Conveyor

Weight: 10,700 lbs

-EQUIPPED WITH-

Fanuc 18i-TB CNC Control

Collet Chuck on Main Spindle

Collet Chuck on Sub Spindle

Servo Controlled Full C-Axis on Both Spindles

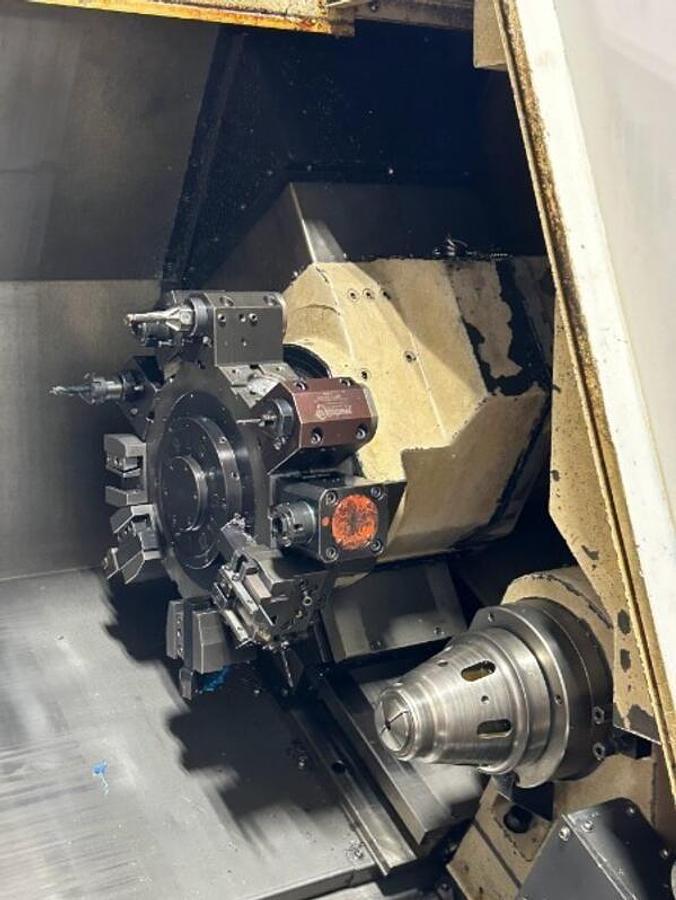

12-Station Turret w/ Live / Rotary Tools

Tool Presetter

Parts Catcher

Rigid Tapping on Both Spindles

Foot Operated Control for Chuck

Turbo Systems Chip Conveyor

Comes with Live Tools & Static Tool Holders

Spindle Orientation

Books & Manuals

Levelling Pads
