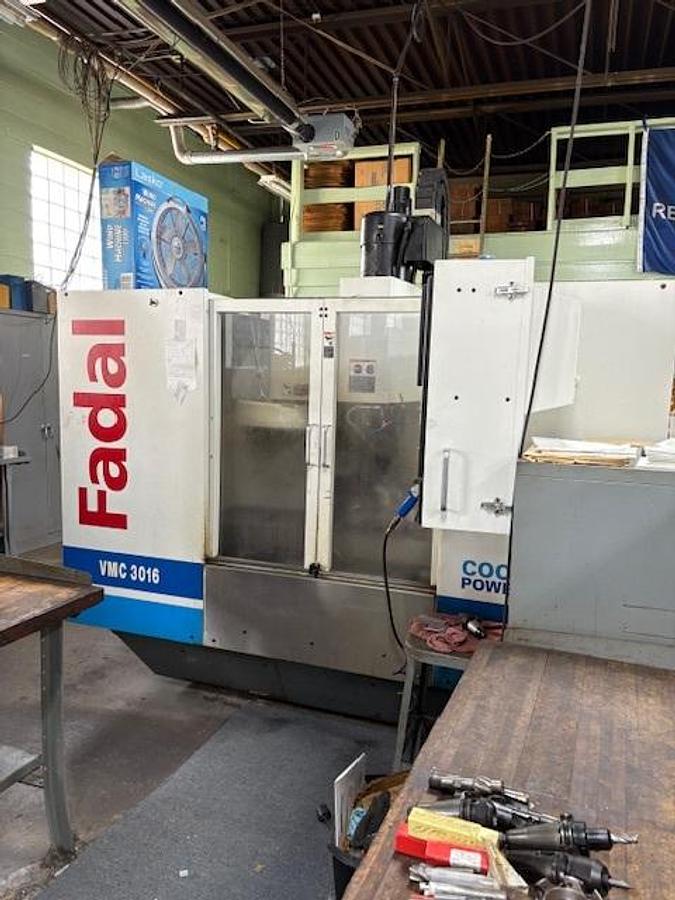

2002 Fadal VMC-3016HT

The 2002 Fadal VMC-3016HT is a reliable used vertical machining center perfect for a variety of industrial applications. Its table size of 39" x 16" comfortably supports a max weight of 2,736 lbs, providing ample space and support for handling substantial workpieces. The machine's travels include a 30" X-axis, 16" Y-axis, and 20" Z-axis, and it features a spindle nose to table range of 4" to 24", with an optional extension to 32". Equipped with a CAT #40 spindle taper, the VMC-3016HT is driven by a 22.1 HP main motor supported by an AC vector drive. The spindle operates at speeds up to 8,000 RPM, ensuring efficient material removal and processing. Its automatic tool changer holds up to 21 tools, operating bi-directionally to boost productivity. With cutting feed rates at 800 IPM and rapid travel rates at 1,000 IPM on all axes, this machine promises fast and precise machining. The VMC-3016HT offers impressive precision with axis positioning accuracy of +/- 0.0002" and repeatability of +/- 0.0001". For added functionality, it is equipped with Fadal CNC control, rigid tapping, and a coolant tank to enhance performance. This vertical machining center is ideal for businesses needing a dependable, efficient, and high-performance machine.

FADAL VMC-3016HT CNC VERTICAL MACHINING CENTER NEW:2002

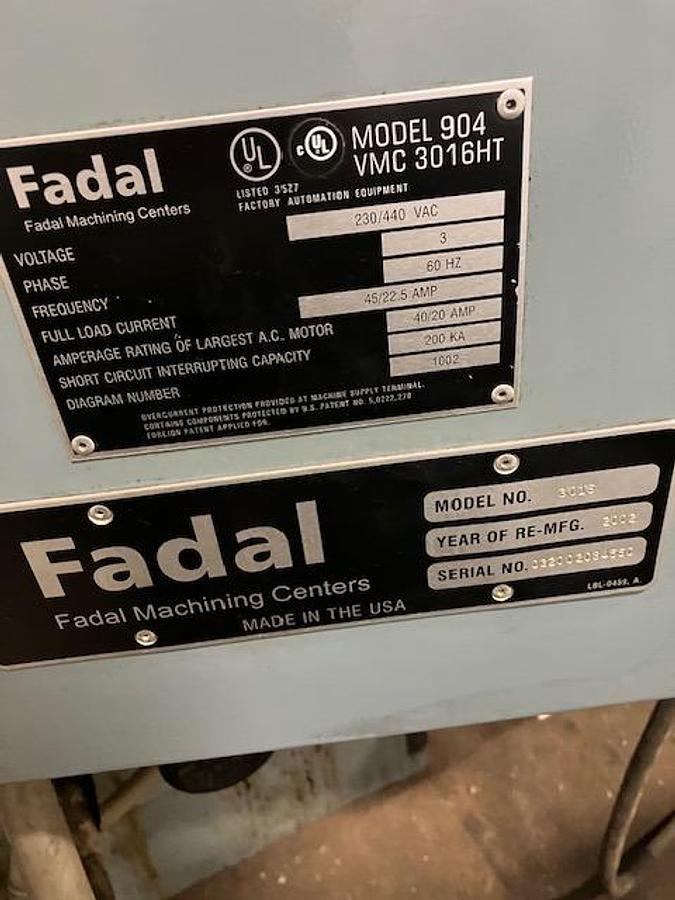

S/N 03200284550

SPECIFICATIONS:

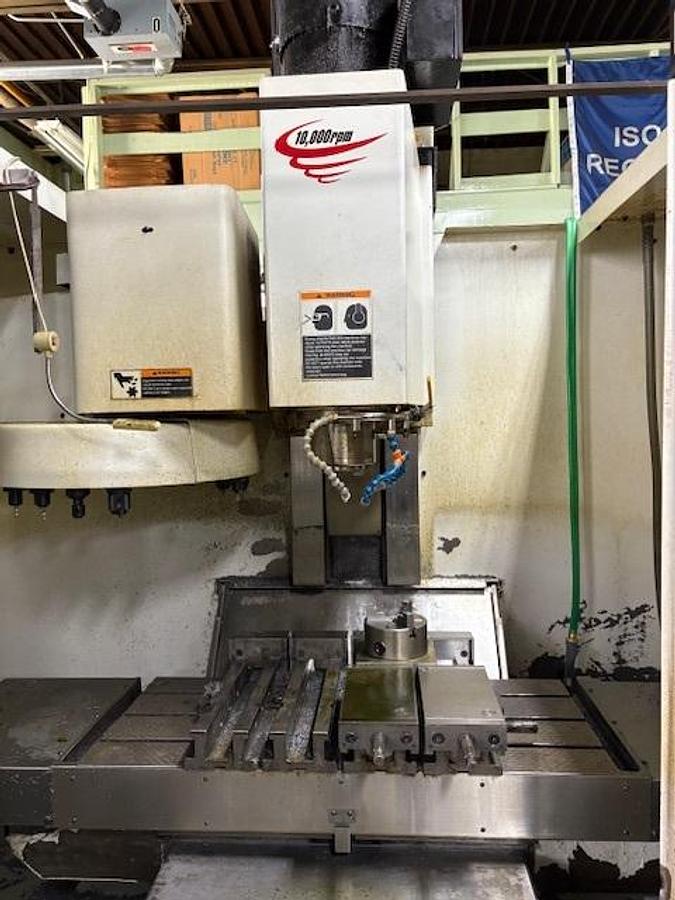

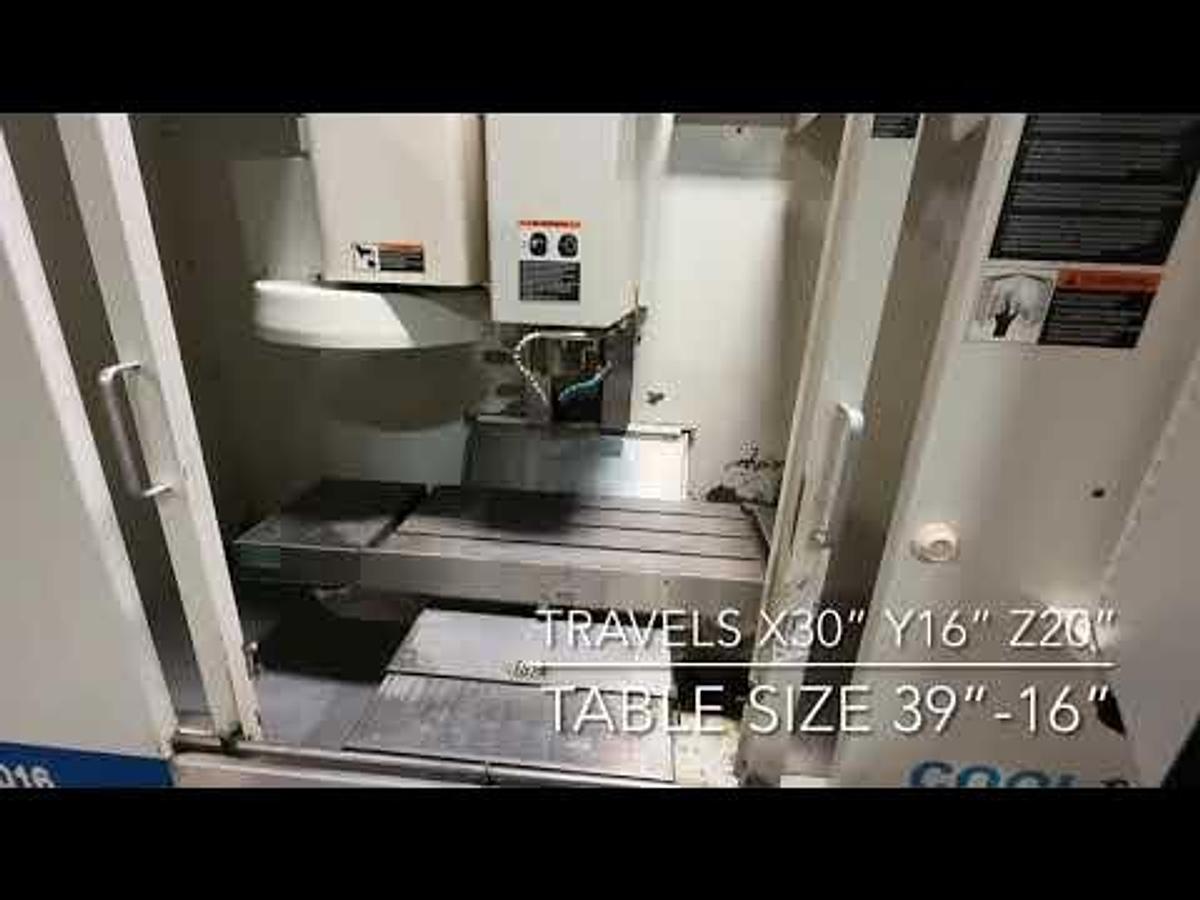

TABLE SIZE: 39"X16"

TRAVELS:

X-AXIS: 30"

Y-AXIS: 16"

Z-AXIS: 20"

MAX WEIGHT ON TABLE: 2736 LBS

SPINDLE NOSE TO TABLE: 4"-24" (OPT. 4"-32")

SPINDLE TAPER: CAT #40

TOOL HOLDERS: 21 ATC BI-DIRECTIONAL

MAIN MOTOR: 22.1 HP

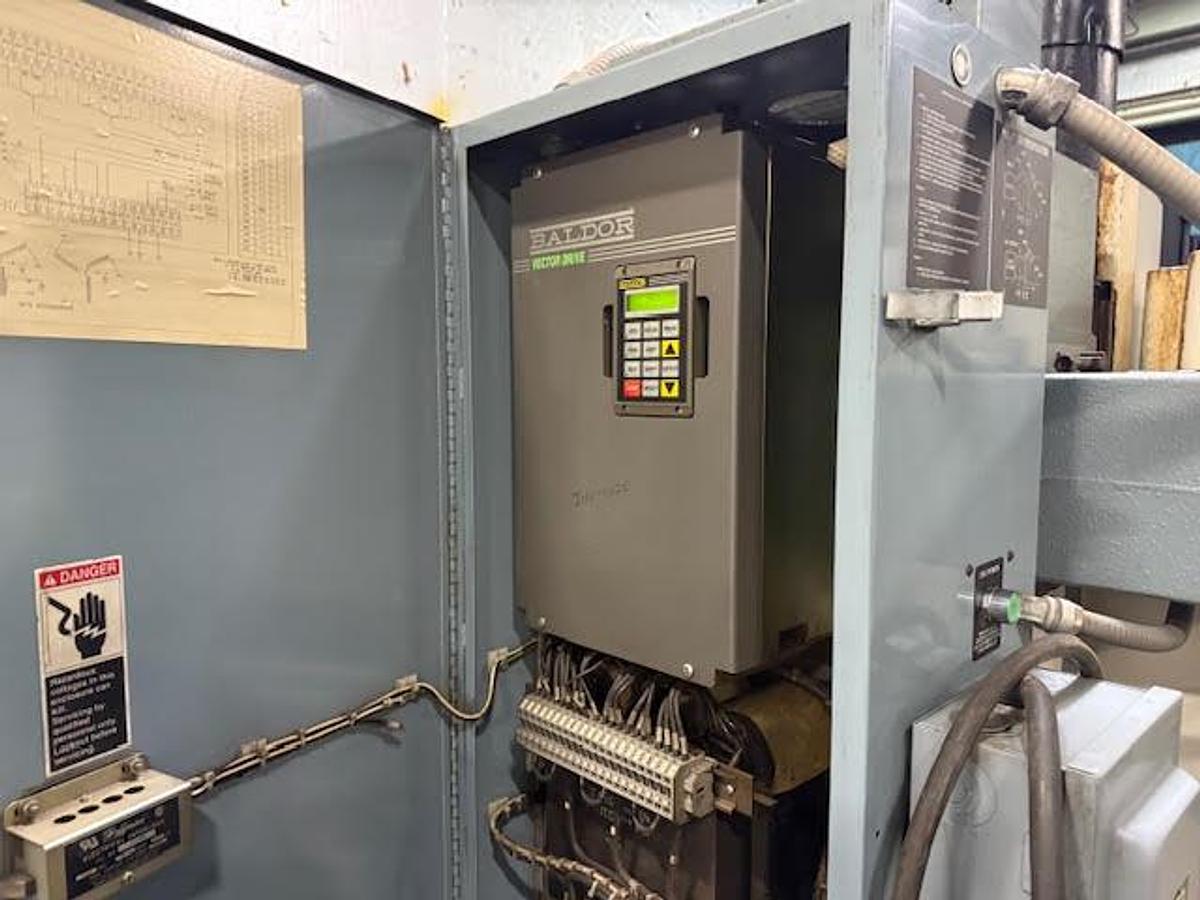

SPINDLE DRIVE MOTOR: AC VECTOR DRIVE

SPINDLE SPEED : 8,000 RPM

CUTTING FEED RATE(X,Y,Z): 800 IPM

RAPID TRAVEL(X/Y/Z): 1000 IPM

AXIS POSITIONING: +/- .0002"

AXIS REPEATABILITY: +/- .0001"

EQUIPPED WITH:

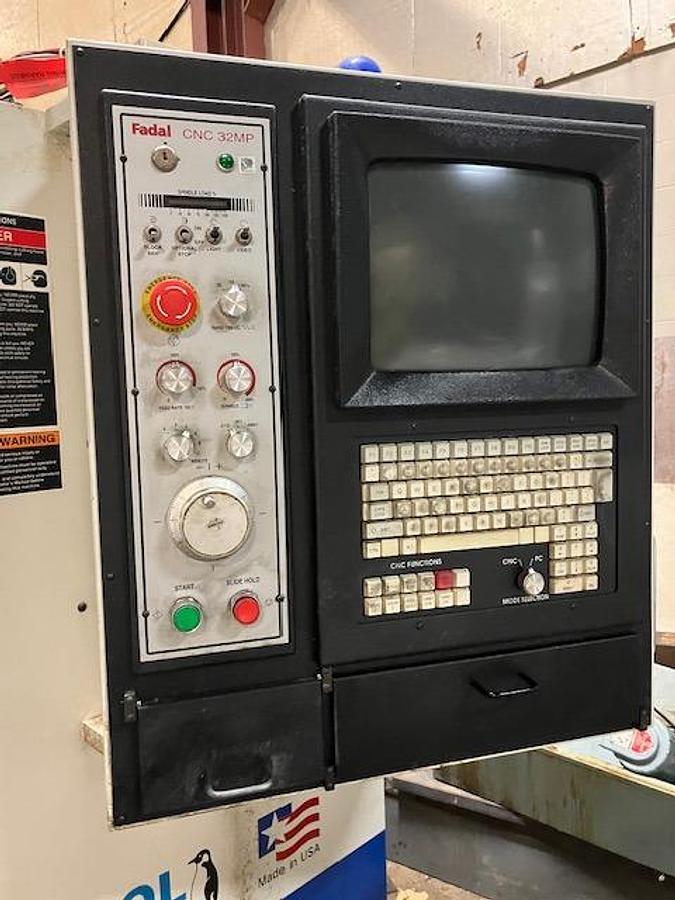

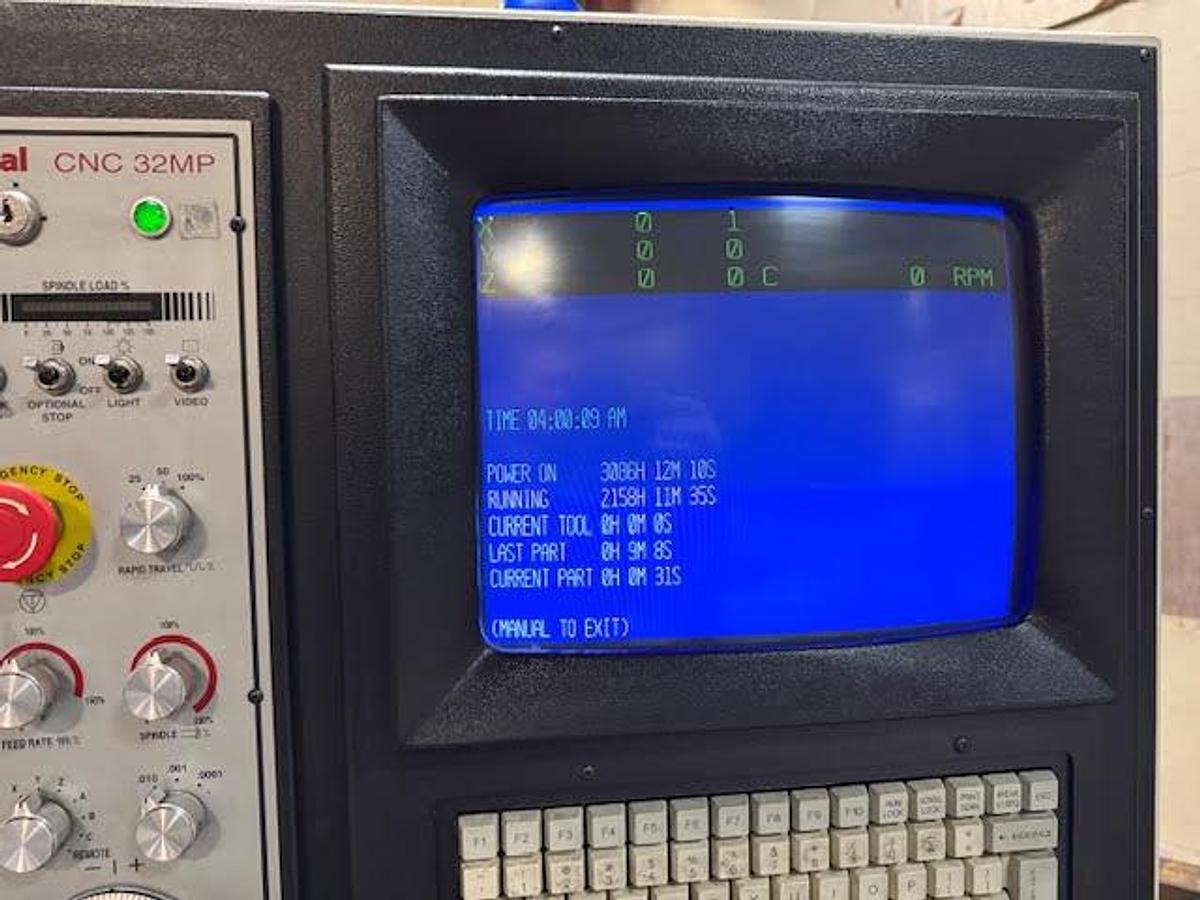

Fadal CNC CONTROL

Rigid tapping

Coolant tank
