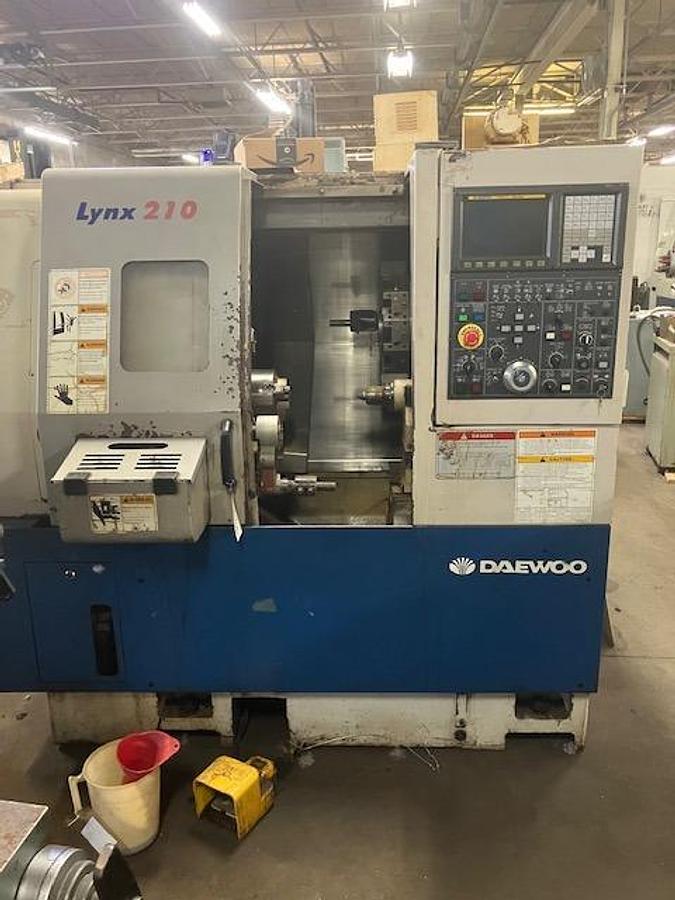

2004 Daewoo Lynx 210

The 2004 Daewoo Lynx 210 is a reliable used CNC lathe designed for versatile machining operations. It features a Fanuc i-series CNC control system, providing precision and user-friendly operation. With a maximum turning diameter of 11.0 inches and a turning length of 11.8 inches, this machine handles a variety of workpieces effectively. Its 6-inch 3-jaw hydraulic chuck, combined with a 12-station automatic turret, allows for efficient and flexible operation. The spindle, with an A2-5 nose, offers a bore of 2.0 inches and operates at speeds ranging from 35 to 5000 RPM, powered by a robust 15hp motor. Additional features include rigid tapping, a tool presetter, and a parts catcher, enhancing productivity. The lathe is equipped with a hydraulic tailstock and quill, supported by a taper of MT-3 and a quill diameter of 2.97 inches, with a travel distance of 3.15 inches. Supporting connectivity and data transfer, the machine includes an RS-232 and LAN interface, as well as a PCMCIA card slot. For easy maintenance, it comes with a coolant system, a turbo chip conveyor, and a comprehensive set of manuals. Operating on a power supply of 35 kva, 220v / 3-phase, the Daewoo Lynx 210 measures 160 inches by 77 inches by 80 inches with the chip conveyor, and weighs approximately 7600 lbs.

• Daewoo Lynx  210 Cnc Lathe 2004
•
• Equipped With:

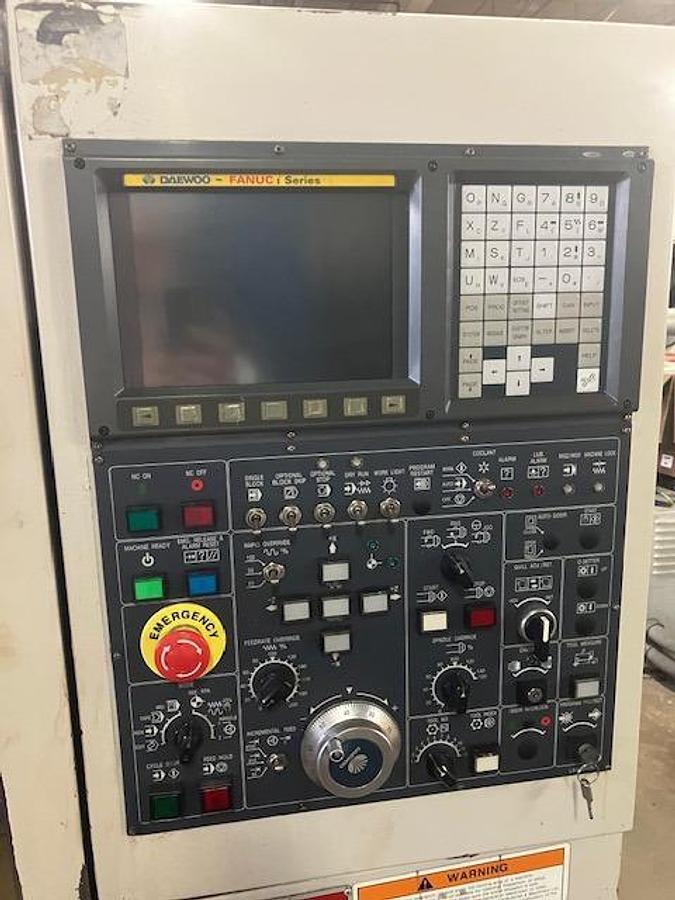

• Fanuc i- series CNC Control
• Rigid Tapping

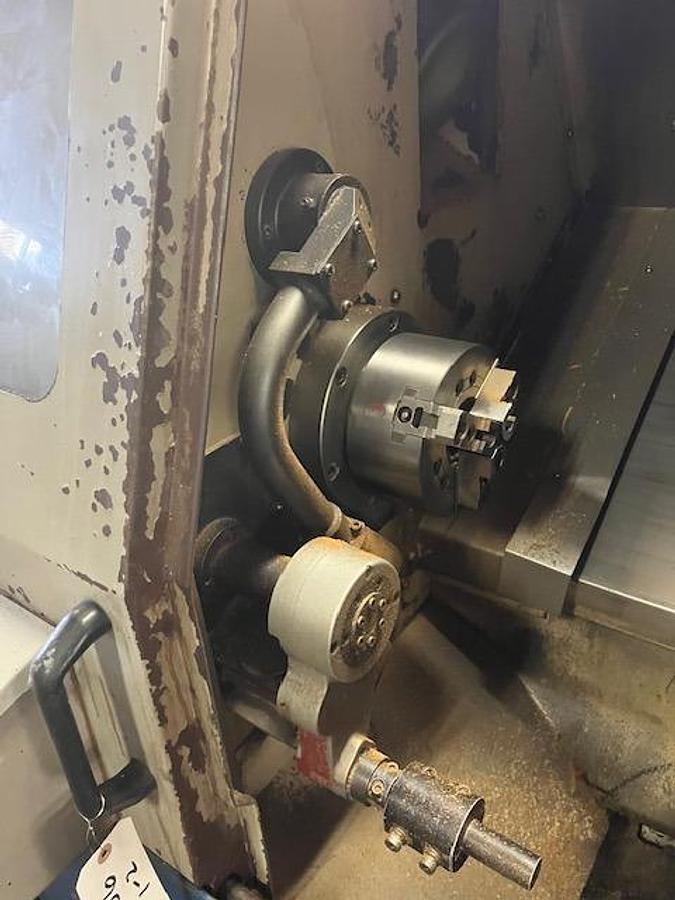

• 6″ 3 Jaw Hydraulic Chuck
• A2-5 Spindle Nose
• Tool Presetter
• Parts Catcher
• Hydraulic Tailstock and Quill
• PCMCIA Card Slot
• RS-232 & LAN connectivity
• Coolant System
• 12 Station Automatic Turret
• Foot Switch
• Turbo Chip Conveyor
• Manuals
• Daewoo Lynx 210 Specifications:
• Capacity:
• Max Turning Diameter: 11.0″
• Max Turning Length: 11.8″
• Max Bar Capacity: 1.75″
• Swing Over Bed: 18.0″
• Distance Between Centers: 20.0”
• Travel:

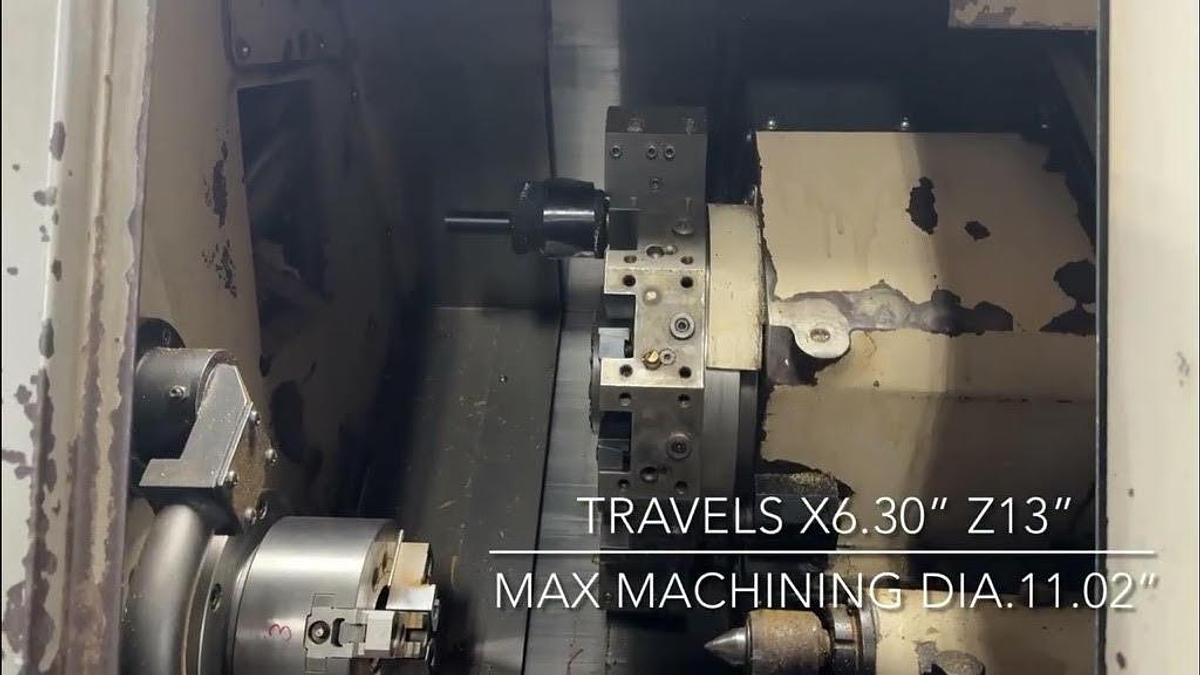

• X Axis Travel: 6.3″
• Z Axis Travel: 13.0″
• Rapid Traverse X Axis: 787 IPM
• Rapid Traverse Z Axis: 945 IPM
• Spindle:
• Spindle Nose: A2-5
• Spindle Bore: 2.0″
• Spindle Speed: 35 – 5000 RPM
• Spindle Motor: 15hp
• Turret:
• Turret Capacity: 12 Stations
• Turret Index Time: 0.15 Second
• Tailstock:
• Tailstock Taper: MT-3
• Tailstock  Quill Dia.: 2.97″
• Tailstock Quill Travel: 3.15″
• General:

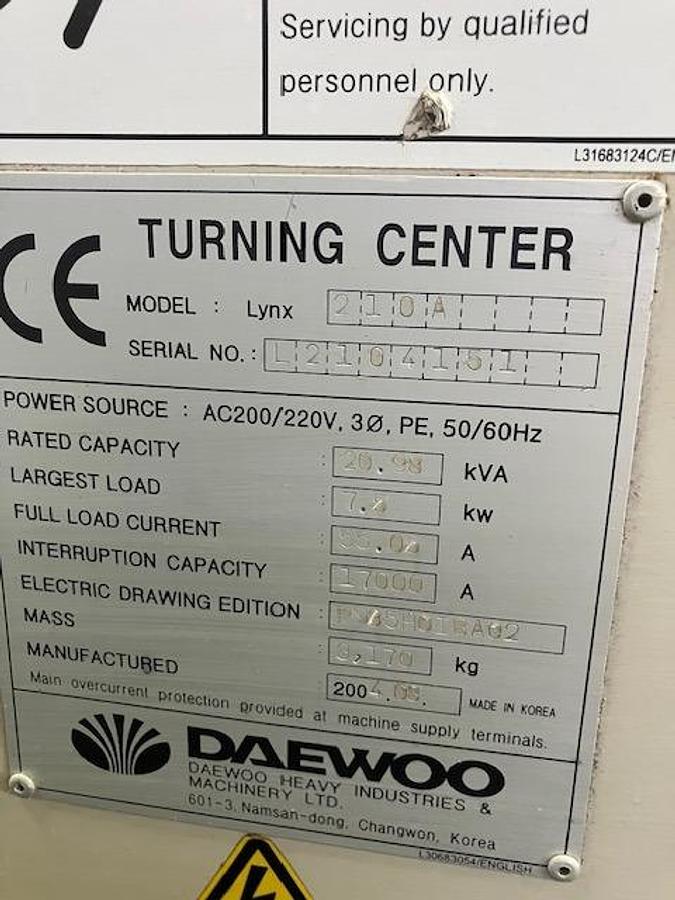

• Power: 35 kva, 220v / 3-Phase
• Overall Dimensions: 160″ x 77″ x 80″ High with Chip Conveyor
• Weight: 7600 lbs
