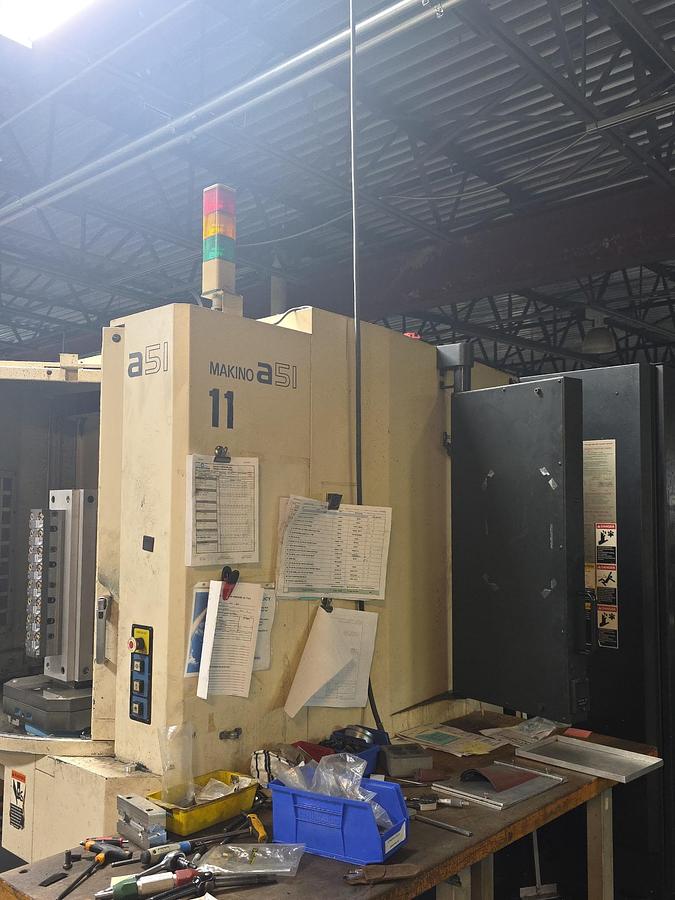

2006 Makino A51

The 2006 Makino A51 CNC is a 4-axis horizontal machining center designed for precision and efficiency. With two pallets each measuring 15.7" x 15.7" and a pallet weight capacity of 880 lbs, it is well-suited for complex machining tasks. The machine offers generous travel dimensions, with 22" on both the X and Y axes and 19.7" on the Z axis. Its fourth axis provides full rotation with a precision of 0.001 degrees, facilitating intricate multi-axis operations. Equipped with a powerful 25 HP spindle motor, the Makino A51 can reach speeds up to 14,000 RPM, with a CT#40 spindle taper and an automatic tool changer capacity of 60 tools. Features like high-pressure coolant through the spindle and rapid traverse rates of 2,362 IPM help ensure quick and efficient operation. The machine's chip-to-chip time is an impressive 2.2 seconds, enhancing production speed. The A51 is controlled via the Pro5 CNC system and includes useful features such as a spindle chiller, lift-up chip conveyor, and a comprehensive hydraulic system. Weighing approximately 17,200 lbs, it includes additional functionalities like helical interpolation and chip augers, contributing to its versatility and reliability in industrial machining environments.

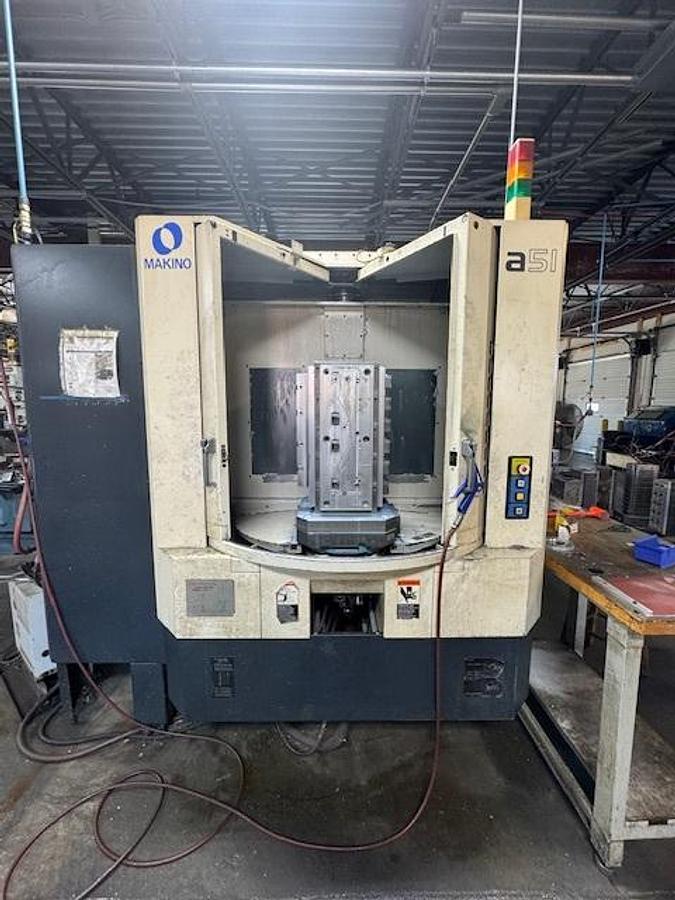

Makino A51 CNC 4-Axis Horizontal Machining Center 2006

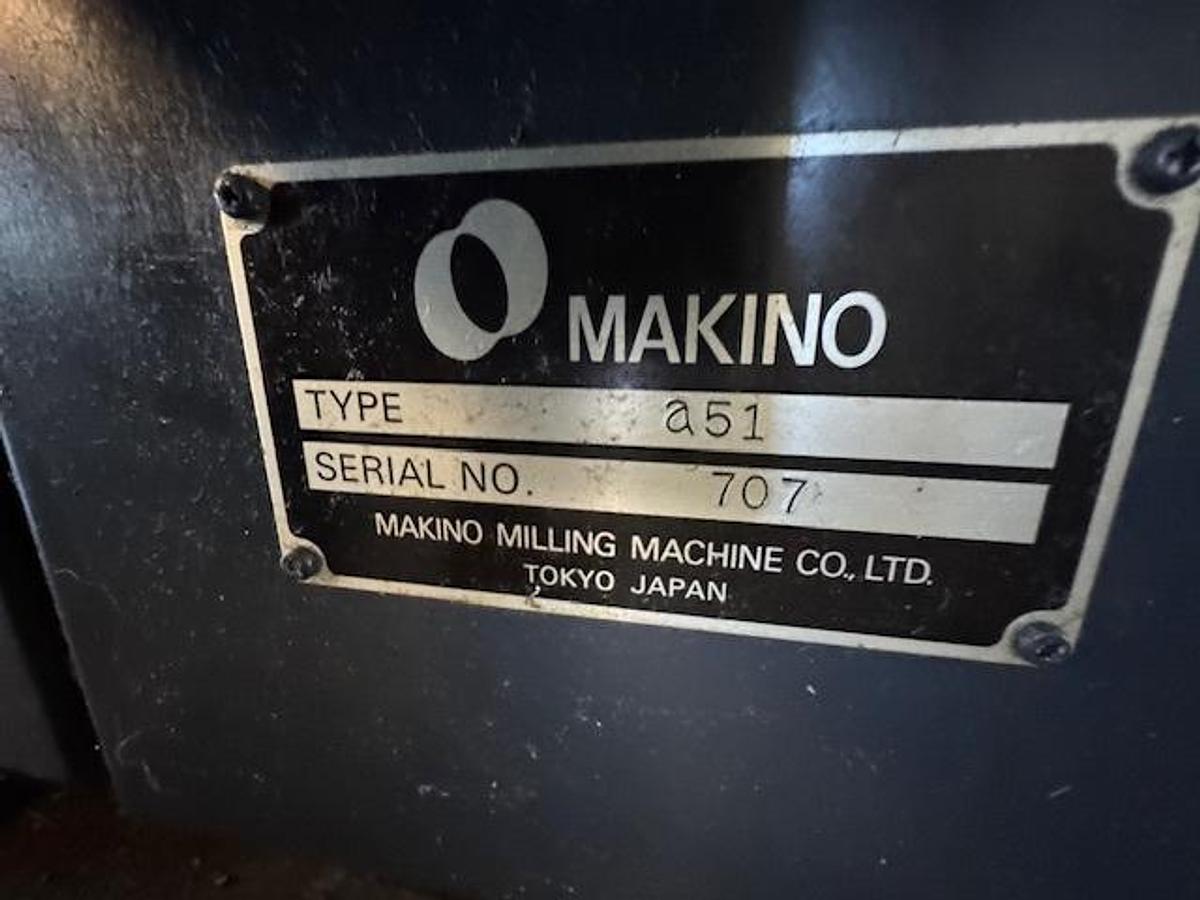

Serial Number 707

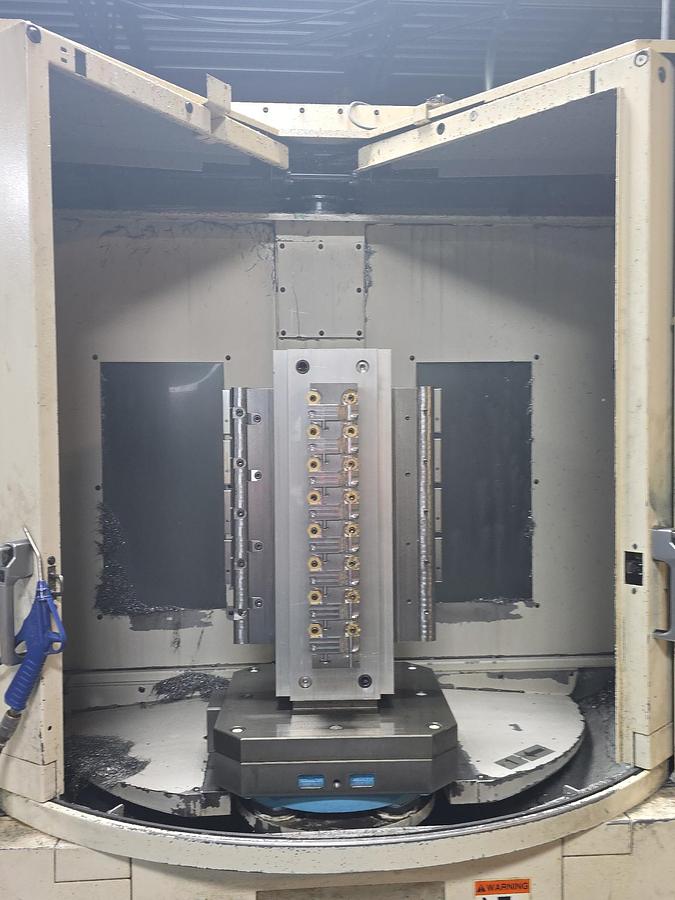

Pallet Size 15.7" x 15.7" (2 Pallets)

Pallet Weight Capacity 880 lbs

X- Axis Travel 22"

Y-Axis Travel 22"

Z-Axis Travel 19.7"

4th-Axis 0.001 Degree Full 4th Rotation

Spindle Motor 25 HP

Spindle Speed 14,000 RPM

Spindle Taper CT#40

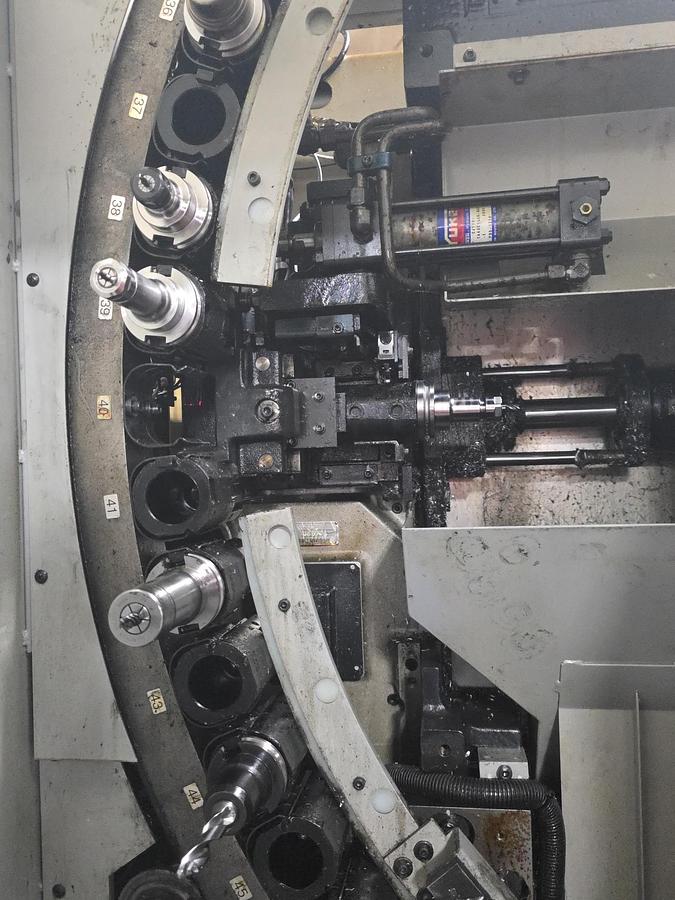

ATC Capacity 60 ATC

High Pressure Coolant Through Spindle

Chip to Chip Time 2.2 Seconds

Rapid Traverse Rate 2,362 IPM

Approx. Machine Weight 17,200 lbs

Description

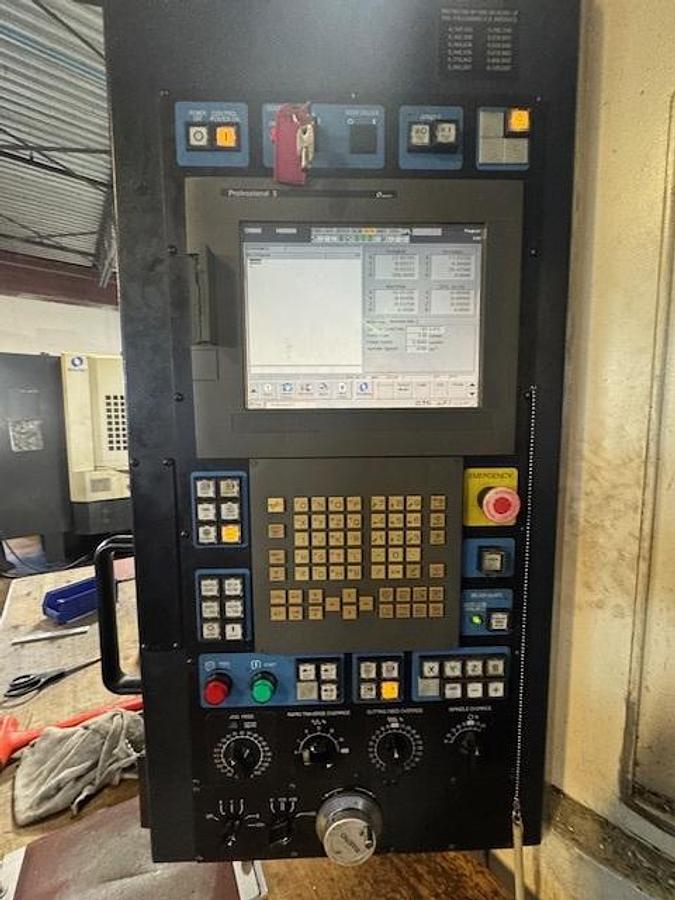

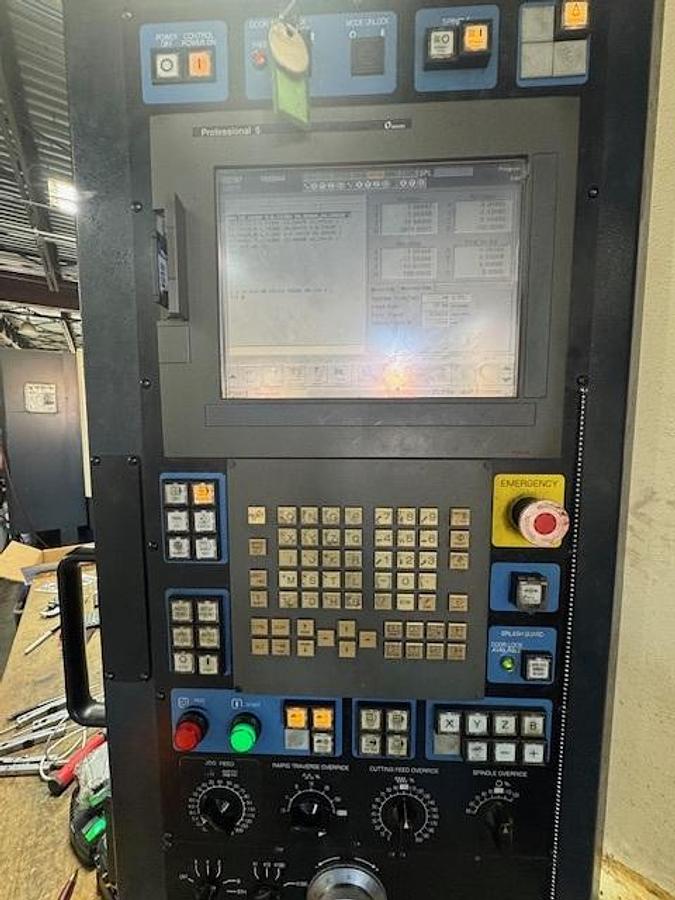

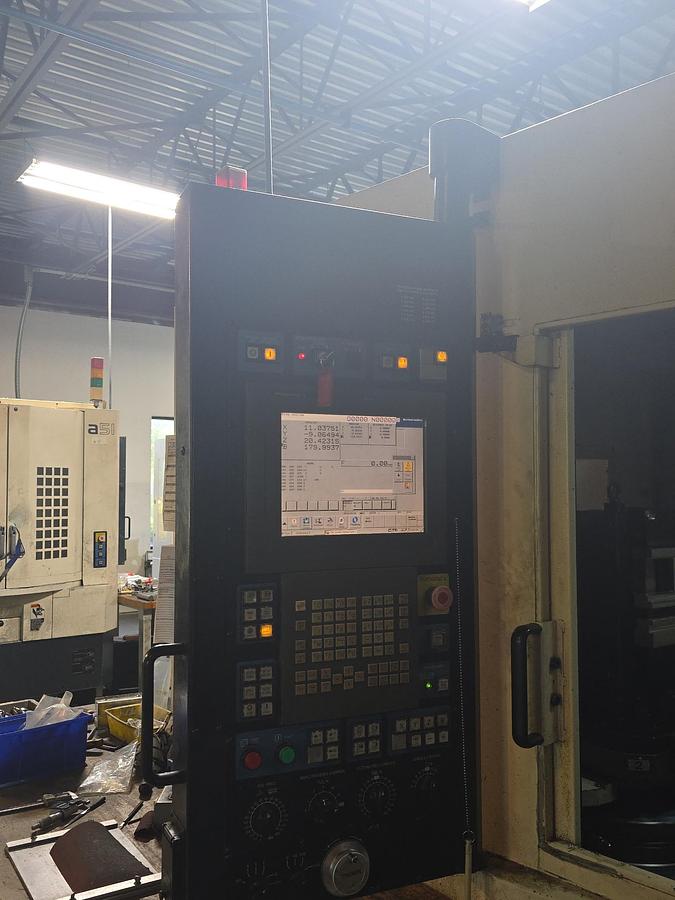

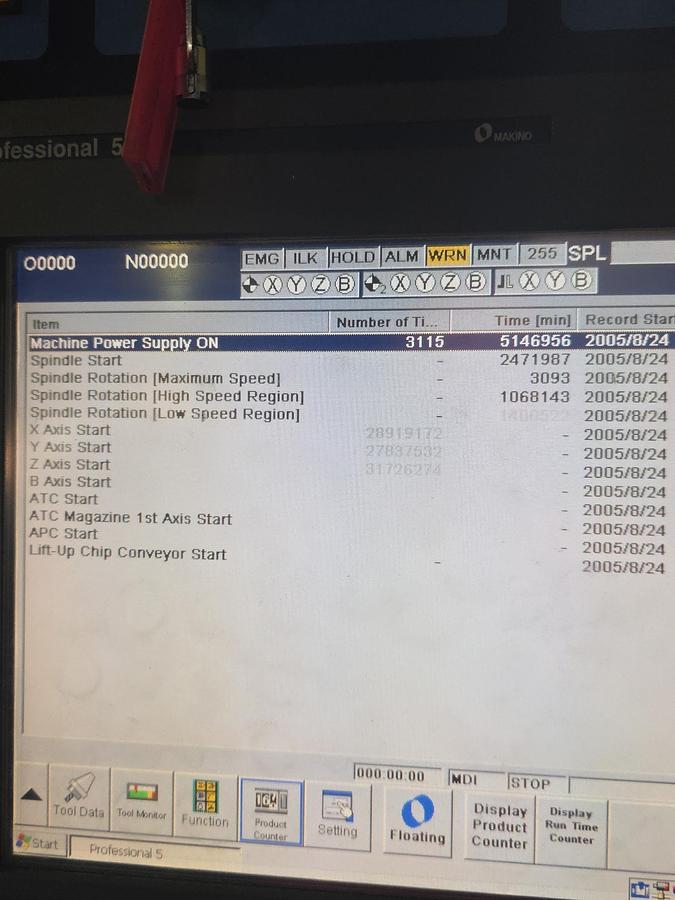

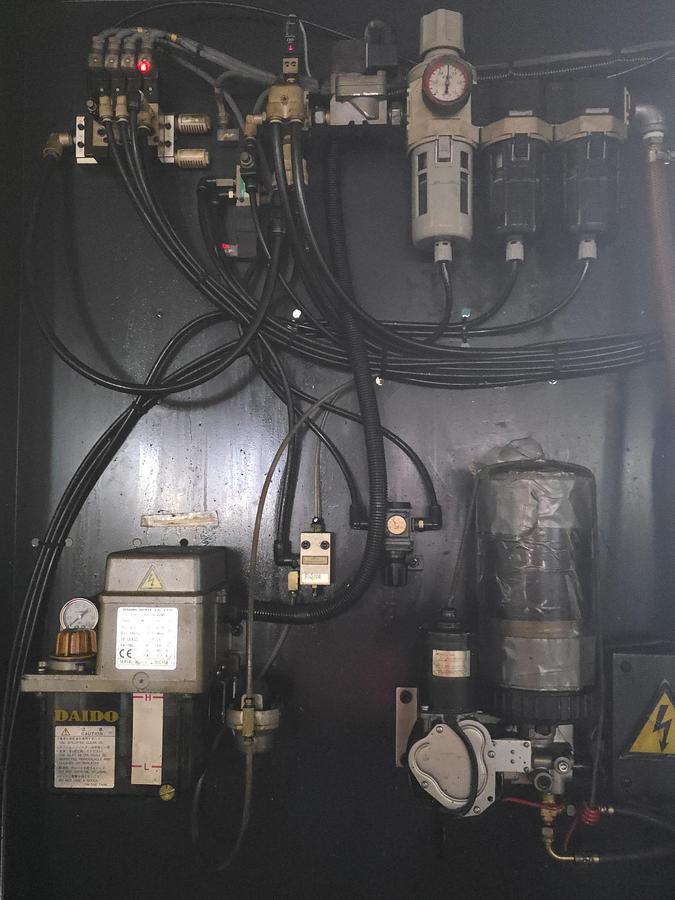

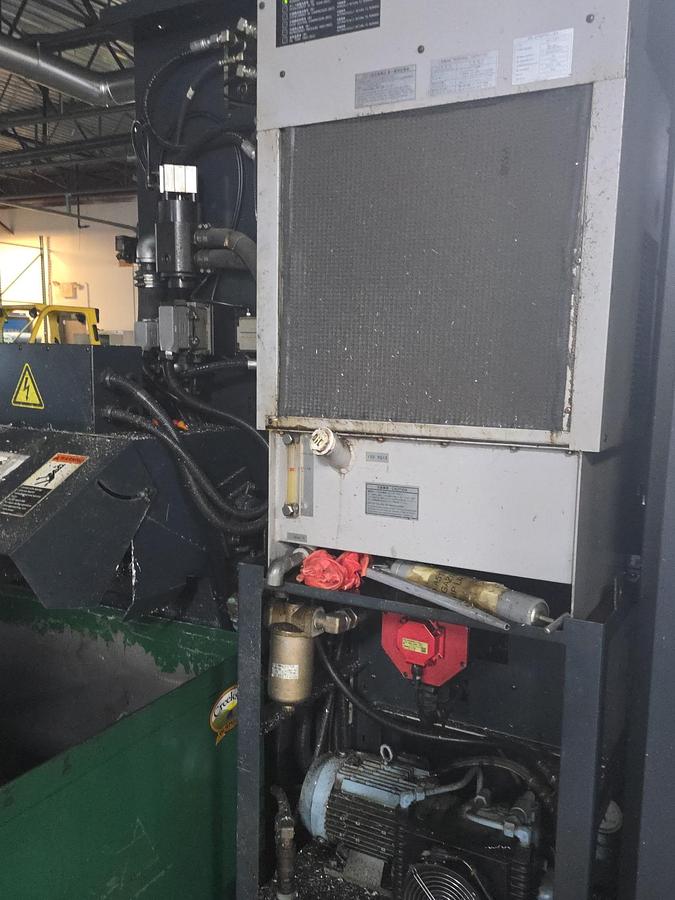

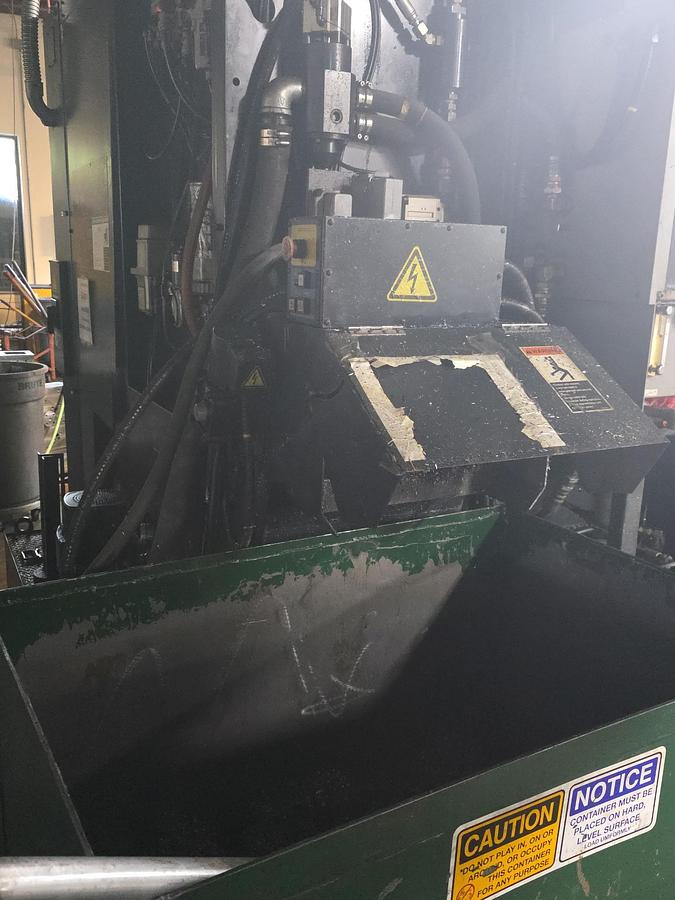

Pro5 CNC Control, Spindle Chiller, Lift Up Chip Conveyor/Coolant Tank, Over The Top

Hydraulics,Chip Augers, Helical Interpolation,
