2003 Daewoo Lynx 210A

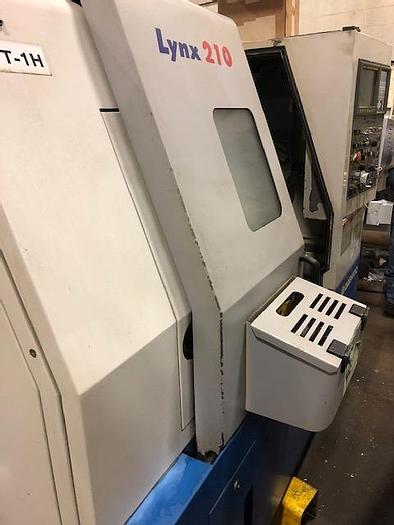

DAEWOO LYNX 210A CNC TURNING CENTER

NEW: 2003

S/N L2103J49

SPECIFICATIONS:

SWING OVER BED ............... 18.11"

SWING OVER SADDLE ............ 13.78"

MAX. MACHINING DIA. .......... 11.02"

MAX. WORK LENGTH ............. 11.81"

DRAW TUBE DIA. ............... 1.77"

X-AXIS TRAVEL ................ 6.30"

Z-AXIS TRAVEL ................ 13"

SPINDLE SPEED RANGE .......... 60-6000 RPM

SPINDLE NOSE ................. A2-5

SPINDLE BORE DIA. ............ 2.05"

NO. OF TOOL STATIONS ......... 12

OD TOOL HEIGHT ............... 1"

BORING BAR DIA. .............. 1.5"

INDEXING TIME ................ 0.15 sec.

RAPID TRAVERSE RATE .......... 629/944 IPM

SPINDLE MOTOR ................ 7.5/11 KW

APPROX. MACHINE DIMENSIONS ... 64" X 63" 65"

APPROX. WEIGHT ............... 7,000 LBS

EQUIPPED WITH:

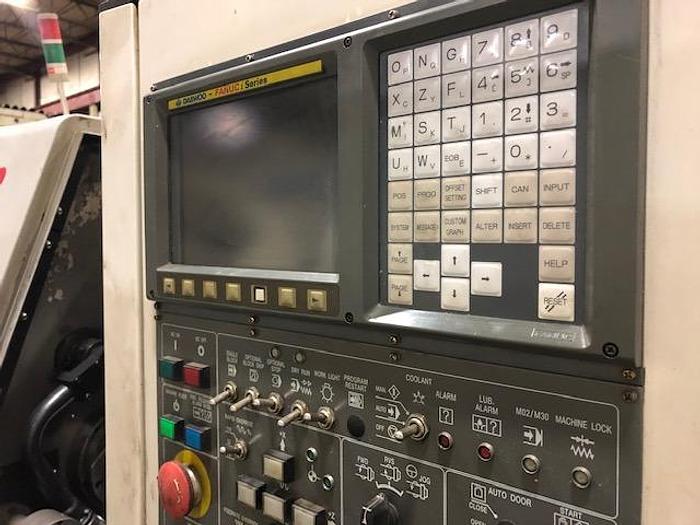

 - FANUC I series CNC CONTROL

 - TOOLSETTER

 - PARTS CATCHER

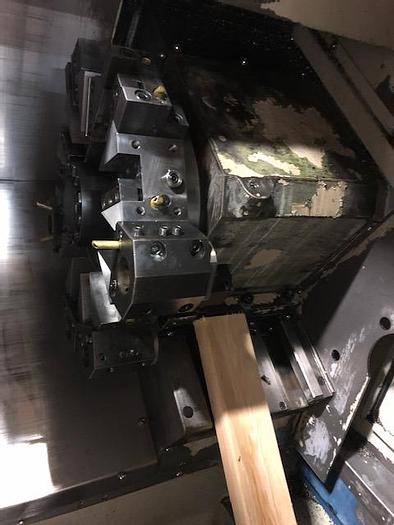

 - 12 POSITION TURRET
