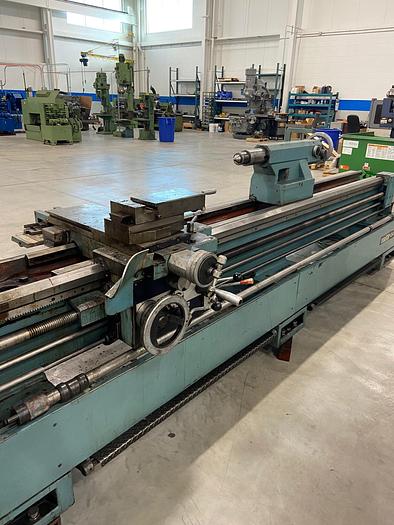

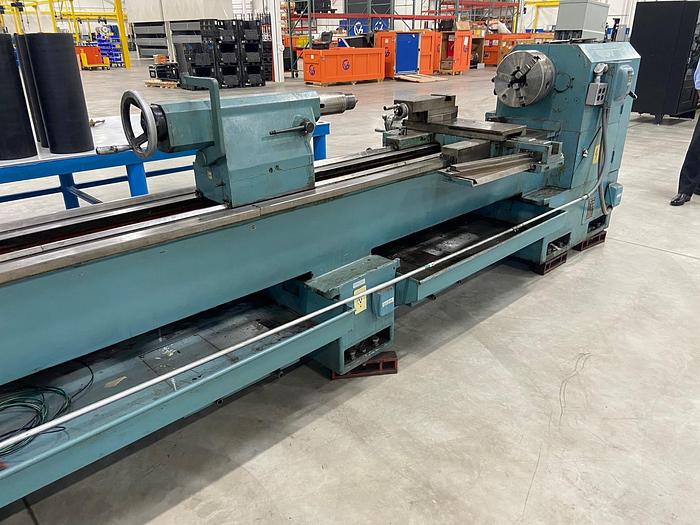

1993 Victor 24X120G

Victor 24x120

Condition:

used

Year:

1990’s

Serial number:

914077

Subcategory:

Engine lathe

Description

Swing over bed: 23-5/8"

Swing over cross slide: 15"

Swing over gap: 32-1/4"

Bed width: 16-1/2"

Distance between centers: 115"

Spindle bore diameter: 4-1/8"

Spindle bore taper: 108 x 1 : 20

Taper of center in sleeve: M.T. #5

Spindle nose: D1-11

Number of spindle speeds: 12 steps

Range of spindle speeds (rpm): 25 ~ 1,200 rpm

Speed selections: 25, 38, 53, 75, 108, 149, 214, 308, 424, 603,

860, 1200

Range of longitudinal feeds: 0.0012" ~ 0.0287" / rev

Range of cross feeds: 0.0004" ~ 0.0118" / rev

Inch threads: 2 ~ 56 TPI x 45 kinds

Cross slide travel: 13 "

Compound slide travel: 9"

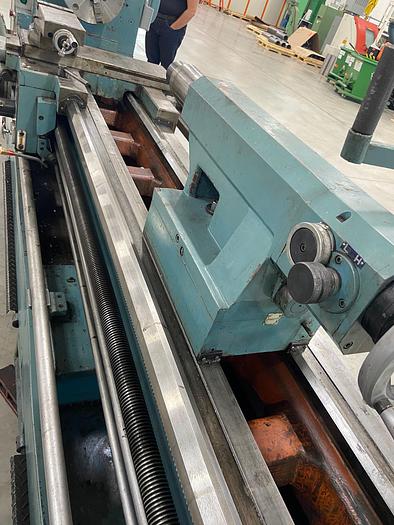

Tailstock taper center: M.T. #5

Tailstock quill travel: 7"

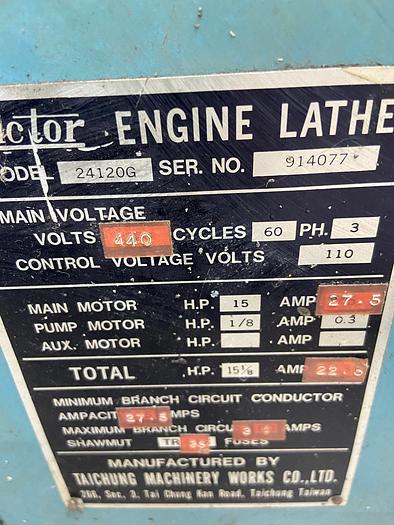

Main motor: 20 HP 3 PH

Coolant pump: 1/8 HP

Shipping dimensions: 190" x 54" x 75"

Gross weight: 10,010 lbs.
