1998 MORI SEIKI SL-150SMC

MORI SEIKI SL-150 SMC CNC SUB SPINDLE LIVE TOOL TURN MILL CENTER LATHE 1998

Equipped With:

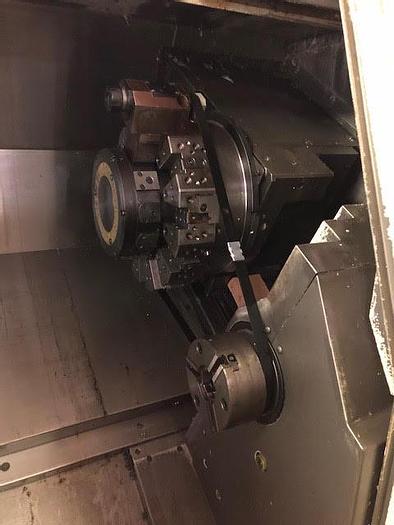

12-Station Turret – Live / Rotary Tools

Servo Controlled Full C-Axis on Both Spindles

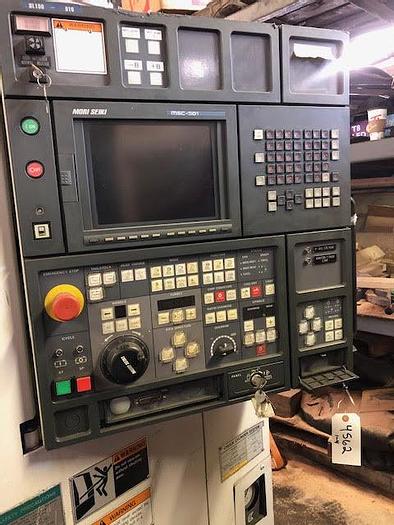

MSC-501(Fanuc 18iT) CNC Control

Tool Presetter

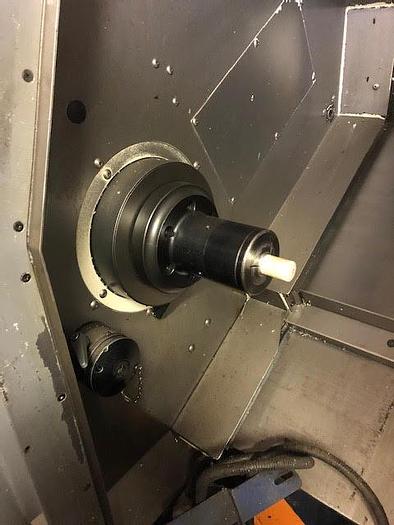

Collet 16C Chuck on Main Spindle

4" 3 jaw Chuck on Sub Spindle

Rigid Tapping on Both Spindles

Foot Operated Control for Chuck

Turbo Systems Chip Conveyor

Comes with Live Tools & some Static Tool Holders

Bar feed interface

(Optional short magazine bar feed)

Specifications:

Capacity:

Max Turning Diameter: 16.9"

Max Turning Length: 20.76"

Max Bar Capacity: 2.01"

Swing Over Bed: 24.4"

Swing over Cross Slide: 17.9"

Travels:

X Axis Travel: 9.1"

Z Axis Travel: 20.5"

B Axis Travel: 16.9" ( Sub Spindle )

C Axis: 0.001

Feedrate:

Rapid Traverse X Axis: 707 IPM

Rapid Traverse Z Axis: 945 IPM

Rapid Traverse B Axis: 945 IPM

Spindle:

Main Spindle Bore: 2.2″

Sub Spindle Bore: 1.69″

Main Spindle Nose: A2-5

Sub Spindle Nose: A2-5

Main Spindle Speed: 40-5000 RPM

Sub Spindle Speed: 40-5000 RPM

Main Spindle Power: 15 HP

Sub Spindle Power: 10 HP

Live Tool Spindle Motor: 5 hp

Turret:

Capacity: 12 Live Stations Turret

Index Time: 1 second

Live Tool Speed: 3000 RPM

General:

Power: 37.9 kVA, 220v / 3-Phase Overall

Dimensions: 92" x 71" x 72" High
