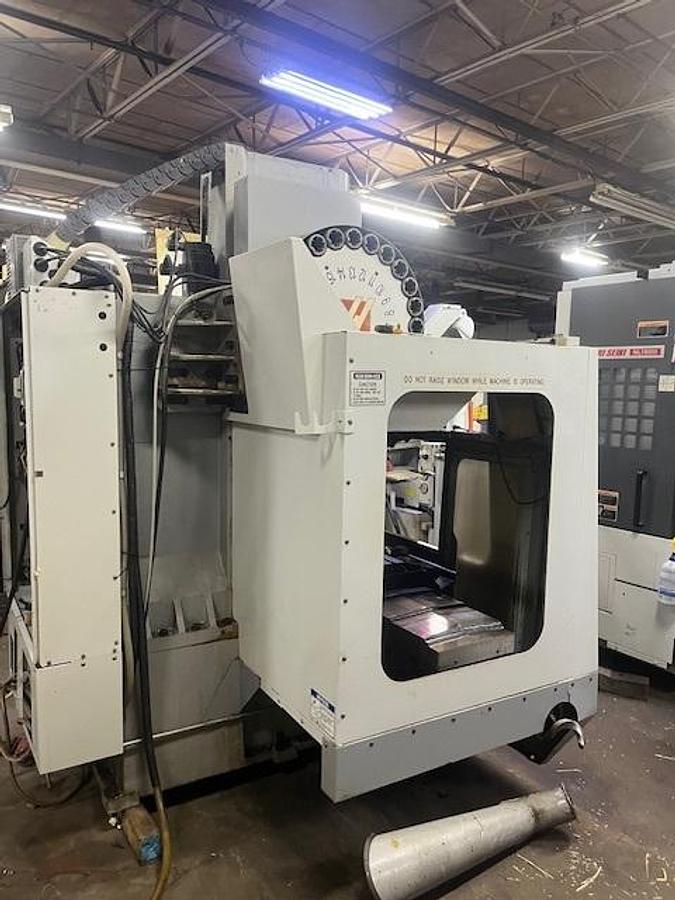

2006 Haas VF-2SS

The 2006 Haas VF-2SS Super Speed Vertical Machining Center offers high-precision capabilities with its robust design and versatile functionality. It features a travel range of 30" on the X-axis, 16" on the Y-axis, and 20" on the Z-axis. The machine's table measures 36" in length by 14" in width, capable of handling a maximum weight of 1,500 lbs evenly distributed. The spindle is powered by a 30 HP motor, reaching speeds up to 12,000 RPM with a BT40 taper, bolstered by an inline direct-drive system for efficient performance. Rapid feed rates of 1,000 inches per minute on all axes enhance productivity, while the automatic 24+1 tool changer supports quick transitions with an average tool-to-tool time of 1.6 seconds. Equipped with Haas CNC Controls and expanded memory of 16 MB, the VF-2SS includes features such as 4th axis drive, rigid tapping, and high-speed machining. The machine's coolant system has a capacity of 55 gallons to ensure efficient operation. Additional functionalities include a programmable coolant nozzle, a remote jog handle, a visual quick code probing system (without a probe), and high-intensity lighting for improved operational visibility. The VF-2SS is designed for heavy-duty tasks, weighing approximately 8,000 lbs and requiring an air supply of 4 SCFM at 100 PSI, making it an efficient tool for advanced machining applications.

2006 Haas VF-2SS Super Speed Vertical Machining Center

SPECIFICATIONS:

Travels

X-Axis 30"

Y-Axis 16"

Z-Axis 20"

Spindle Nose to Table (- min) 4"

Spindle Nose to Table (- max) 24"

Table:

Length 36"

Width 14"

T-Slot Width 5/8"

T-Slot Center Distance 4.92"

Number of Std T-Slots 3

Max. Weight on Table (evenly distributed) 1,500 lbs.

Spindle:

Max. rating 30 HP

Max. speed 12,000 RPM

Max. Torque 90 ft-lb @ 2000 RPM

Drive System inline direct-drive

Taper BT40

Bearing lubrication Air/Oil injection

Cooling Liquid/Cooled

Feedrates:

Rapids on X 1000 in/min

Rapids on Y 1000 in/min

Rapids on Z 1000 in/min

Max. Cutting 833 in/min

Tool Changer:

Type SMTC

Capacity 24+1

Max. Tool Diameter (adjacent empty) 5"

Max. Tool Diameter (full) 3"

Max. Tool length (from gage line) 11"

Max. Tool weight 12 lb.

Tool-to-Tool (avg) 1.6 sec.

Chip-to-Chip (avg) 2.2 sec.

General:

Air required 4 scfm, 100 PSI

Coolant capacity 55 gal

Machine weight 8,000 lbs

EQUIPPED WITH:

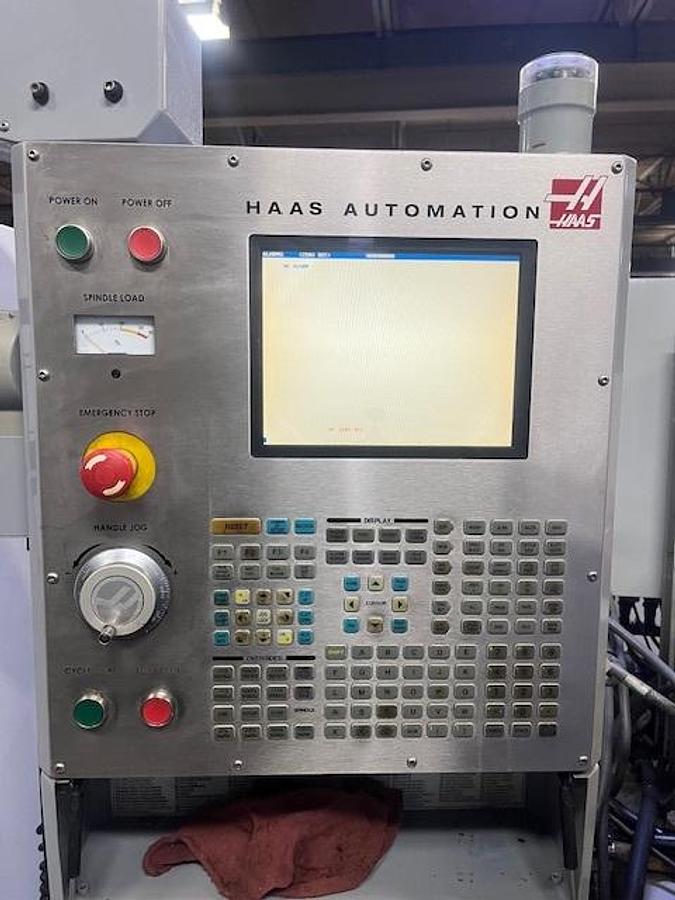

Haas CNC Controls

Side Mount 24 Position Automatic Tool Changer

12,000 RPM Inline direct drive Spindle

Expanded Memory 16 MB

4th Axis Drive

Coolant System

Rigid Tapping

High Intensity Lighting

Rotation & Scaling

High Speed Machining

Macros

Programmable Coolant Nozzle

Remote Jog handle

Spindle Orientation

Visual Quick Code Probing System (No probe)
