2017 Mori Seiki Sprint 32/8

32MM DMG Mori Sprint 32/8 CNC Multiaxis Swiss Type Automatic Lathe, New 2017

SPECIFICATIONS:

SPINDLE HOLE DIA          1.3"

POWER         7.5 hp

RPM   8,500 RPM

# AXIS          8

CONTROL    CNC (FANUC 32i-B Plus)

Machine concept

Number of linear axes + C-axes 6 + 2

Number of spindles 2

Number of channels 2

Main spindle

Maximum bar capacity mm | in 32 | 1.26

Speed rpm 8,500

Power (S2 30 min/S1) kW | hp 7.5/5.5 | 10.1/7.4 S2 15 min/S1

Torque (S2 30 min/S1) Nm | ft lbs 51.9/40.4 | 38.3/29.8 S2 15 min/S1

Counter spindle

Maximum bar capacity mm | in 32 | 1.26

C-axis (0.001°)

Speed rpm 8,500

Power (S2 30 min/S1) kW | hp 3.7/2.2 | 5.0/3.0

Torque (S2 30 min/S1) Nm | ft lbs 23.6/14 | 17.4/10.3

Working area/ travels

Z1 travel (spindle travel) mm | in 100 | 3.94

Tool carrier 1: X1/Y1 travel mm | in 70/405 | 2.76/15.94

Counter spindle: X2/Z2 travel mm | in 300/200 | 11.81/7.87

Tool carrier 2: Y2 travel mm | in 135 | 5.31

Rapid traverse speed on linear axes

X1, Z1, X2, Z2/Y1, Y2 m / min | in/ min 40/30 | 131/98

Acceleration in linear axes m /s² | ft 5 | 0.02

Tool holder on slide 1

Fixed turning tools 6

Tools for front machining/back-working 4/4

Driven tools 2 + 2

Maximum speed rpm 6,000

Power (S3 40 % /S1) kW | hp 1.9/1 | 2.5/1.3

Maximum torque (S3 40 % /S1) Nm | ft lbs 3.5/3 | 2.6/2.2

Maximum speed rpm 4,000

Power (S3 40 % /S1) kW | hp 1.9/1 | 2.5/1.3

Maximum torque (S3 40 % /S1) Nm | ft lbs 5.25/4.5 | 3.9/3.3

Tool holder on slide Y2 On station for back working

Fixed/driven tools for back-working 4/4 (5/4)*

Maximum speed rpm 6,000

Power (S3 40 % /S1) kW | hp 1.9/1 | 2.5/1.3

Maximum torque (S3 40 % /S1) Nm | ft lbs 3.5/3 | 2.6/2.2

Tool holder on slide 2

Fixed/driven tools for back-working 2/0 (0/2)* (0/1 for polygons)*

Maximum speed rpm 4,250

Power (S3 40 % /S1) kW | hp 1.9/1 | 2.5/1.3

Maximum torque (S3 40 % /S1) Nm | ft lbs 3.5/3 | 2.6/2.2

Machine

Footprint m² | ft² 2.8 | 30.1

Machine height mm | in 2.085 | 82.09

Machine weight (including coolant tank) kg | lbs 3,550 | 7,826

Control system

DMG MORI SLIMline Control with 10.4″ monitor FANUC 32i

Automatic turning with 6 linear axes and 2 C-axis

Main spindle with 8,500 rpm, 29.8 ft lb, 7.4 hp

Counter spindle with 8,500 rpm, 10.3 ft lb, 3 hp

8 driven tool stations as standard

Driven tools spindles 6,000 rpm, 2.2 ft lb, 1.3 hp

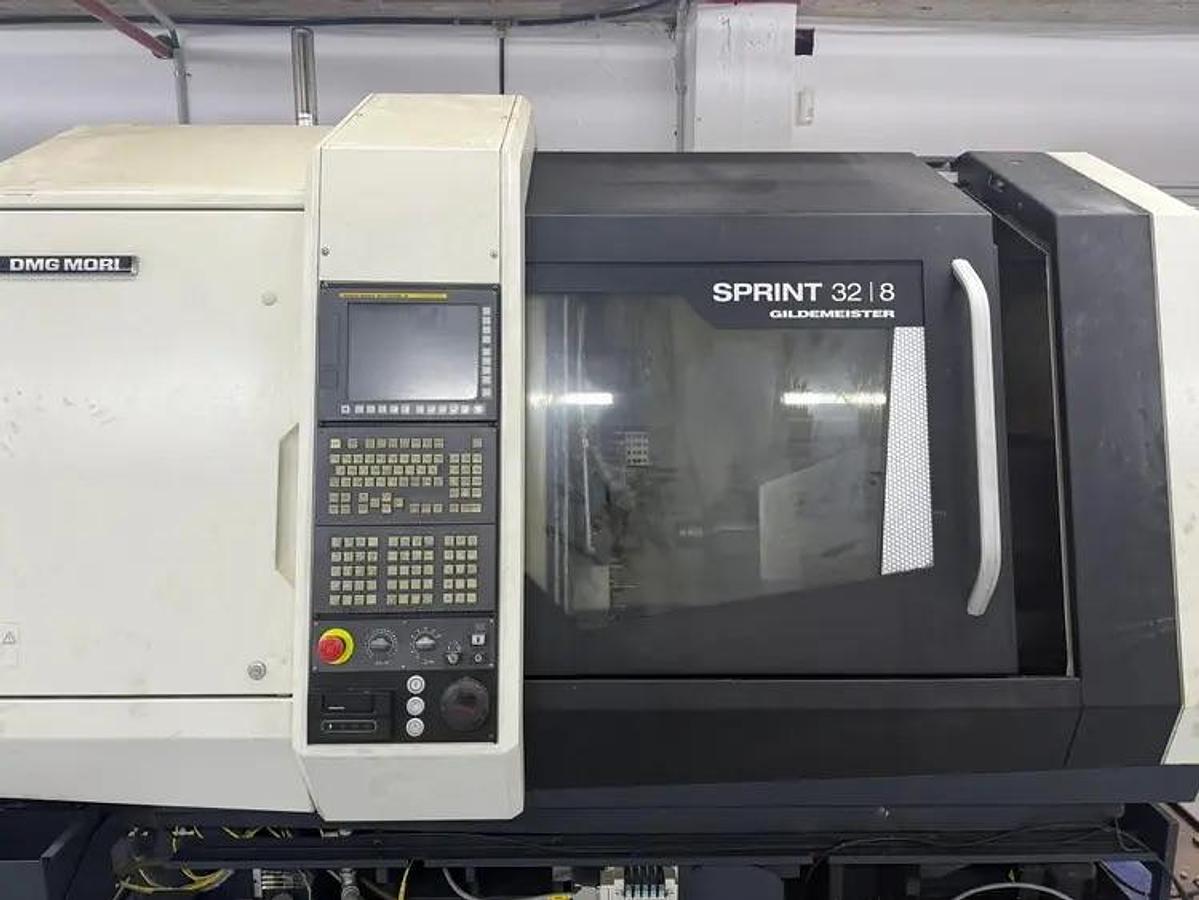

Control panel with 10.4" color display and FANUC 32i-B Plus

2 control channels, 6 linear axes and 2 C-axes

Tool Monitoring System with graphical tool load display as option

Up to 2 tools working simultaneously

EQUIPPED WITH:

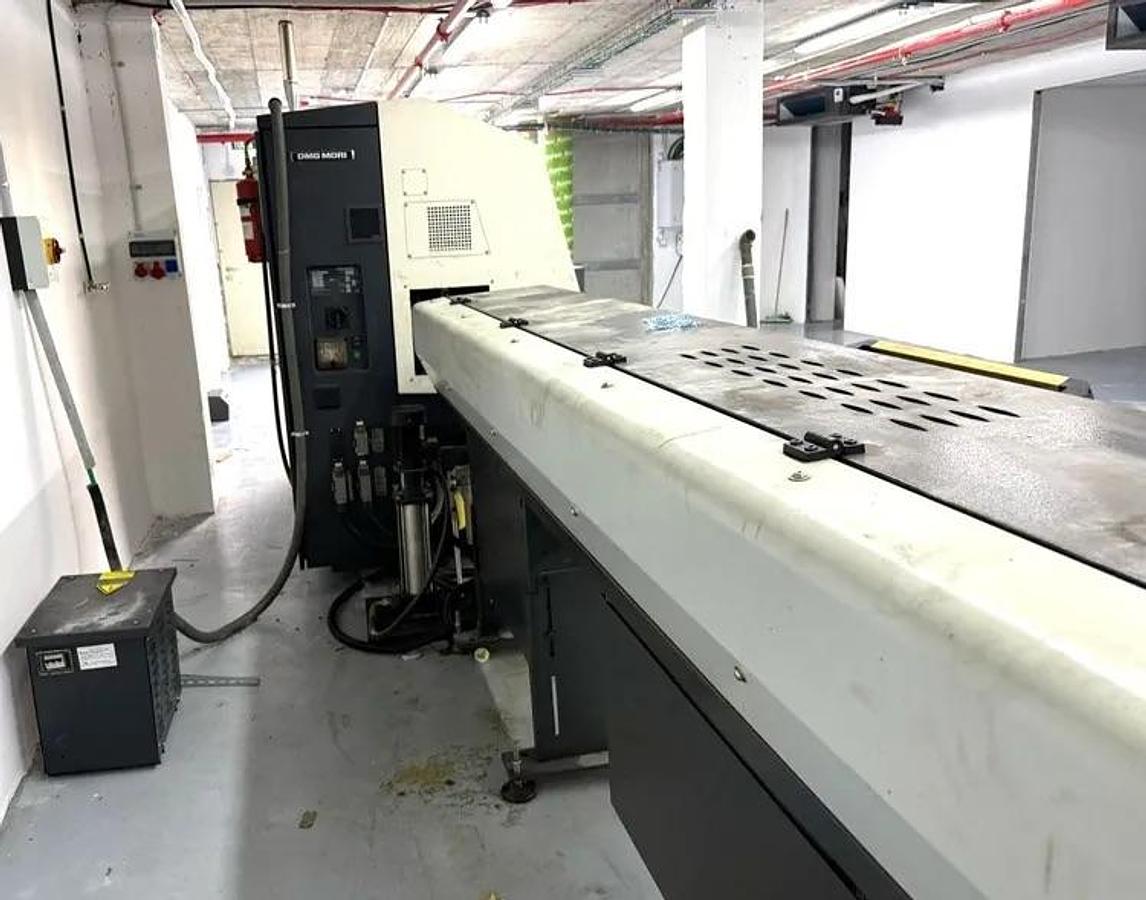

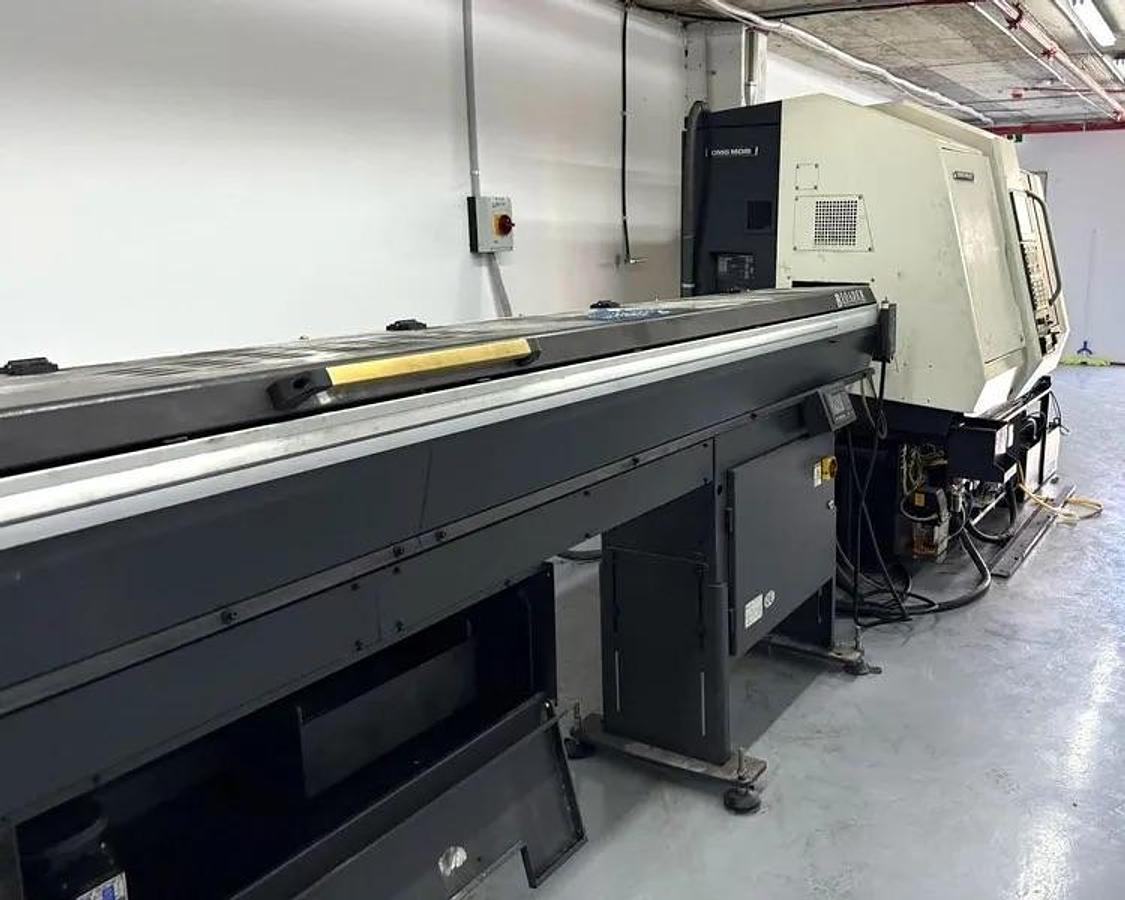

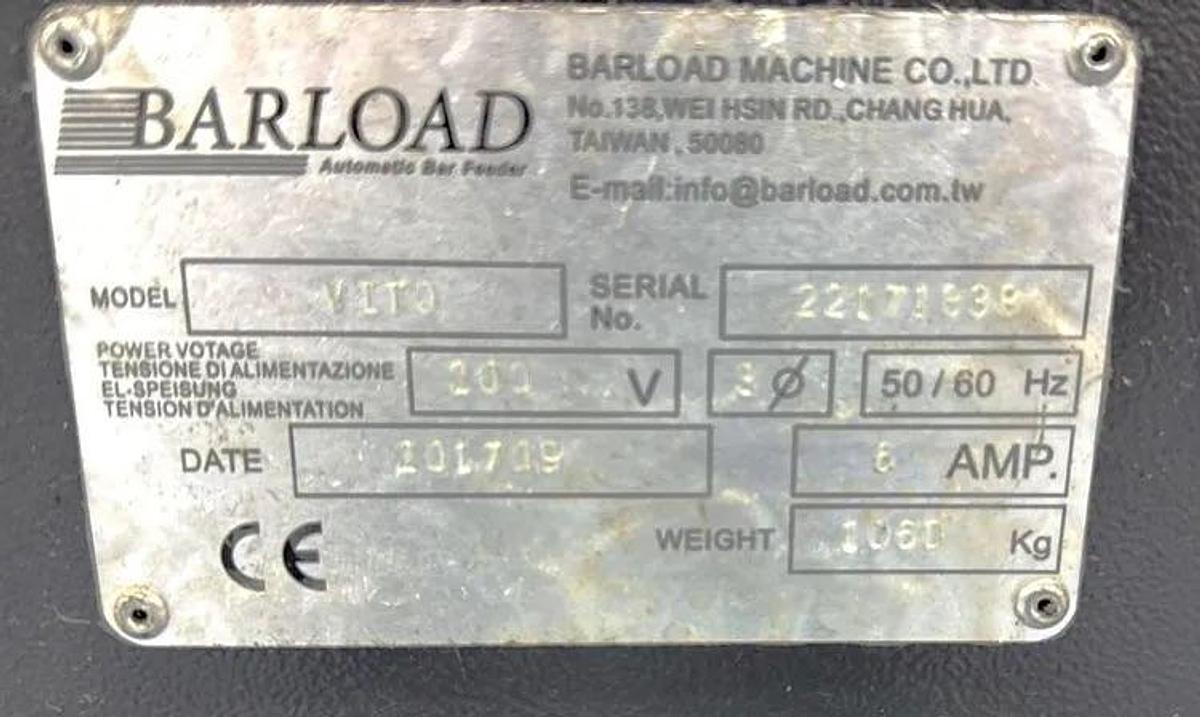

BarLoader Bar Feed

Sliding Headstock

Belt Type Chip Conveyor

*Specifications Subject to Buyer Verification
