2013 KOMATSU TLM 610

Description

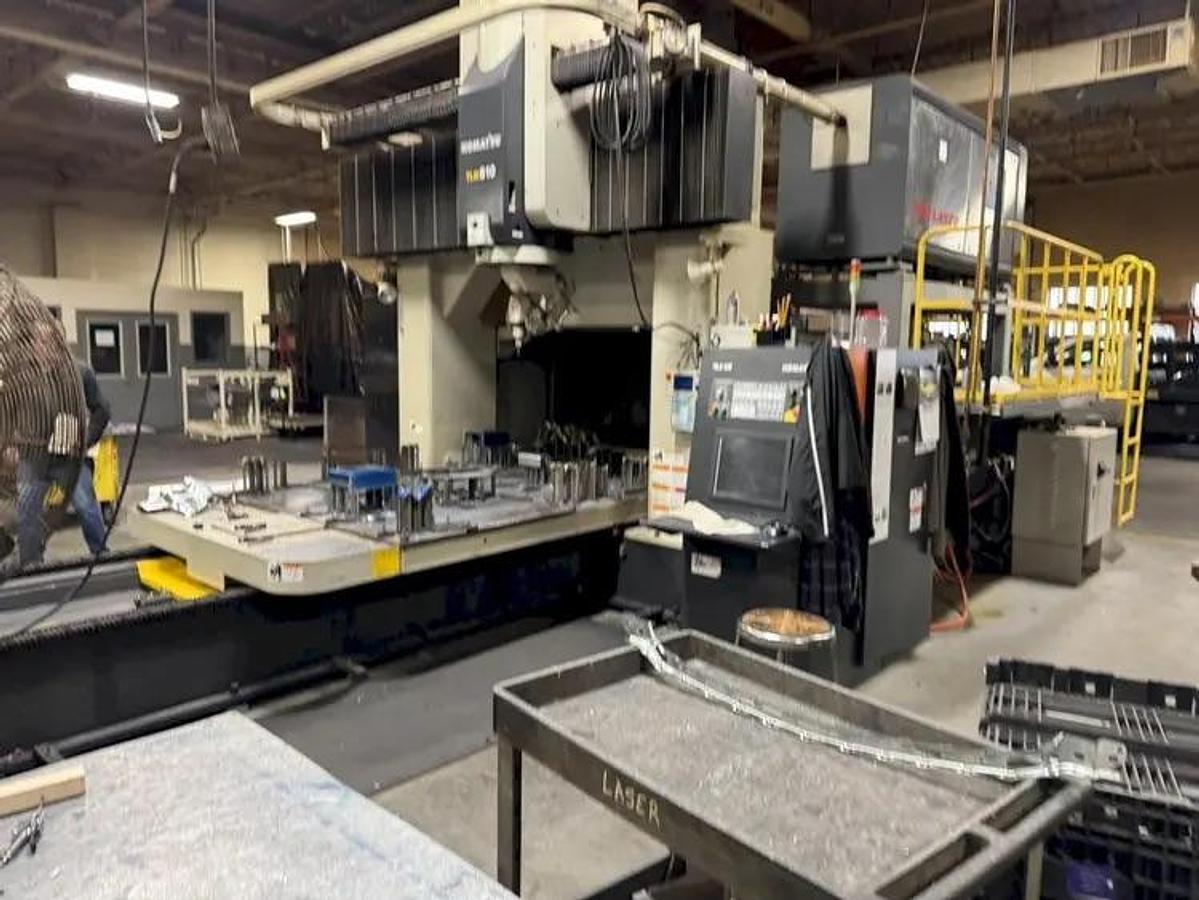

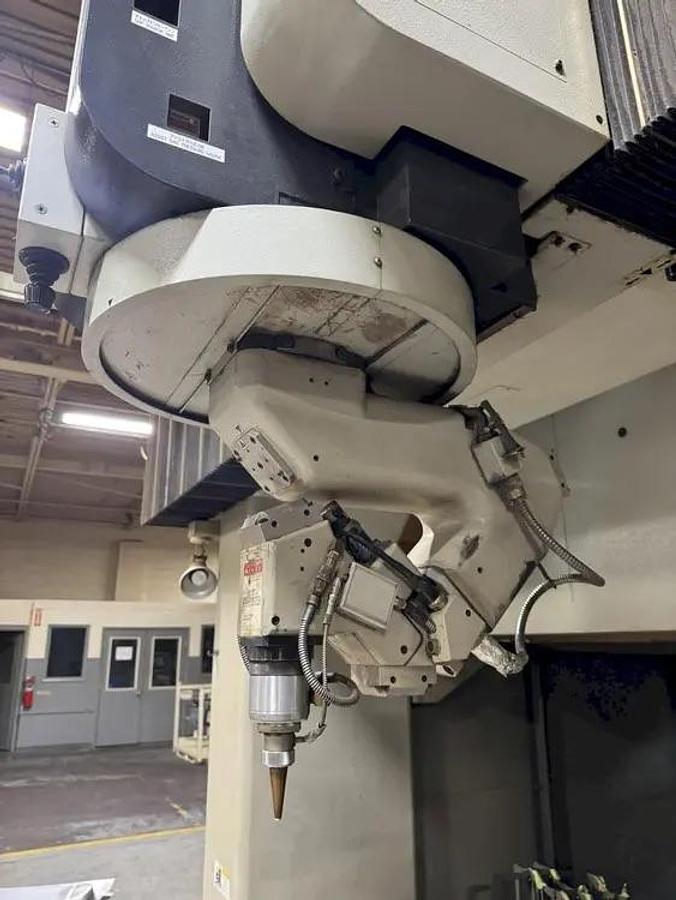

USED KOMATSU / NTC 3,300 WATT CO2 5-AXIS CNC LASER MODEL TLM 610, Year: 2013

Specifications

Brand: Komatsu / NTC

Model: TLM 610

Specifications:

Table size: 75" x 122" (1900mm x 3100mm)

Table height: 27.5" (700mm)

X-axis stroke: 122" (3100mm)

Y-axis stroke: 75" (1900mm)

Z-axis stroke: 31" (800mm)

C-axis: +/- 200 degrees

A-axis: +/- 180 degrees

X, Y axis rapid feed rate: 1,378 IPM (35,000 mm per min)

Z-axis rapid feed rate: 1,181 IPM (30,000 mm per min)

C,A axis rapid feed rate: 15mm 200 degrees per second

X, Y, Z-axis cutting feed rate: 1.2 - 1,181 IPM (30mm - 30,000mm per min)

C, A-axis cutting feed rate: MAX 200 degrees per second

Laser power: 3,300 watt CO2

Drive motor: AC servo

Drive mechanism: Ball screw

Guide mechanism: Linear ball guide

Floor space: 168" x 308" (4,250mm x 7,820mm)

Machine weight: 33,075 Lbs. (15,000 KG)

Equipped With

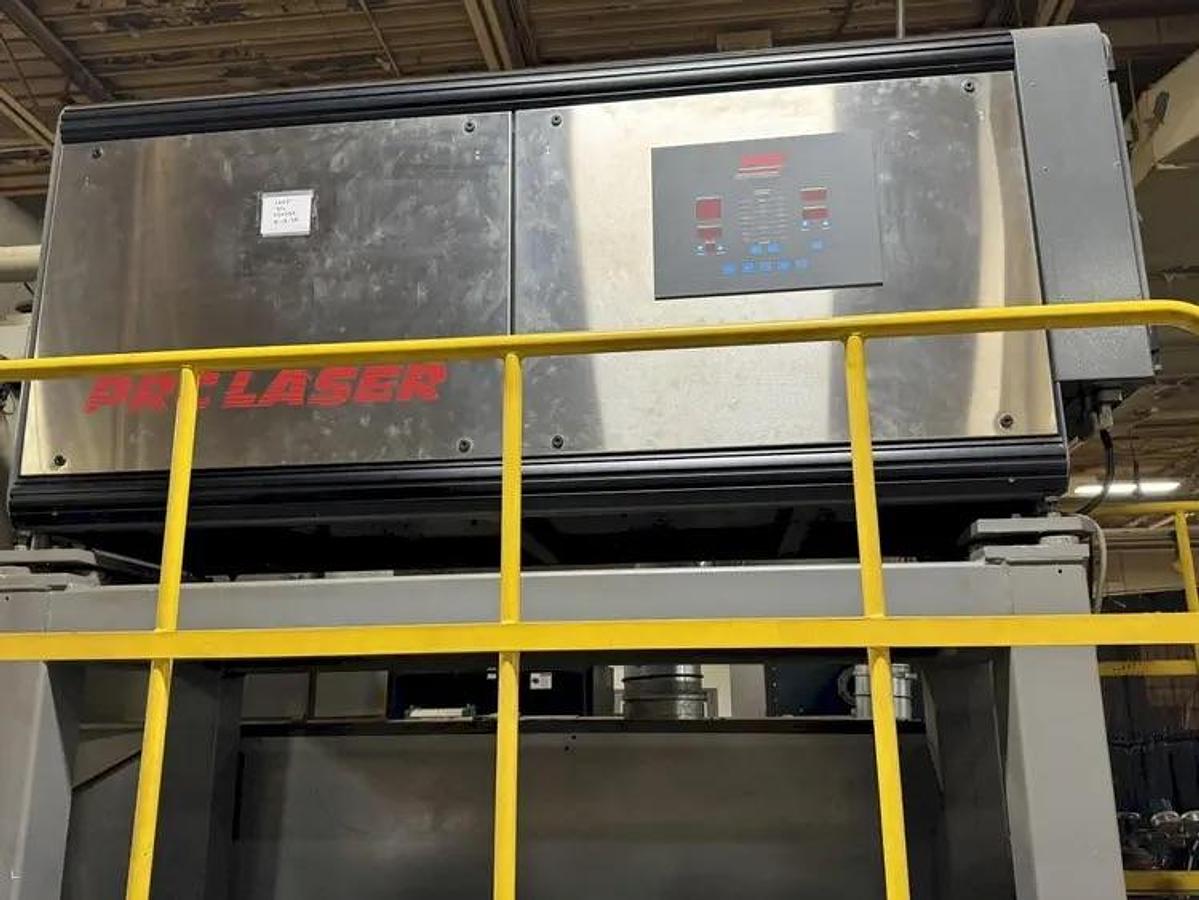

PRC 3,300 watt CO2 laser generator

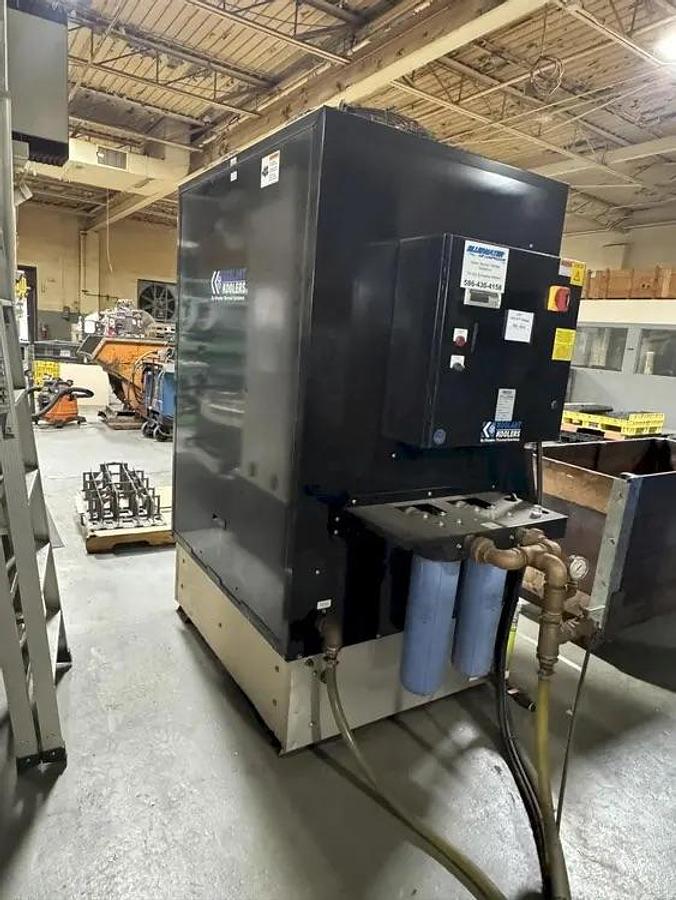

Koolant Koolers chiller

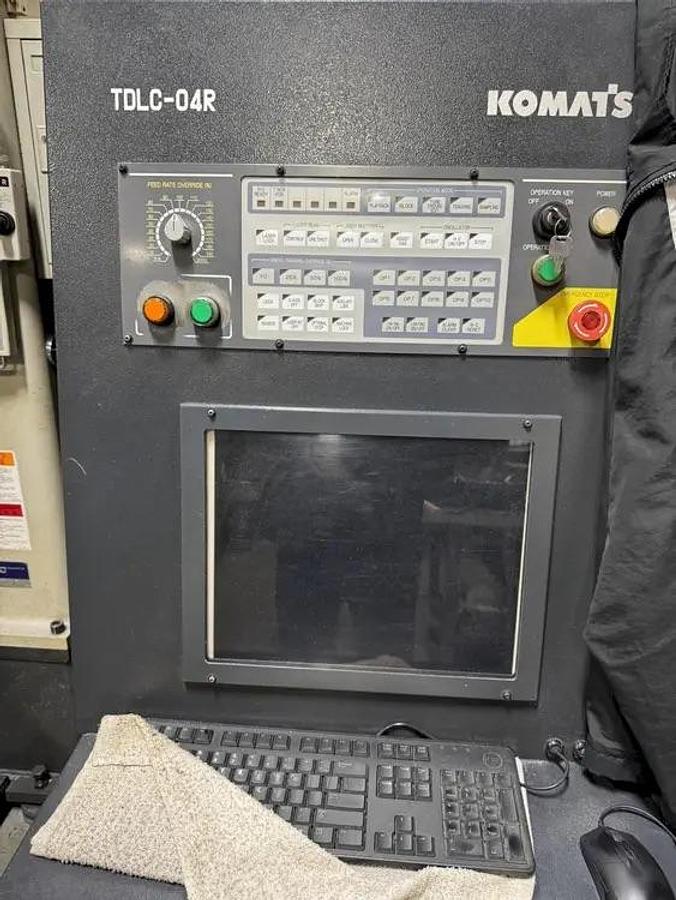

TDLC-04R CNC control

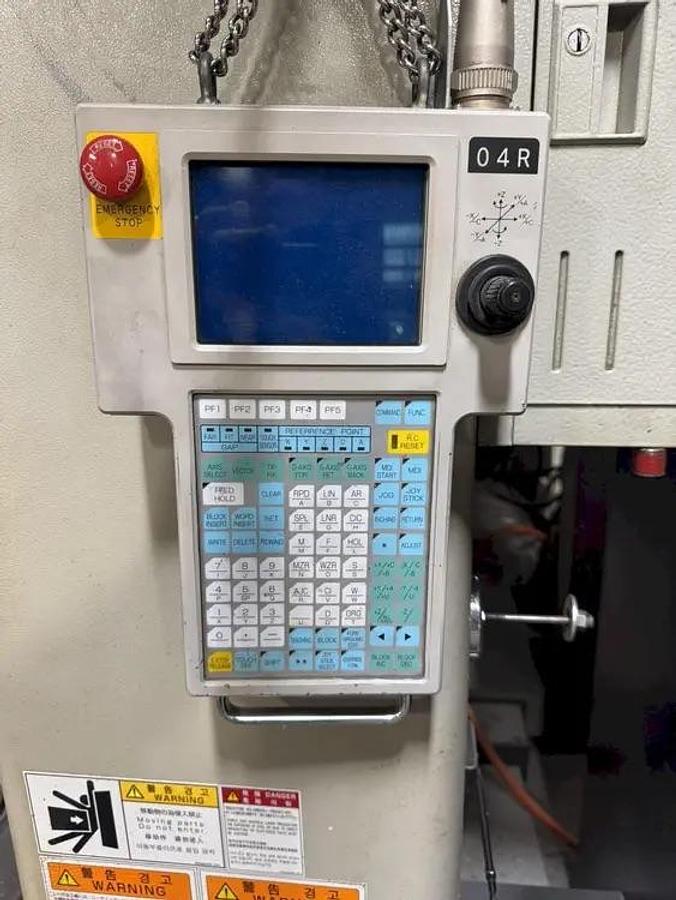

Pendent control

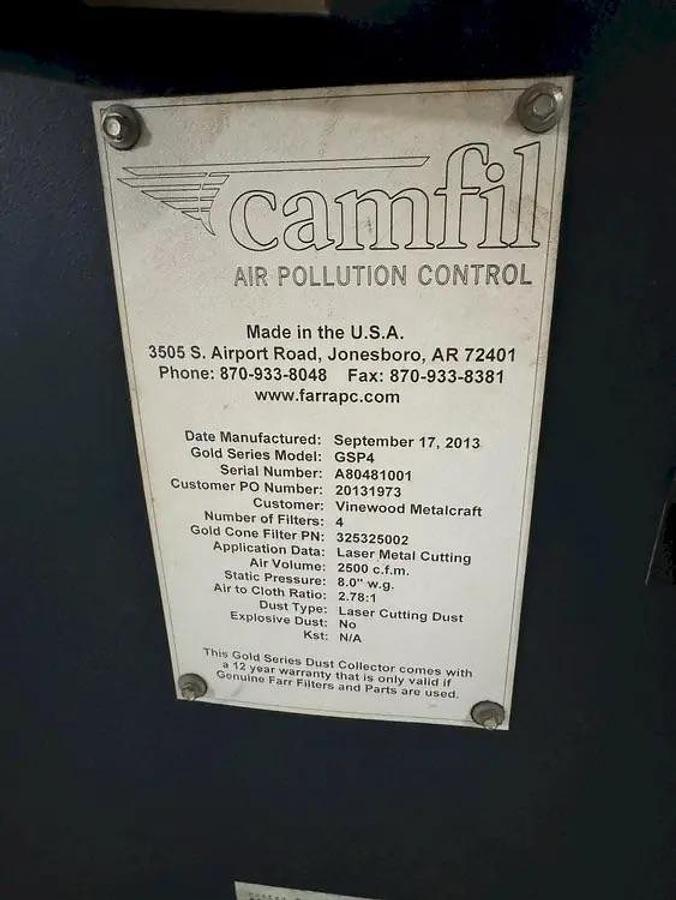

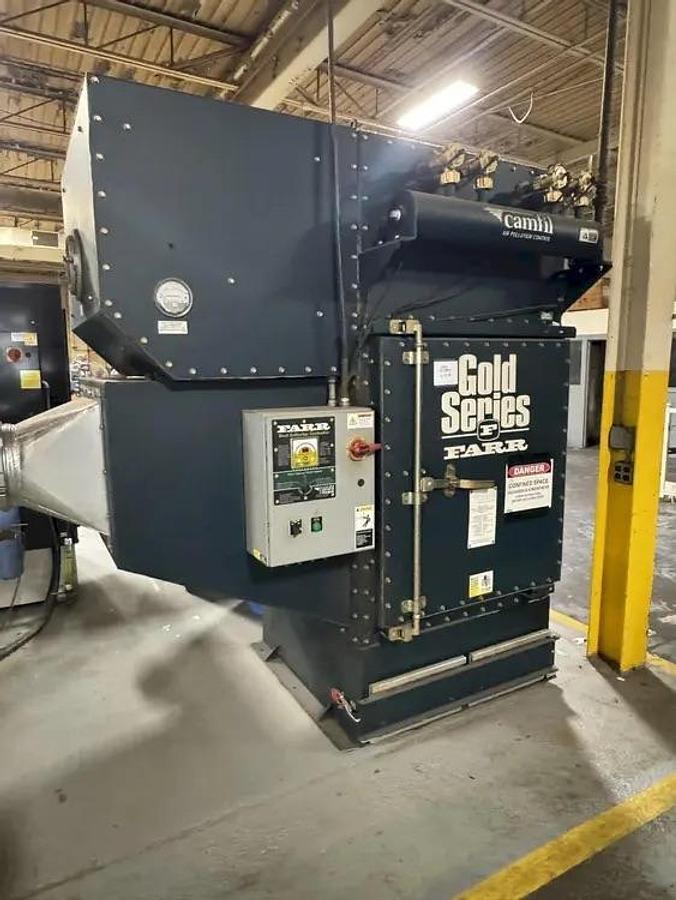

Farr gold series #GSP4 dust collector

Approx hours: 11,649
