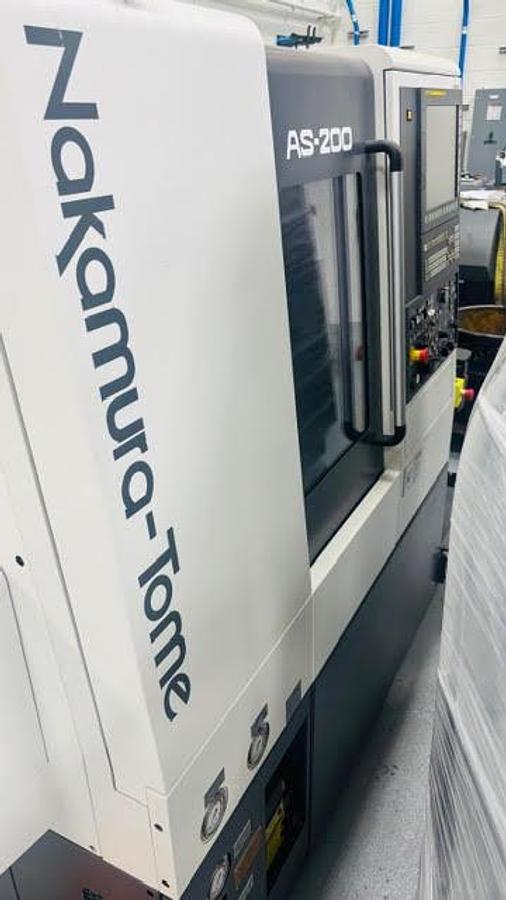

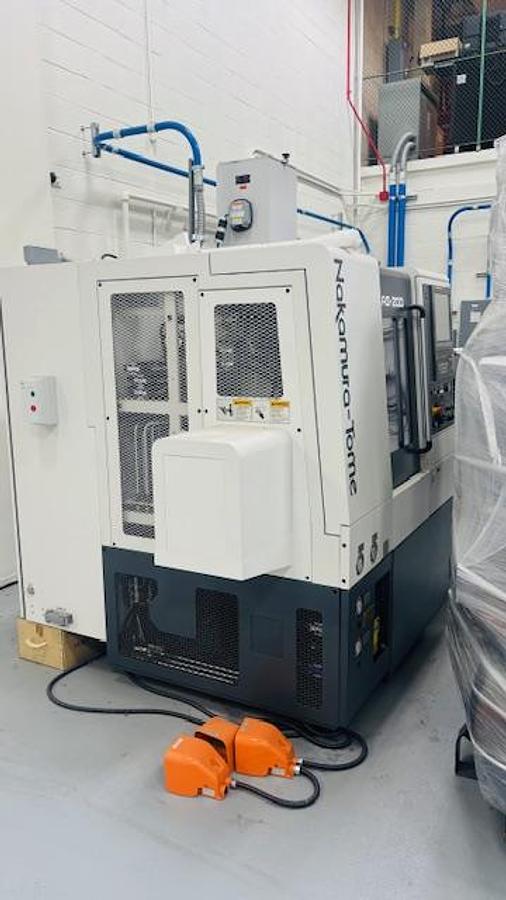

2022 NAKAMURA-TOME AS-200MY

Nakamura-Tome AS-200MY, 4,500 RPM

CNC Turning Center 2022

Nakamura-Tome AS-200MY, CNC Turning Center with Fanuc 0i-TF CNC Control, as per specifications attached including:

• 4500 RPM Spindle Speed - 15/20 HP Fanuc Spindle Motor • Rigid Tapping for Milling Turret (Standard on 2.5" Bar Capacity Machines) • 12 Station Bolt-on Turret With 1⁄2 indexing for 24 Tool Capacity • 2.5" Bar Capacity - Left Spindle • Bar Feeder Interface • Prepped for tool setter • Chuck Open/Close Foot Switch • Helical Interpolation • Full "C" Axis Milling Unit • NT Nurse II System • NT Work Navigator • Safety Interlock for chucking failure • Spindle Speed Override • Splash Guards with Safety Door Interlock • High Volume Grundfos Pump • Standard Tool Package • Work Light • Y Axis Travels Unit +/-1.61"

Right Hand Side Discharge

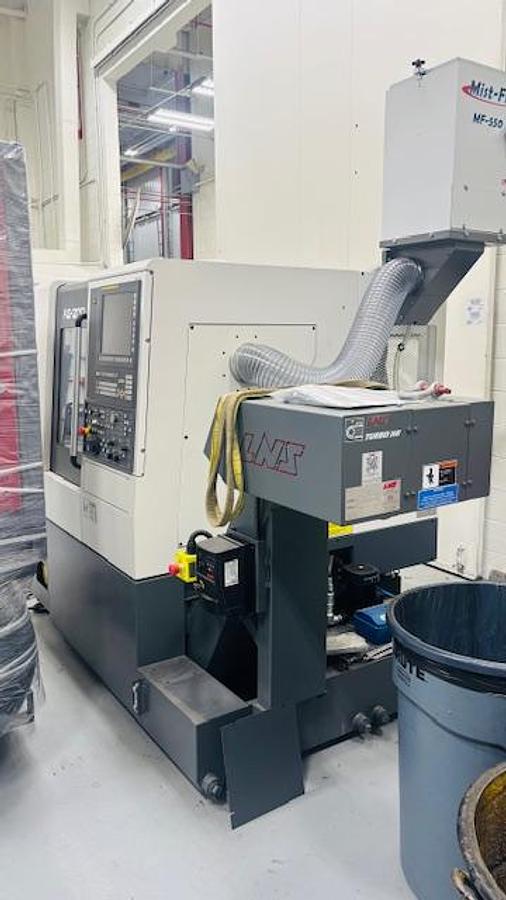

Mist Collection

Kitagawa 8” 3 Jaw Chuck

Tailstock MT4 70mm Travels

Live Tooling (1) ER 25

Live Tooling (1) ER 25

STANDARD MACHINE

Dimensions: 80.0” x 67.6” x 72.9” (standard) Floor Space: 80.0” x 67.6”

Machine Weight: 6,835 lbs.

Noise Level: Less than 80dBA

*Measured at 3.9 ft. from floor and 3.2 ft. aside from machine

CAPACITY

Bar Capacity .................................................................................................................2.5”

Chuck Size....................................................................................................................8.0”

Swing Over Bed........................................................................................................15.74”

Swing Over Saddle...................................................................................................12.59”

Turning Diameter........................................................................................................13.4”

Maximum Turning Length.........................................................................................11.81”

MAIN SPINDLE

Drive Motor ............................................. FANUC Spindle Motor 15/20 HP (AC 15/11kW) Drive Motor Torque....................................................................110/61 Nm (81/50 Ft. Lb.) Speed Range................................................................................................. 50-4500 rpm Number of Steps....................................................................................................stepless

Designation..................................................................................... rpm direct designation Spindle Nose .............................................................................................................. A2-6 Hole through Spindle ..................................................................................................3.15”

Hole through Draw Tube ............................................................................................2.60”

Front Bearing Inner Diameter.....................................................................................4.33”

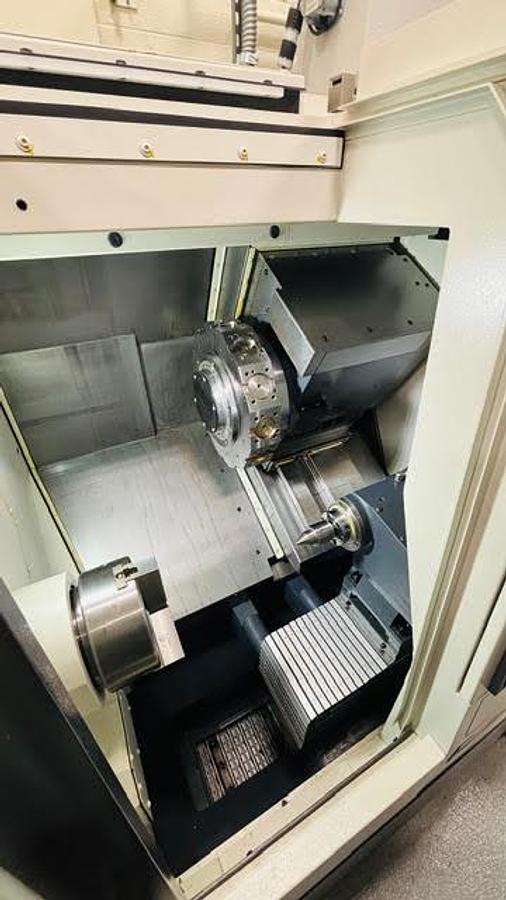

Turret Head Type.........................................................................dodecagonal drum turret Number of Rotating Tool .................................................................................12 positions Number of Index Positions ..............................................................................24 positions Drive Motor (50% ED/Continuous) .....................................................................5/7.37 HP Spindle Speeds..................................................................................80-6000 min-1 (rpm) Constant Torque................................................................................................... 23.6 Nm Rotating Tool Size Face/Cross Drill (collet AR25-d) ..................................................................... 3/64” - 5/8”

Cross Offset Drill (collet AR11 - 1) ............................................................. 3/64” - 17/64”

Width Across Flats....................................................................................................14.76”

Turret Thickness .........................................................................................................3.15”

Tool Size:

Square .........................................................................................................1” x 1”

Round .............................................................................................................1 1⁄4”

Index Time:

For 1 Station ........................................................................................ 0.2 second For 180 Degrees (6 Stations) .............................................................. 0.7 second Turret Clamping Force........................................................................................ 9,913 lbs.

Index Drive with Direction Logic ......................................................................servo motor Positioning via........................................................................................... Curvic Coupling Y-AXIS Y-Axis Stroke.........................................................................................+/-1.6” (+/-41 mm) Rapid Speed................................................................................236”/min (6000 mm/min) Cutting Speed...................................................................... 314”/min (1 to 8000 mm/min) Feed Motor ................................................................................................ 1.6 HP (1.2kW) Ball screw diameter ..................................................................................... 1.25” (32 mm) Ball screw lead................................................................................................. .24” (6 mm) Thrust force............................................................................................... 5880N (600Kgf)
