2004 NAKAMURA-TOME WT-150MMY

The 2004 Nakamura-Tome WT-150MMY is a versatile and robust multi-axis CNC turning center known for its precision and efficiency. Equipped with seven axes and driven by a Fanuc 18iTB control system, it offers advanced functionality for complex machining tasks. The machine features a 6" chuck size and a 2" bar capacity, ideal for handling a variety of workpieces. Capable of reaching a maximum of 4,000 RPM with its 15 hp spindle motor, the lathe ensures efficient and consistent operation. Additionally, it has a turning diameter of 12" and a machining length of 42", allowing for flexibility in machining larger parts. The machine's overall dimensions are 152" x 92" x 98" and it weighs approximately 23,000 lbs. This model includes two upper 12-station bolt-on turrets and one lower turret with full "C" axis milling capabilities facilitated by a 5HP milling motor. The machine highlights include a parts catcher, rotating tool speeds up to 6,000 RPM, and a Y-axis stroke of +/- 1.18". Standard features such as polygon turning, rigid tapping, and a leveling jig underscore its capability for demanding production environments.

Nakamura-Tome WT-150-II (MMY) Multi-Axis CNC Turning Center Lathe

Year of Mfg. 2004

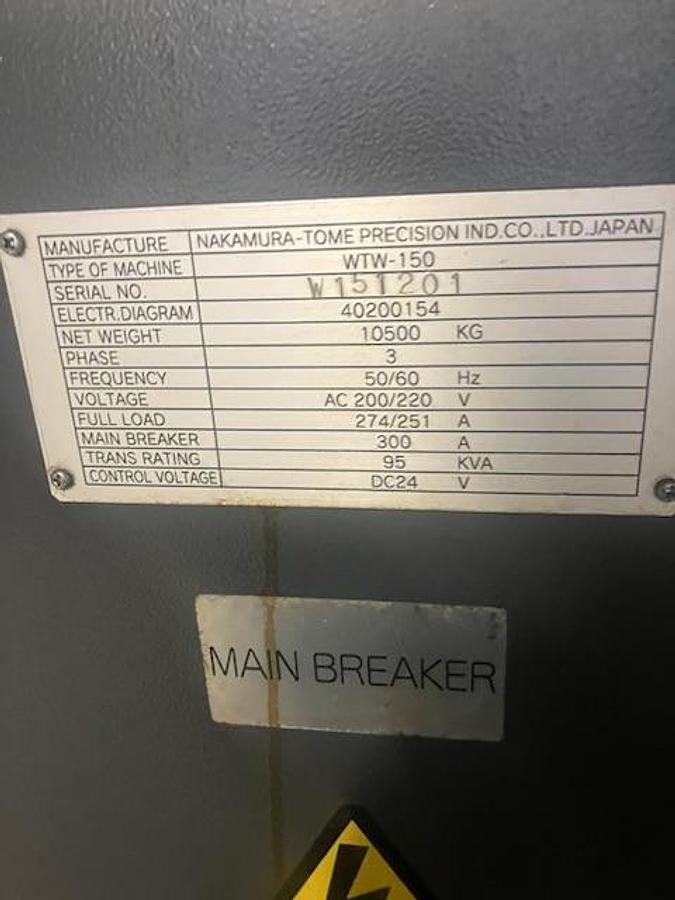

S/N W151201

# Axis   7

Chuck Size          6"

Bar Capacity      2"

Power  15 hp

Max RPM            4,000 RPM

Turning Dia        12"

Machining Length           42"

Dimensions       152" x 92" x 98"

Weight 23,000

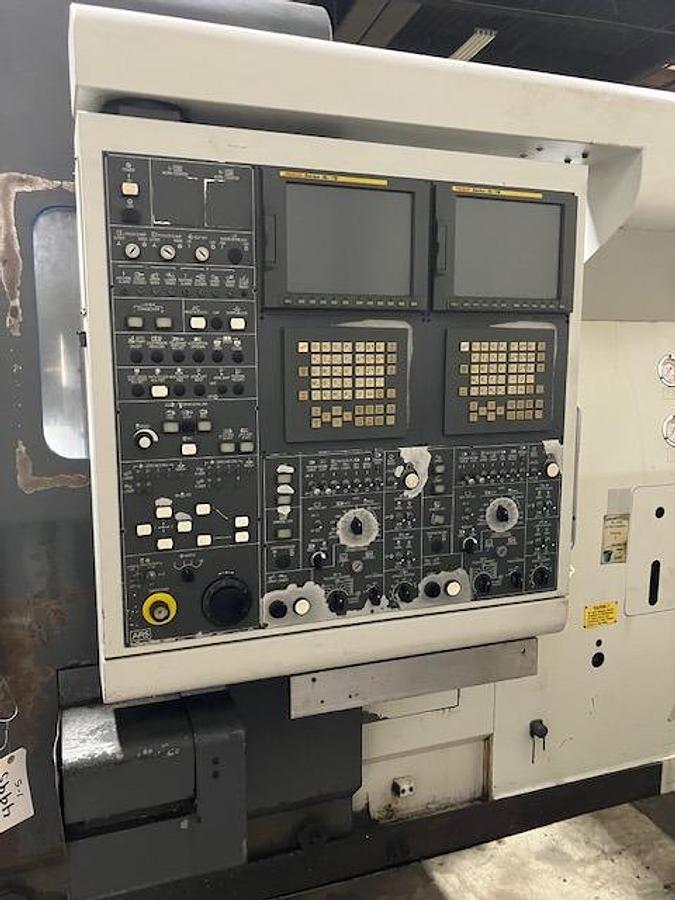

Control CNC (Fanuc 18iTB)

SPEC SHEET

20HP spindle motor L/R, 5000rpm Left Spindle - 5000rpm Right Spindle

2" Bar Capacity (L/R) Spindle

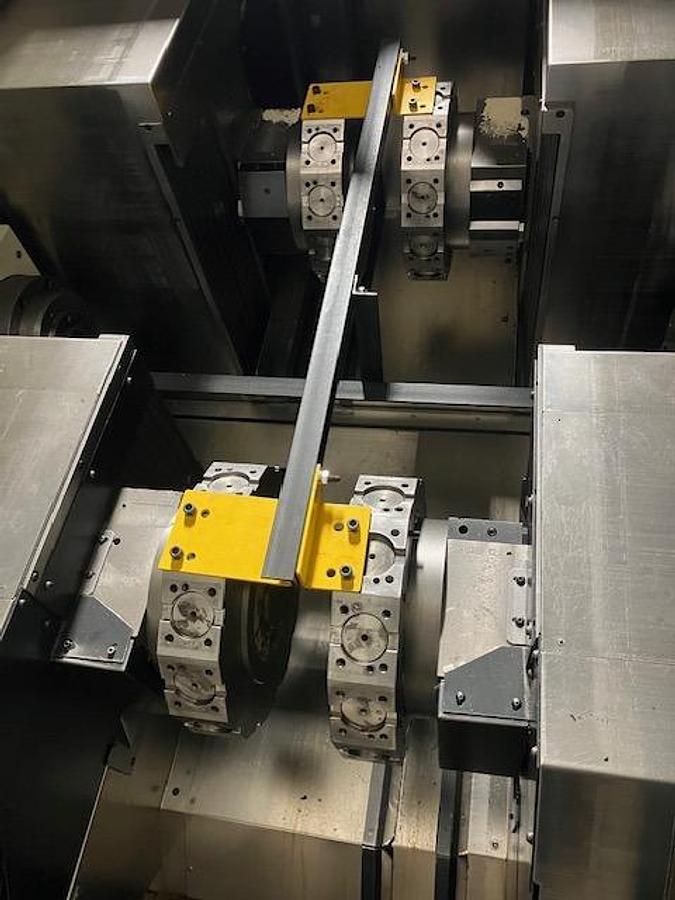

Two Upper 12 Station Bolt-on Turrets/One Lower 12 Station Bolt-on Turret

Full "C" Axis Milling Unit each spindle - Includes:5HP Motor for Milling on

12 Milling Stations (Two Upper and One Lower Turret)

60-6,000 RPM Rotating Tool Speed

Parts Catcher - 2" Dia. X 6" Long Capacity

NOTE: for Catching Parts from Right Spindle

Y-Axis - Only for both Upper Turrets L/R: Y Axis Stroke (30mm) +/- 1.18",

1.34 HP Feed Motor

Spindle Air Blow ( R ) Spindle

Fixed Air Blow L/R

Spindle Speed Override

Polygon Turning, NT Nurse, Rigid Tapping all Standard

Leveling Jig
