2021 Doosan Puma 2600SY II

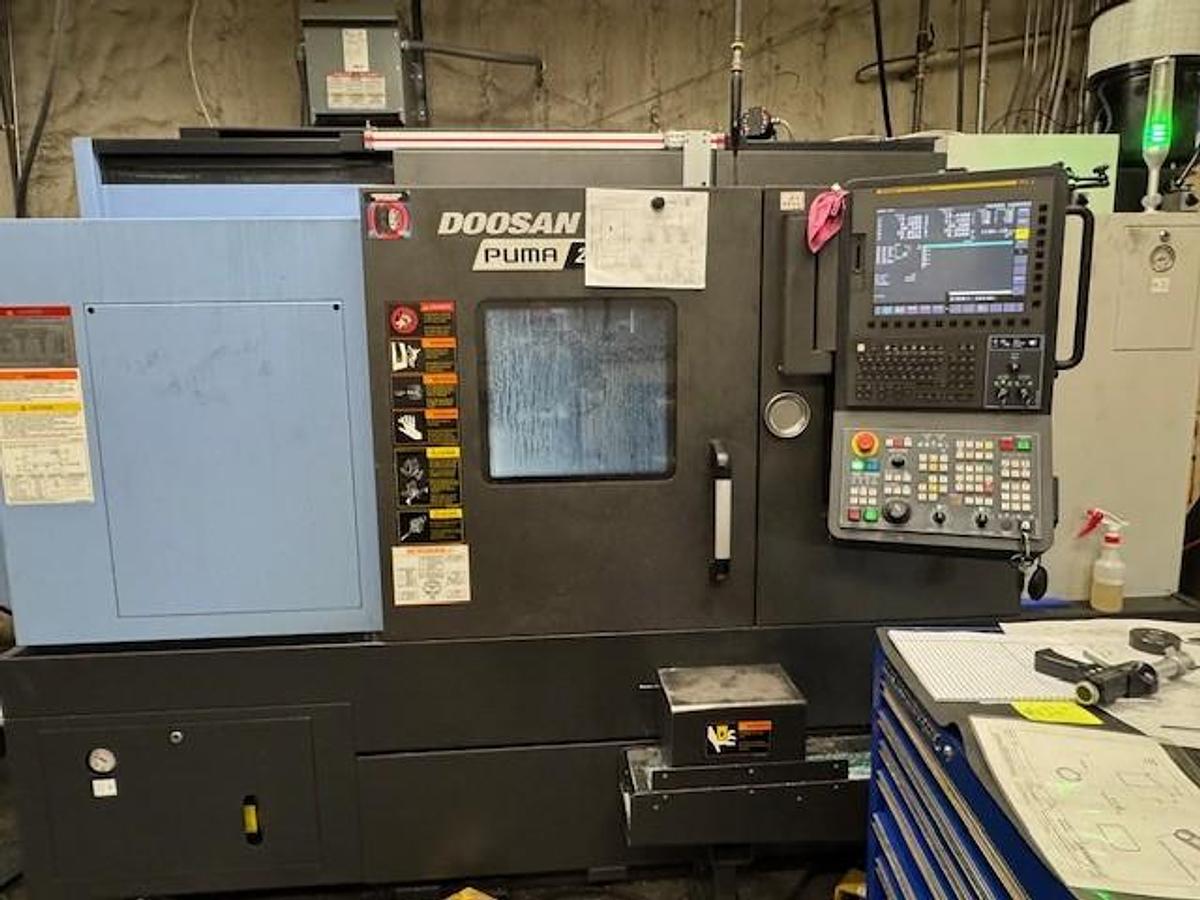

Doosan Puma 2600SY II Turning Center 2021

Model: PUMA 2600SY II

Date Mfg.: 01/2021

Main spindle speed: up to 4,000 rpm

Sub spindle speed: up to 6,000 rpm

Capacity: 14.8" Turning Dia. - 29.9" Turning length, 3.15" Bar capacity

Thru hole: 3.2"

No chuck (has collet setup)

X/Y/Z Travel: 260/±52.5/830mm

Rapid traverse rate 30m/min (XYZ axes)

16 Station turret

Live tooling

Tooling spindle speeds: up to 5,000 rpm

Y-Axis milling

Sub-Spindle motor: 20hp

Main spindle motor: 29.5hp 220v 3ph

Overall Dim.: 142"L x 75"W x 85"H

Est. Wt.: 14,400 lbs.
