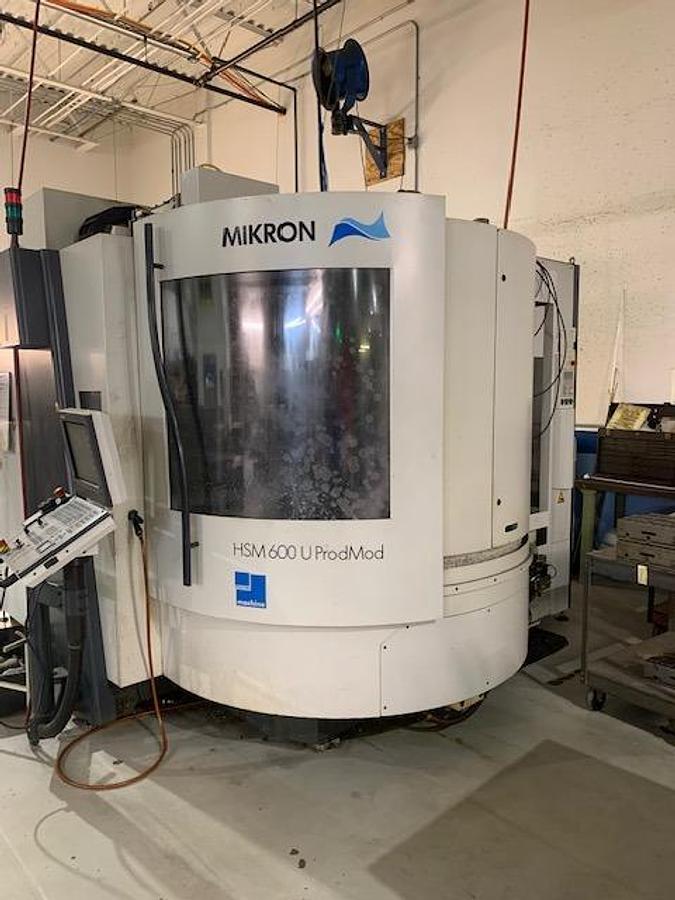

2006 Mikron HSM-600U,

The 2006 Mikron HSM-600U is a used 5-axis CNC vertical machining center designed for precision and reliability. Key features include an X-axis travel of 31.5 inches, Y-axis travel of 23.6 inches, and Z-axis travel of 19.7 inches, powered by a robust 30 hp motor. It operates at a high spindle speed of 36,000 RPM, utilizing an HSK-A63 taper for enhanced performance with a 60-tool automatic tool changer. This machine is equipped with advanced Heidanhain iTNC 530 control for precise machining operations and features a coolant-through spindle system to improve tool life and cutting accuracy. The machine's table dimensions are 140 inches wide and 145 inches long, supporting large workpieces with ease. With a solid build, the Mikron HSM-600U weighs 18,000 pounds and measures 145 inches in length, 95 inches in width, and 111 inches in height, making it a substantial addition to any production floor focused on efficiency and precision.

Mikron #HSM-600U, 5-Axis CNC vertical machining center 2006

SPECIFICATIONS:

X............ 31.5"

Y............ 23.6"

Z............ 19.7"

Power........ 30 hp

RPM.......... 36,000 RPM

# ATC........ 60

Taper........ HSK-A63

Table-W...... 140"

Table-L...... 145"

# Axis....... 3

Dimensions... 145" x 95" x 111"

Weight....... 18,000 pounds

EQUIPPED WITH:

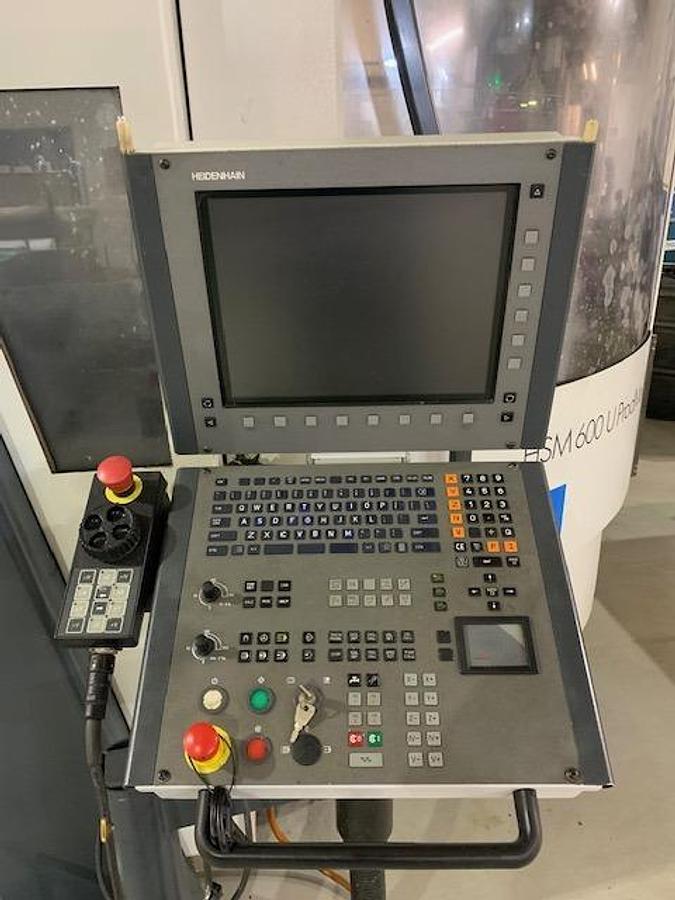

Heidanhain iTNC 530

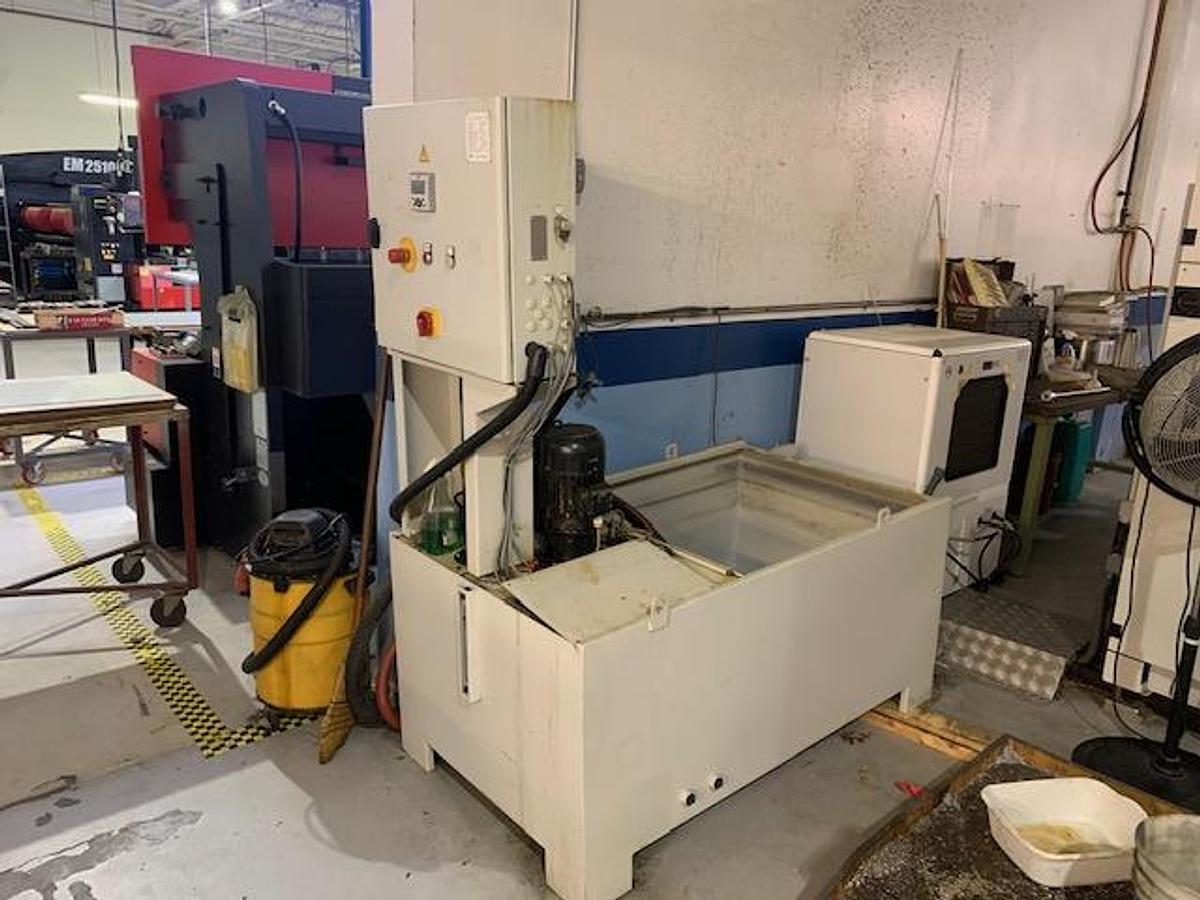

Coolant Thru Spindle
