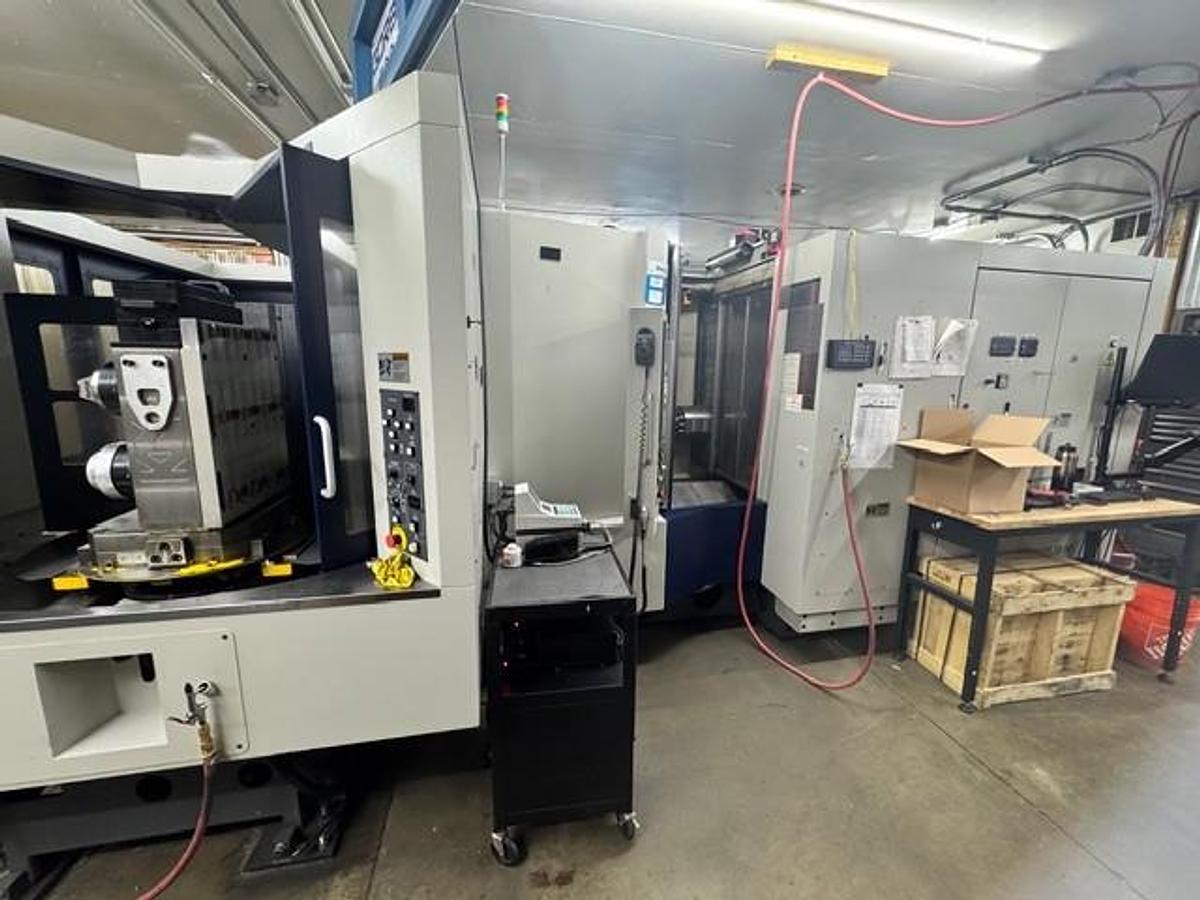

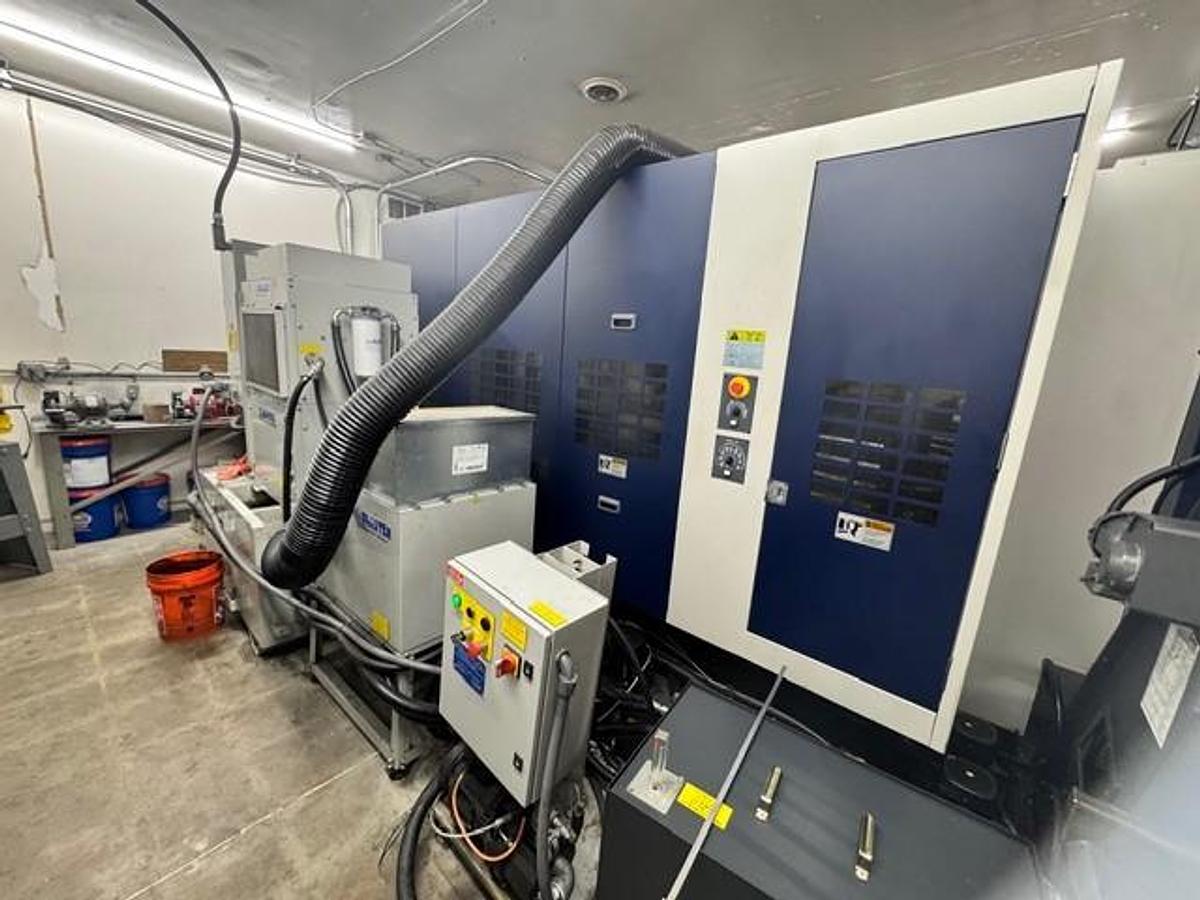

2016 Kiwa KH-45

Kiwa KH-45, 20,000 RPM, PC-2, 120 Tools

CNC Horizontal Machining Center

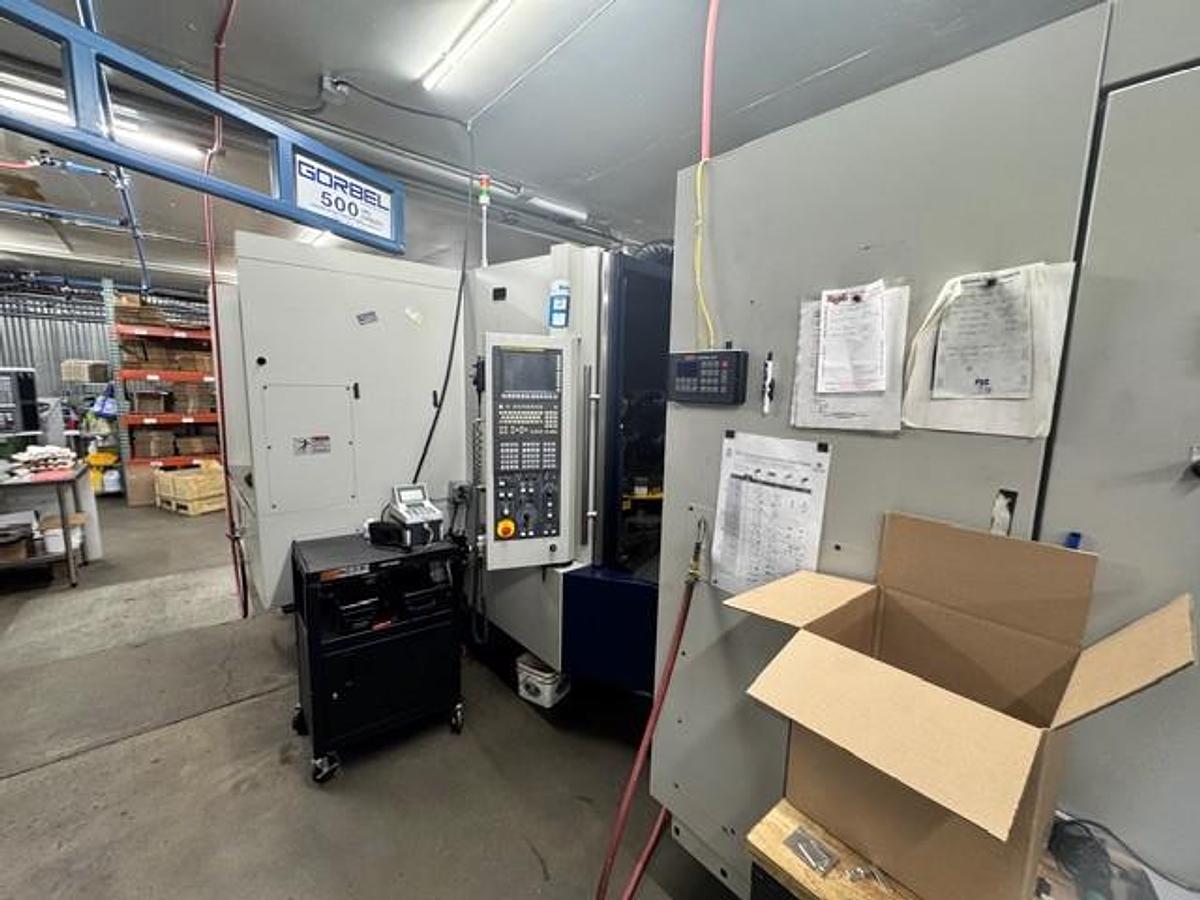

With FANUC 31i-MB Control 2016

One (1) Kiwa KH-45, PC2 CNC Flexible Horizontal Machining Center with FANUC 31i-MB CNC Control, as per specifications attached including:

• 2 Pallet Changer​

• 400MM X 400MM Pallet Work Surface

• 2362.2 IPM Rapid Traverse

• 30 HP Built in Spindle Motor

• 150-20,000 RPM Spindle Speed

• Oil Air Lube

• 120 Tools ATC

• HSK63 Taper

• Load/Unload Station

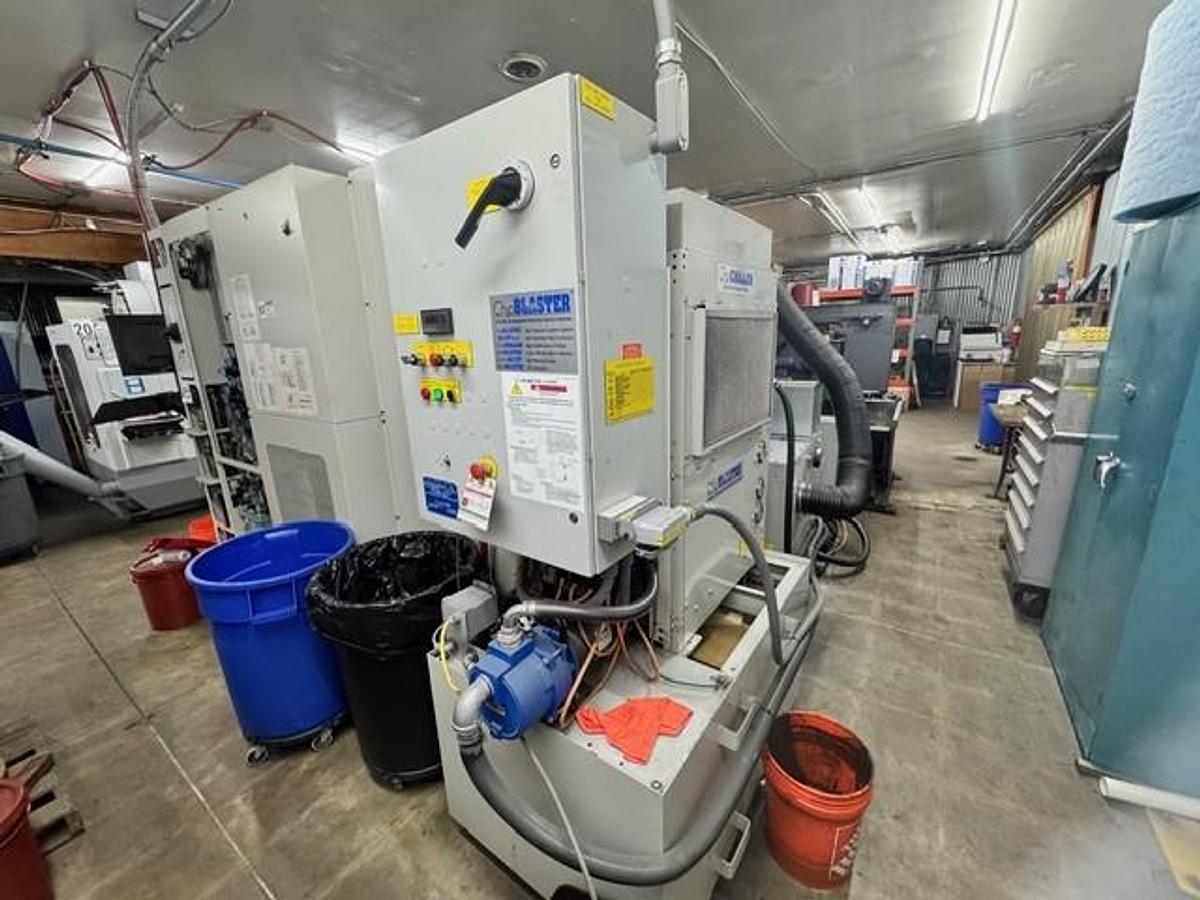

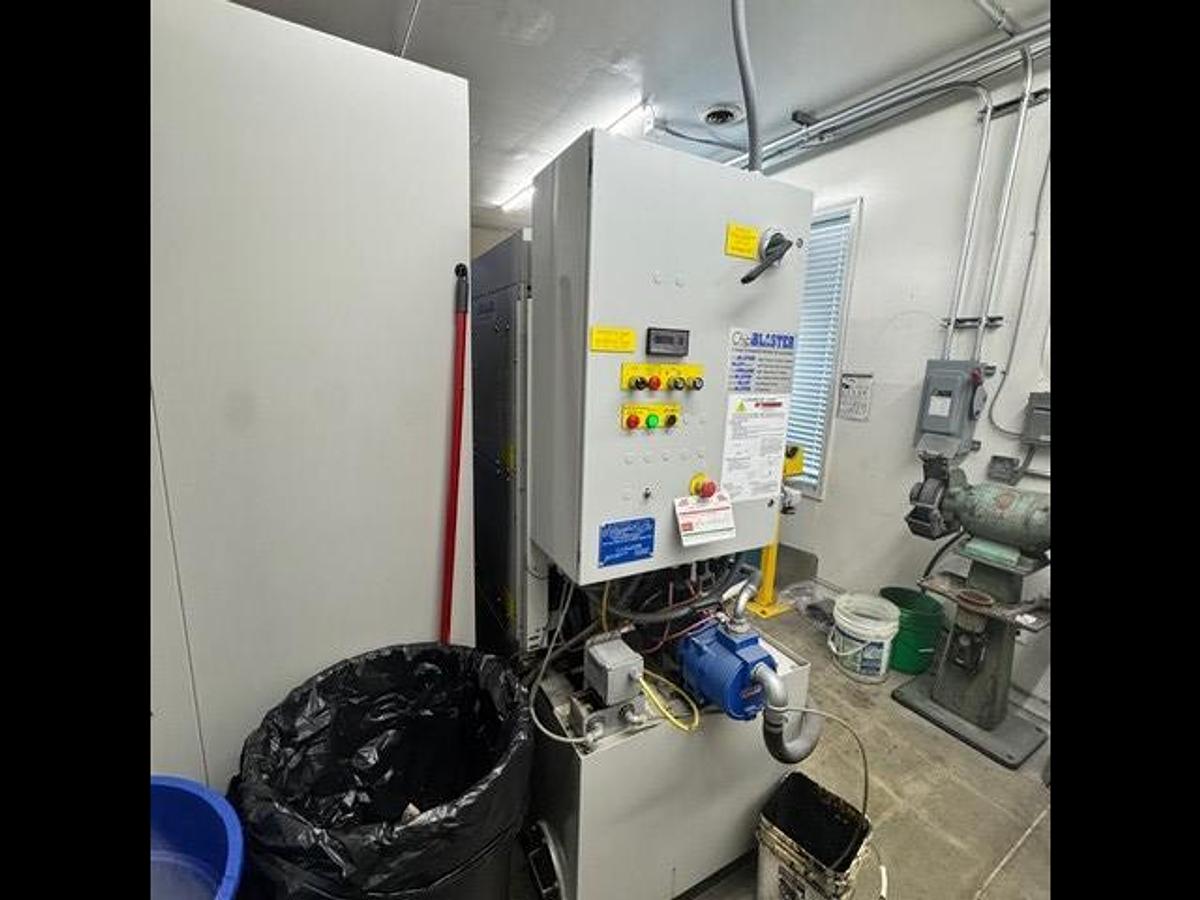

• Provision for Coolant thru the Spindle 70 Bar

• Spindle Oil Cooler

• Full 4th Axis

• Pallet and Chip Wash

• Coolant  Chip Flow System

• Standard Coolant Tank with Pump

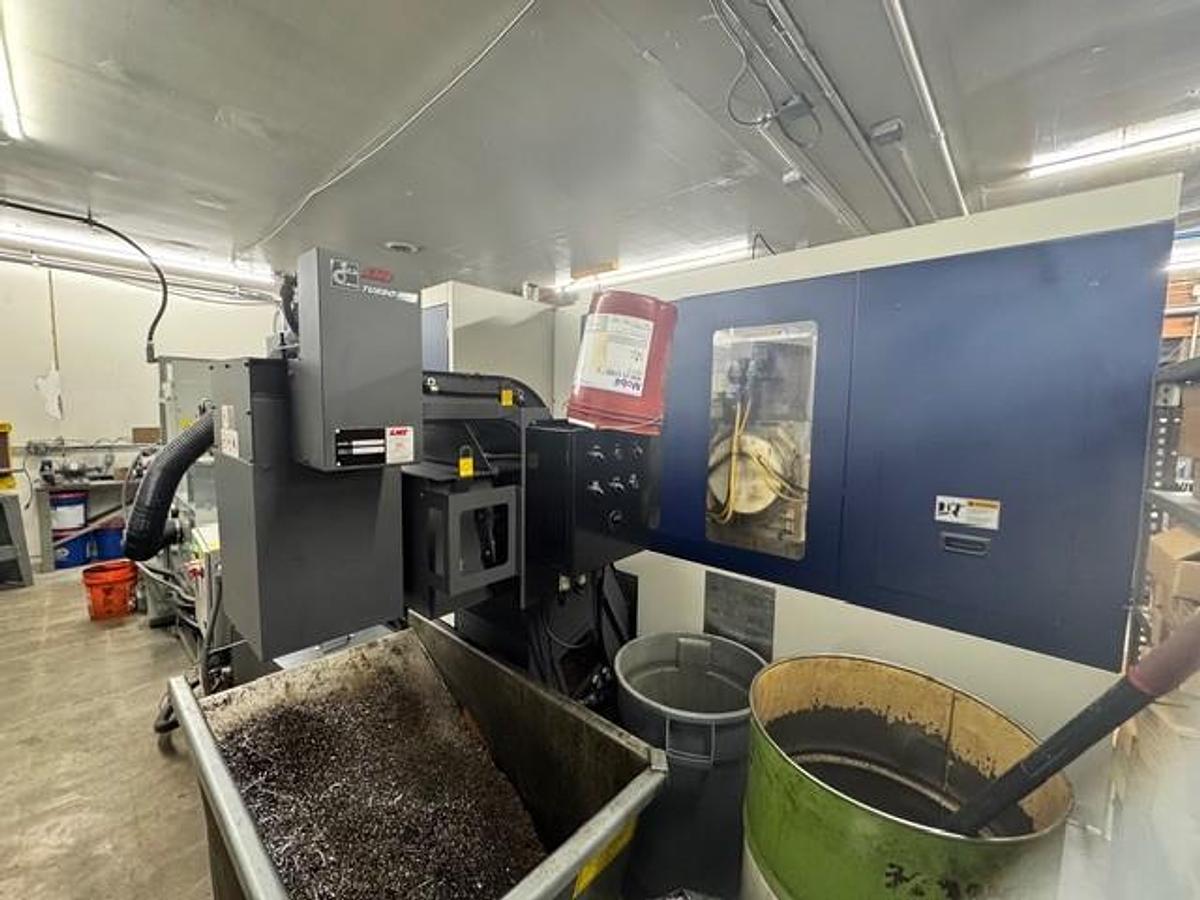

• Chip Conveyor - Hinge Belt

• Standard Control Software Package Including:

− AICCII

− Tool Life Management

− 1280 Meter Memory

− Helical Interpolation

− Tool Offsets 400 pc.

− 200 Block Look Ahead

− Macro Programming

− Registered Program 1000

 Movement And Ranges

• X-Axis Travel​​640 mm  (25.2")

• Y-Axis Travel​​610 mm  (24.0") ​

• Z-Axis Travel​​680 mm  (26.8")​​

• Pallet Surface to Spindle Center​​Min 50mm (2.0”)

​​​​Max 660mm (26.0)

• Pallet Center to Spindle Nose​​Min 100 mm (3.9”)

​​​​Max 780 mm  (30.7”)

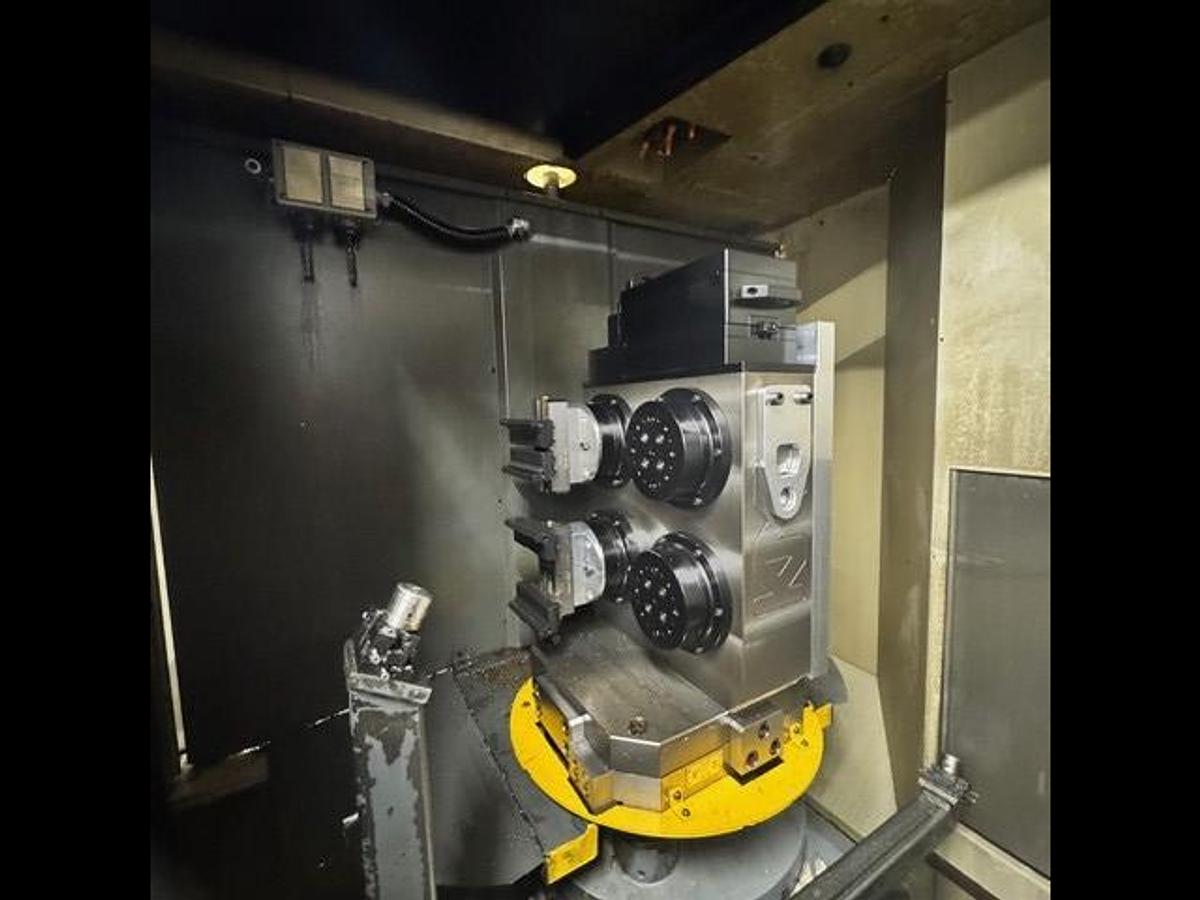

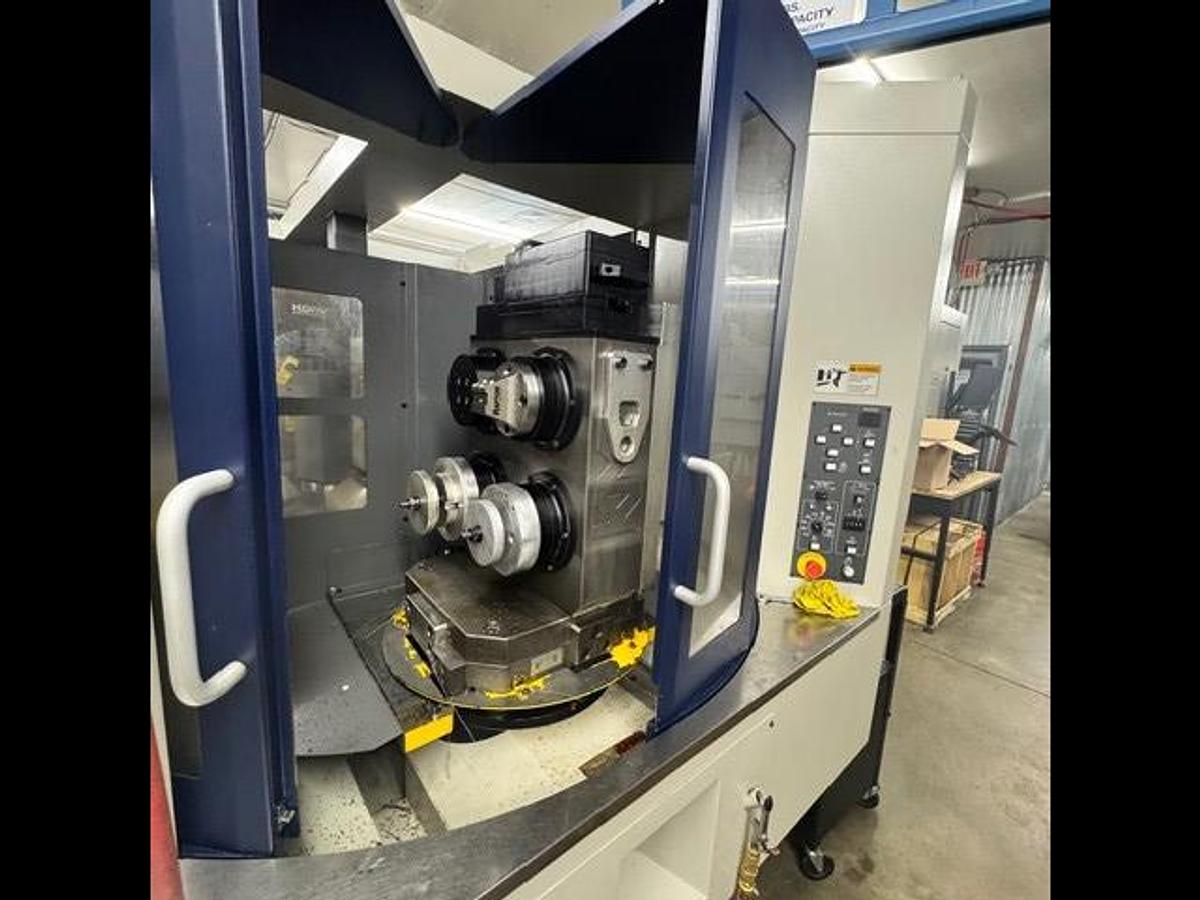

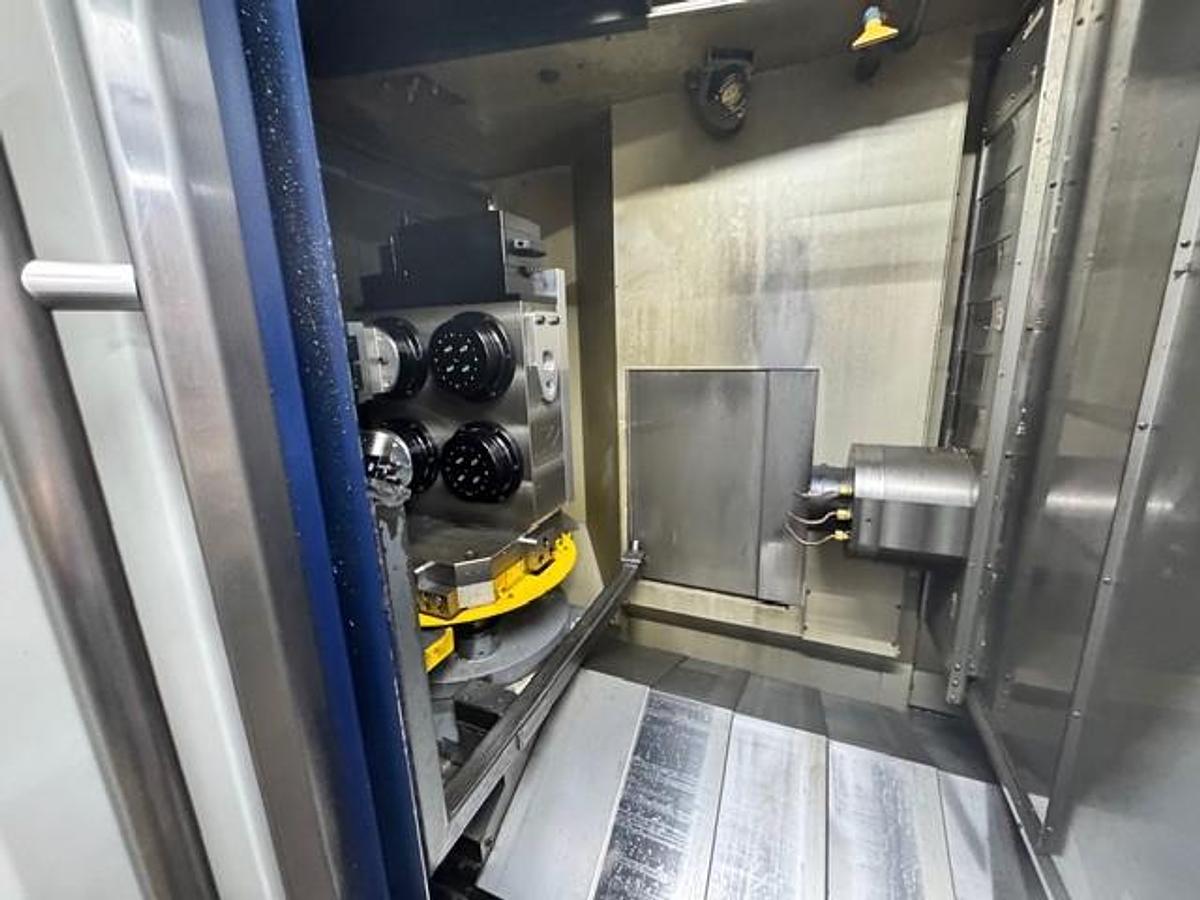

Table (Pallet)

• Pallet Working Surface​​400 x 400 mm  (15.7" x 15.7")

• Maximum Workpiece Size – PC2 (Dia. X H)​​Ø 750 x 1000 mm  (Ø 29.5 x 39.4”)

• Pallet (Table) Loading Capacity​​500 kg (1102lbs.)

• Pallet Surface Configuration Tapped Holes​​25-M16 P=80mm 3.1”

• Min. Table Indexing Angle​​.001 deg.

• Table Indexing Time​​1.1 sec / 90 deg

• Table Indexing Accuracy​​0.001 deg.

• Table Rotating Speed​​33.3 min -1

• Feed Motor: ​​AC 2.7 kw (3.7 HP)

Spindle

• Spindle Motor( Built in type)​​22.0 kW/30 HP

• Spindle Speed Range​​150-20,000 min-1

• Spindle Speed Change Command​​S5 Digits Direct Command

• Type of Spindle Taper Hole​​HSK63

• Max. Spindle Torque​​200 N.m (148.-ft lb) at 1050rpm

• Spindle Air Blow​​Standard

• Spindle Orientation​​Standard (Electrical)

Feedrate

• Rapid Traverse Rate (X/Y/Z)​​60,000 mm/min (2,362.2 ipm)

• Feedrate (X/Y/Z)​​1-30,000 mm/min  (1181 ipm)

• Min. Movement Increment (X/Y/Z)​​0.001 mm  (.00004")

Automatic Tool Changer

• Type of Tool Shank​​HSK63

• Type of Retention Knob​​N/A

• Tool Storage Capacity​​120 Tools & 1 tool in spindle

• Max.Tool Diameter (adjacent pots full)​​Ø 95 mm / 3.7”

• Max.Tool Diameter (adjacent pots empty)​​Ø 185mm / 7.2”

• Max. Tool Length​​400 mm  (15.7")

• Max. Tool Mass​​8 kg (17.6 lbs.)

• Method of Tool Selection​​RandomMemory/Fixed to Pot

• Tool Changing Time: Tool to Tool​​.9 seconds(1.7 sec:heavy Tool)

• Tool Changing Time: Chip to Chip​​2.8seconds(3.6 sec:heavy tool)

Automatic Pallet Changer

• No. of Pallets​​2

• Method of Pallet Change​​Rotation

• Pallet Changing Time​​13 seconds

• Pallet Clamping Force​​5000 lbs

• Pallet Size​​​400 x 400 mm  (15.7" x 15.7")

• Pallet (Table) Loading Capacity​ ​500 kg (1,102lbs.)

Motors

• Feed Motor:

​X Axis​​AC 4.5 kw (6.0 HP)

​Y Axis​​AC 4.5 kw (6.0 HP)

​Z Axis​​AC 4.5 kw (6.0 HP)

​B Axis​​AC 208 kw (2.9 HP)

• Lubrication Pump Motor​​23 W (0.031 hp)

• Hydraulic Pump Motor​​AC 2.2 kw (2.9 HP)

• Coolant Pump Motor​​.37kw (0.5hp) x 1

​​​​600 W (0.8 hp) x 2

Power Supply

• Electrical Power Supply​​50 KVA , 200/230V 3 Phase

​​​​55 KVA for 6-/8-APC Machine

• Compressed Air Supply​​0.5 MPA (71.1 psi)

• Required Air Volume  ​​360 L/min. (95 gal) / min

Tank Capacity

• Hydraulic Oil Tank Capacity​​20 L (5.3 gallons)

• Lubricant Tank Capacity​​1.8 L (.5 gallons)

• Coolant Tank Capacity​​550 L (145.3 gallons)

Machine Size

• Machine Height (PC-2)​​2565 mm (101.0") from floor

• Floor Space (PC-2)​​2541 x 4539 2pc

​​​​100” x 178.7”

• Mass of Machine + NC (PC-2S)​​9500 kg (20,900lbs.)

• Distance from Floor to Table Surface​​1069 mm (42.1")
