2013 MAZAK QTS-250

Mazak Quick Turn Smart QTS-250 CNC Turning Center 2013

All specifications are approximations and are subject to verification.

·         Equipped With:

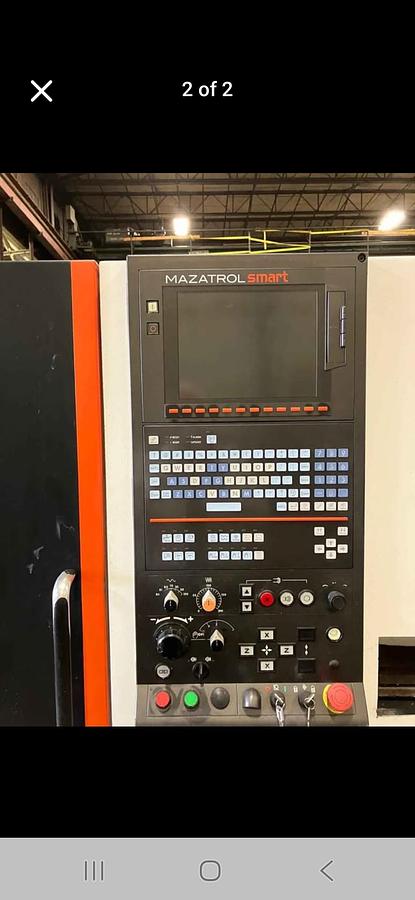

·         Mazatrol Smart CNC Control

·         EIA-ISO Conversational programming

·         10″ Hydraulic Chuck (Capable)

·         A2-8, 4000 RPM Spindle

·         Tool Presetter

·         Hydraulic Tailstock and Quill

·         PCMCIA Card Interface

·         12 Station Automatic Turret

·         Foot Switch

·         High Pressure Coolant System

·         Chip conveyor

·         10GB Hard Disk

·         Specifications:

·         Capacity:

·         Max Turning Diameter: 13.78″

·         Max Turning Length: 18.73″

·         Max Bar Capacity: 3.0″

·         Swing Over Bed: 24.04″

·         Swing Over Carriage: ″

·         Distance Between Centers: 22.08”

·         Travels:

·         X Axis Travel: 8.76″

·         Z Axis Travel: 20.26″

·         Rapid Traverse X Axis: 1181 IPM

·         Rapid Traverse Z Axis: 1181 IPM

·         Spindle:

·         Spindle Nose: A2-8

·         Spindle Bore: 3.2″

·         Spindle Speed: 4000 RPM

·         Spindle Motor: 35 hp

·         Turret:

·         Turret Capacity: 12 Stations

·         Turret Index Time: 0.15 Second

·         Tool Size: 2″

·         Tailstock:

·         Tailstock Taper: MT-4

·         Tailstock Body Travel: 20.65″

·         Tailstock Quill Dia.: 3.7″

·         Tailstock Quill Travel: 3.7″

·         General:

·         Power: 55 kva, 220v / 3-Phase

·         Overall Dimensions: 120″ x 87″ x 90″ High

·         Weight: 11,000 lbs
