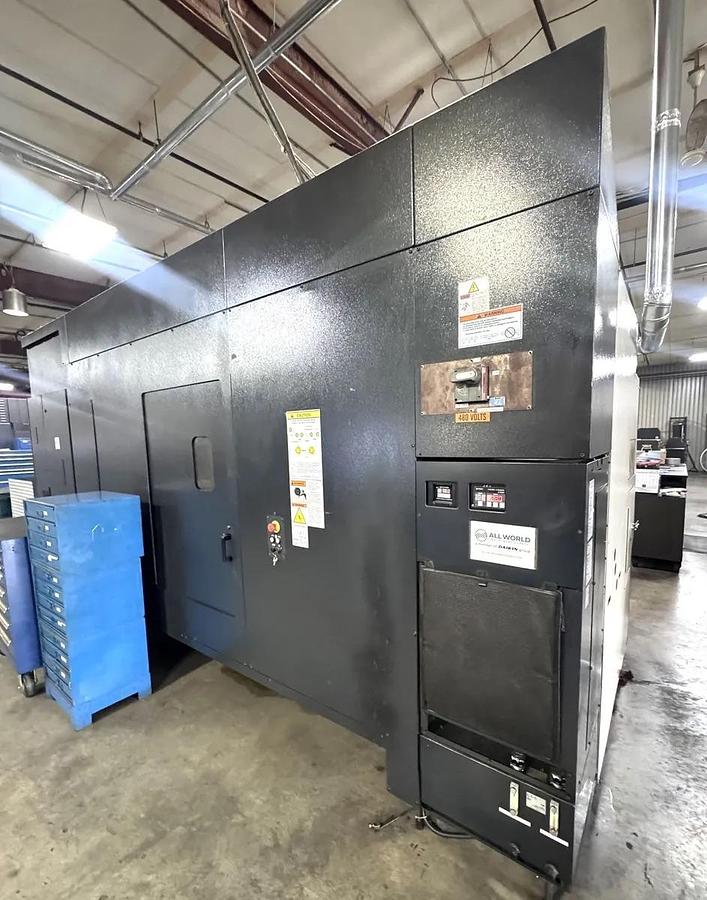

2006 MAZAK INTEGREX 300-IVS

MAZAK INTEGREX 300-IVS 5-AXIS CNC MILL/TURN CENTER

SPECIFICATIONS:

Capacity

Max. Machining Dia. 30.000"

Max. Machining Length 60.000"

Main Spindle

Chuck size 10"

Max.Speed 4,000 RPM

Motor output (30 min. rating0 40 HP

Second Spindle

Max. Speed 4,000 RPM

Motor output (30 min. rating) 35 HP

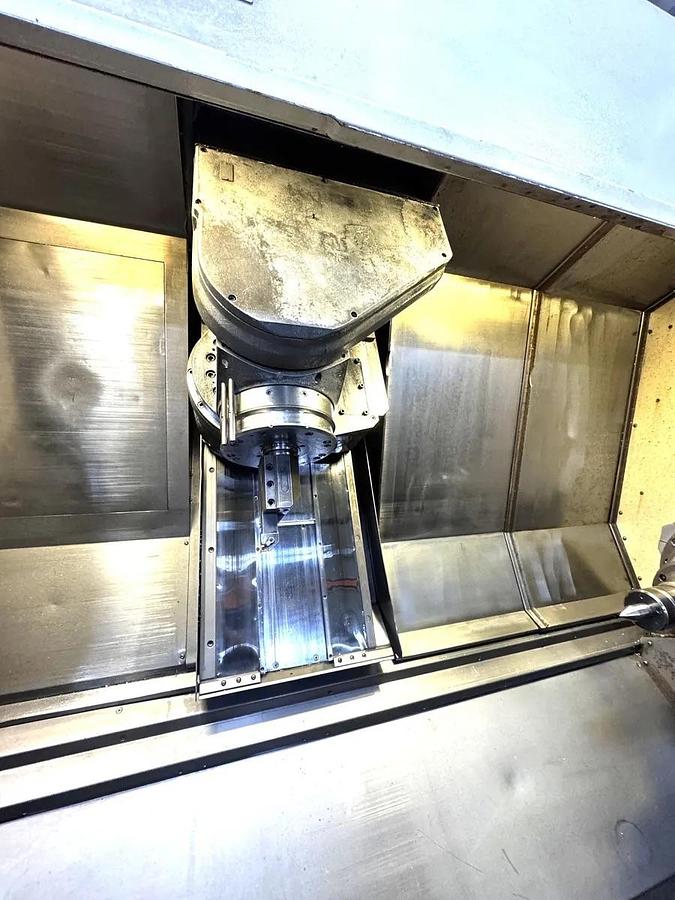

Milling Spindle

B-Axis Travel 225 deg.

Magazine capacity 20

Max. Speed 12,000 RPM

Motor output (20 ED rating) 25 HP

Feed Axes

Travel X-Axis 24.80"

Travel X2 Axis 9.06"

Travel Y-Axis 9.06"

Travel Z-Axis 62.40"

Travel Z2-Axis 60.24"

EQUIPPED WITH:

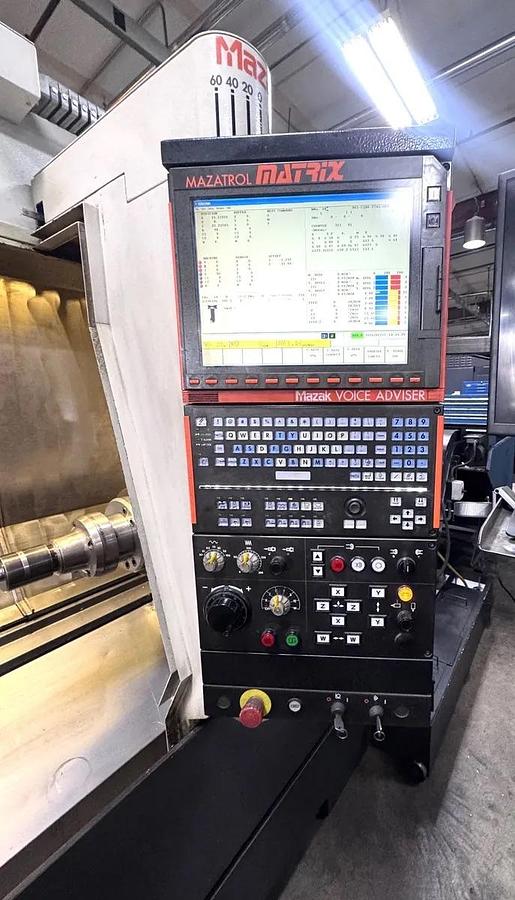

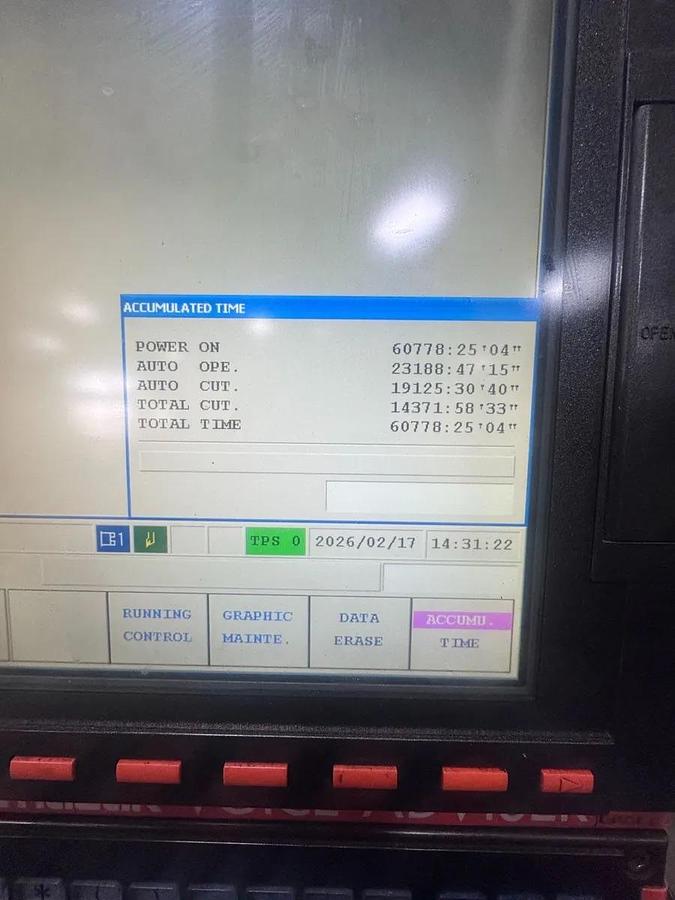

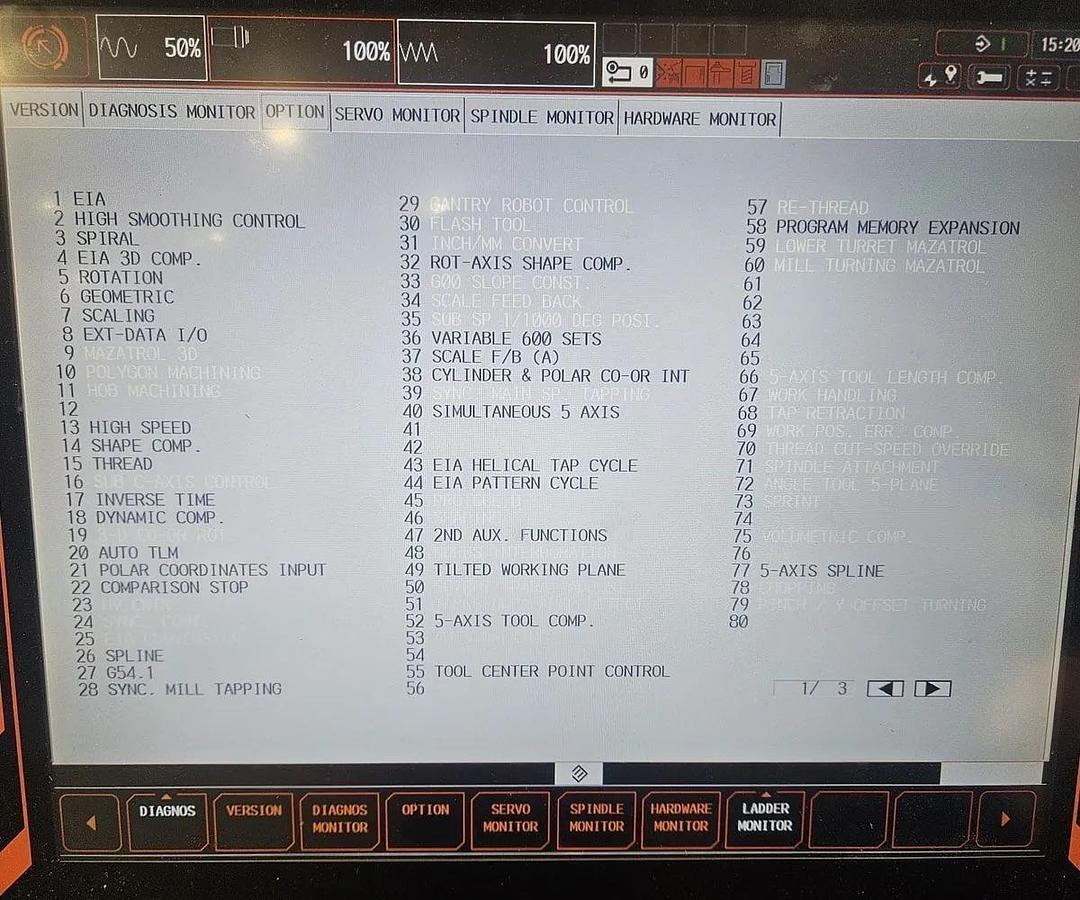

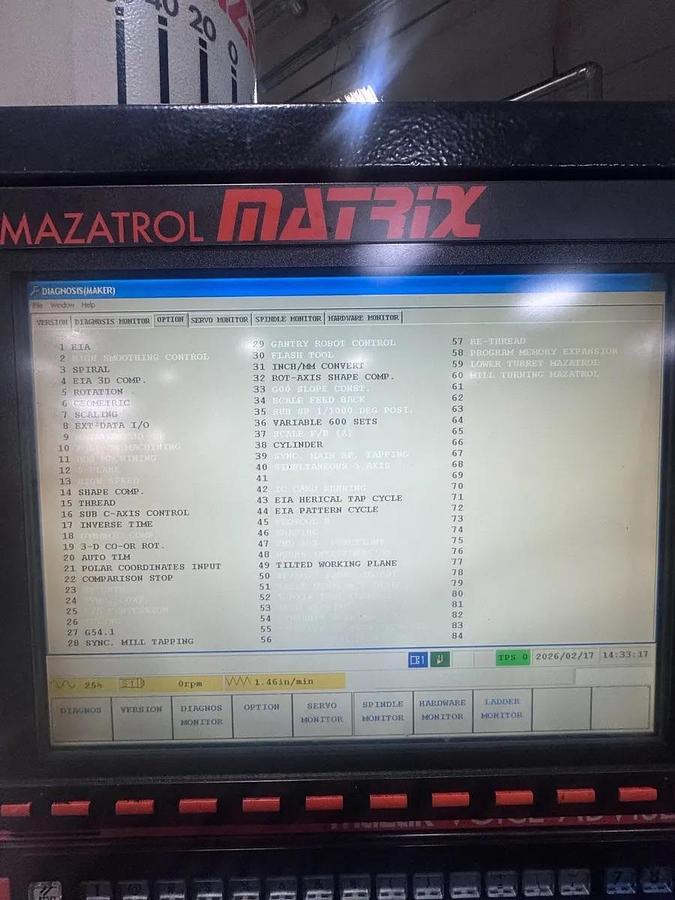

Mazatrol Matrix CNC Control

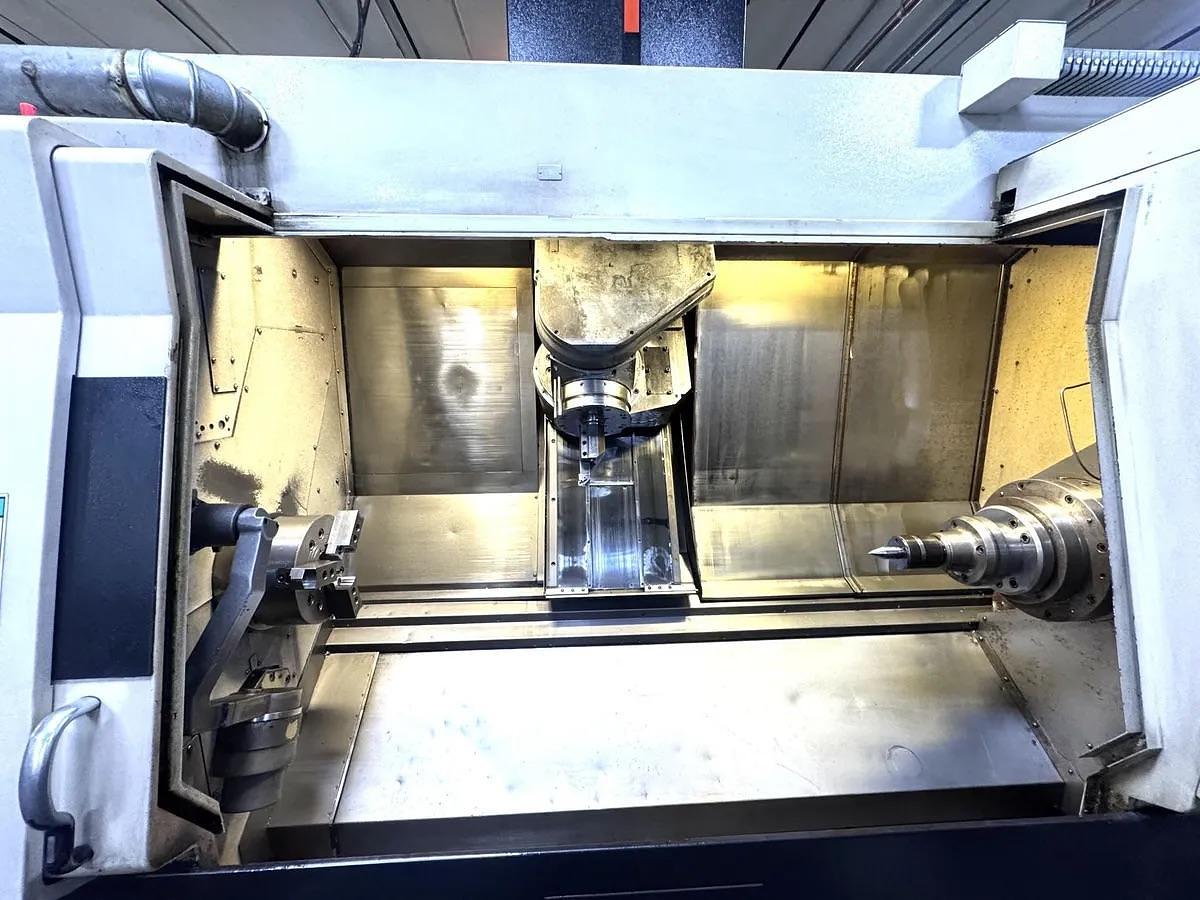

4,000 RPM Main & Sub Spindle & 12,000 RPM Milling Spindle B-Axis

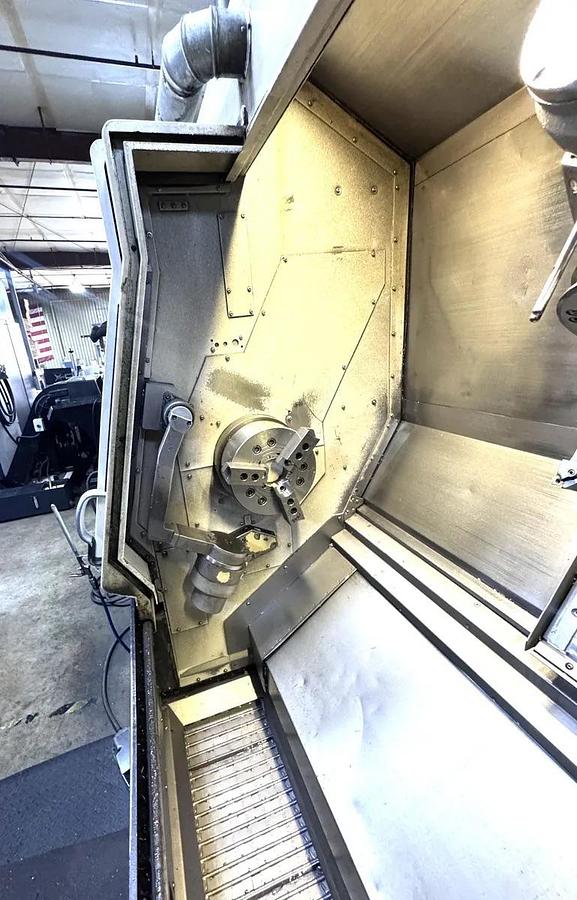

Renishaw Probe & 10" Chuck

Chip Conveyor & Coolant System

Parts Catcher & Tools Measurement
