2013 OKUMA Genos L400

The 2013 OKUMA Genos L400 is a reliable and efficient CNC lathe suitable for various turning operations. It features a robust OSP-P200LA-R control system and is equipped with a 10-inch chuck, providing versatility in handling different workpiece sizes. The lathe's swing is 20.47 inches, with a maximum turning diameter of 15.35 inches and a center distance of 19.68 inches, making it ideal for medium to large workpieces. This used CNC lathe includes a 20 hp main motor, ensuring powerful performance, and operates at a spindle speed of 3,000 rpm. With an X-axis travel of 8.66 inches and Z-axis travel of 20.47 inches, it offers considerable flexibility for complex machining tasks. The rapid traverse rates of 787 ipm on the X-axis and 985 ipm on the Z-axis enhance productivity in operations. Weighing 10,150 pounds, the machine boasts a sturdy build and includes a 12-station turret for efficient tool handling. Additional features like the coolant system and tailstock increase its functionality and capacity for a variety of machining applications. This model is an excellent choice for businesses looking to optimize their turning processes with dependable and high-quality equipment.

2013  OKUMA GENOS L400 CNC 2-AXIS TURNING CENTER LATHE

S/N 0970

SPECIFICATIONS:

OKUMA GENOS L400 CNC 2-AXIS TURNING CENTER LATHE

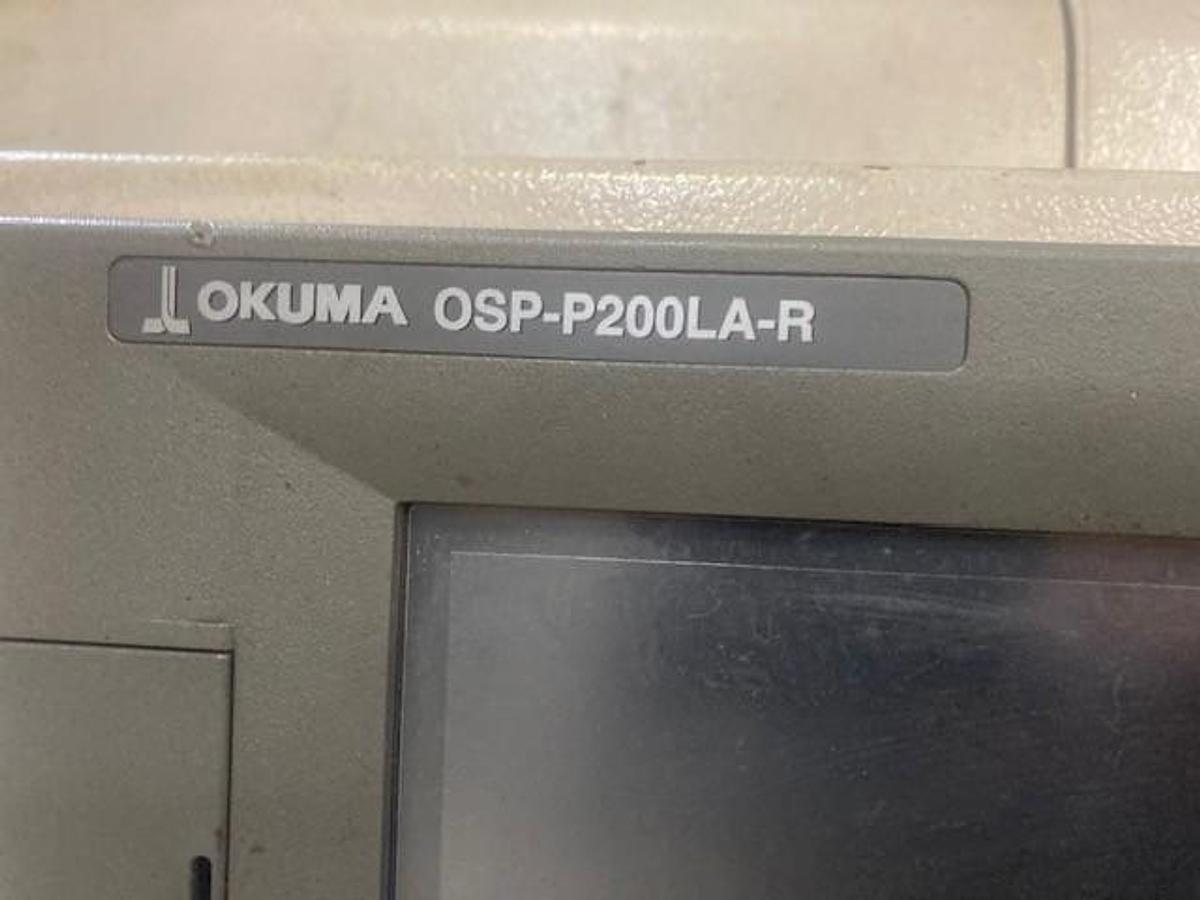

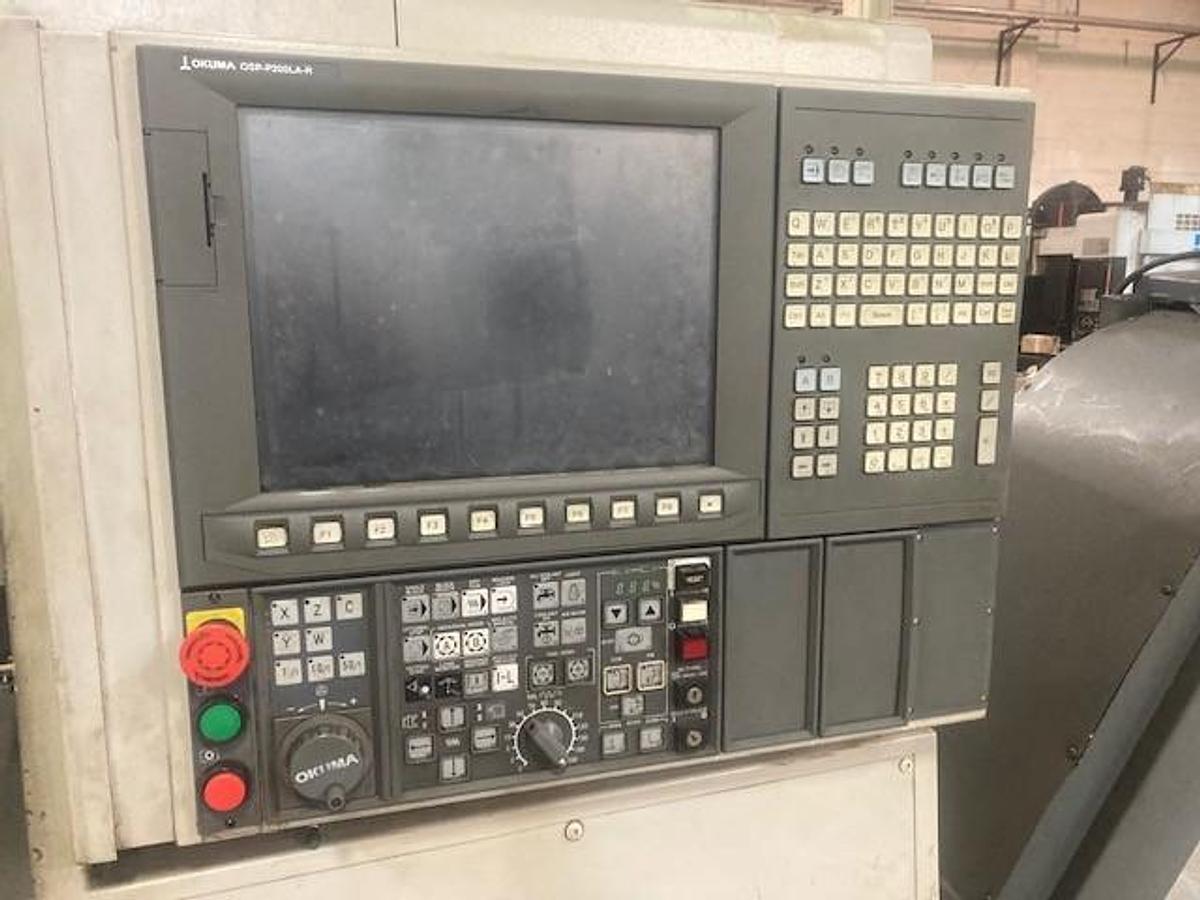

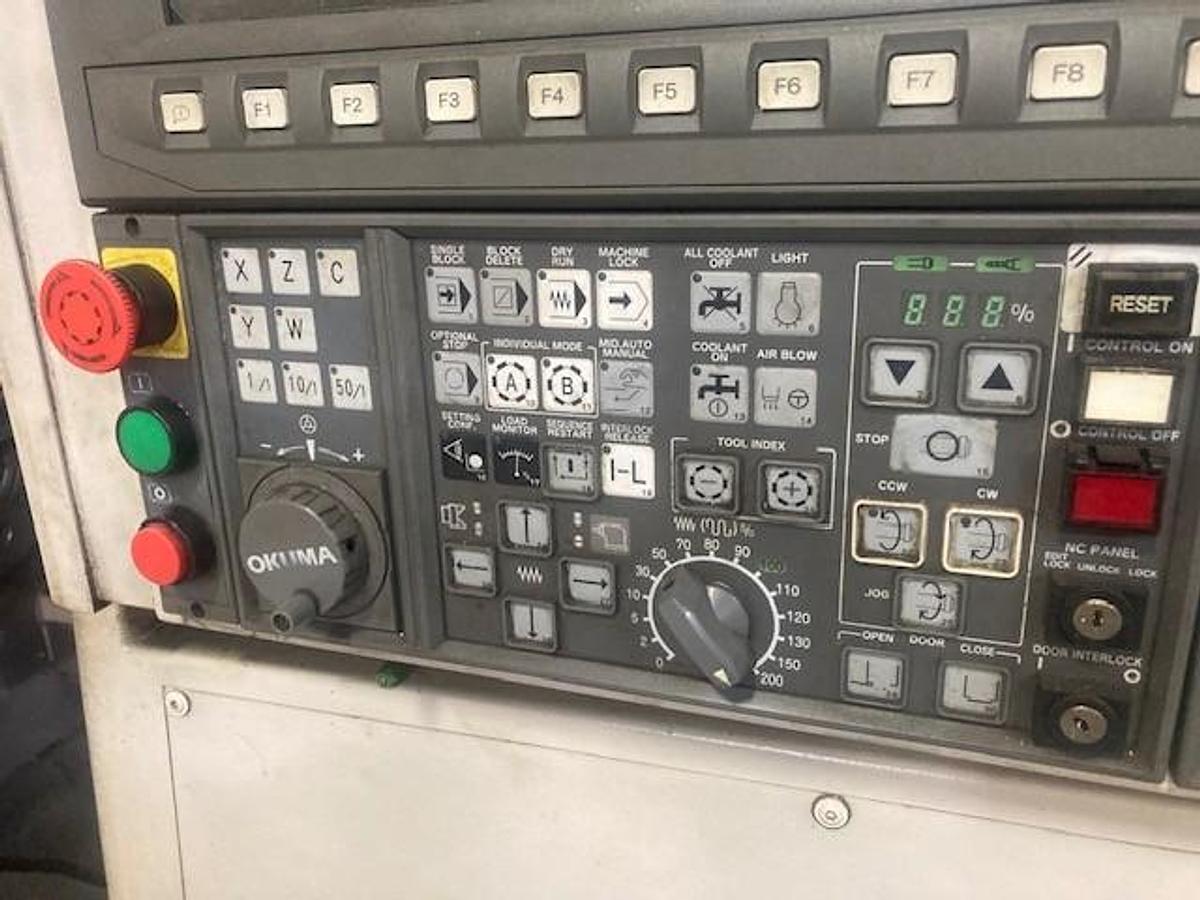

OSP-P200LA-R Control

Swing: 20.47"

Turning diameter: 15.35"

Center distance: 19.68"

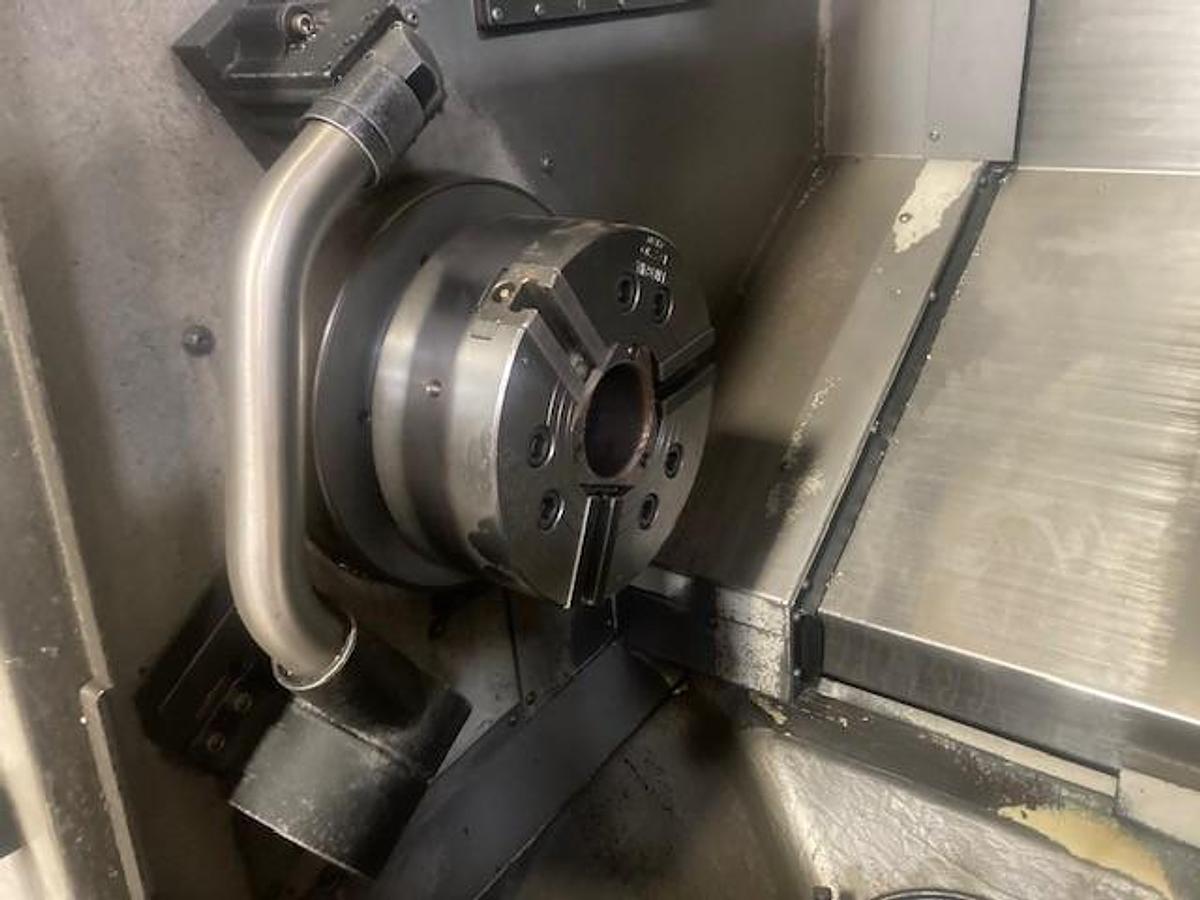

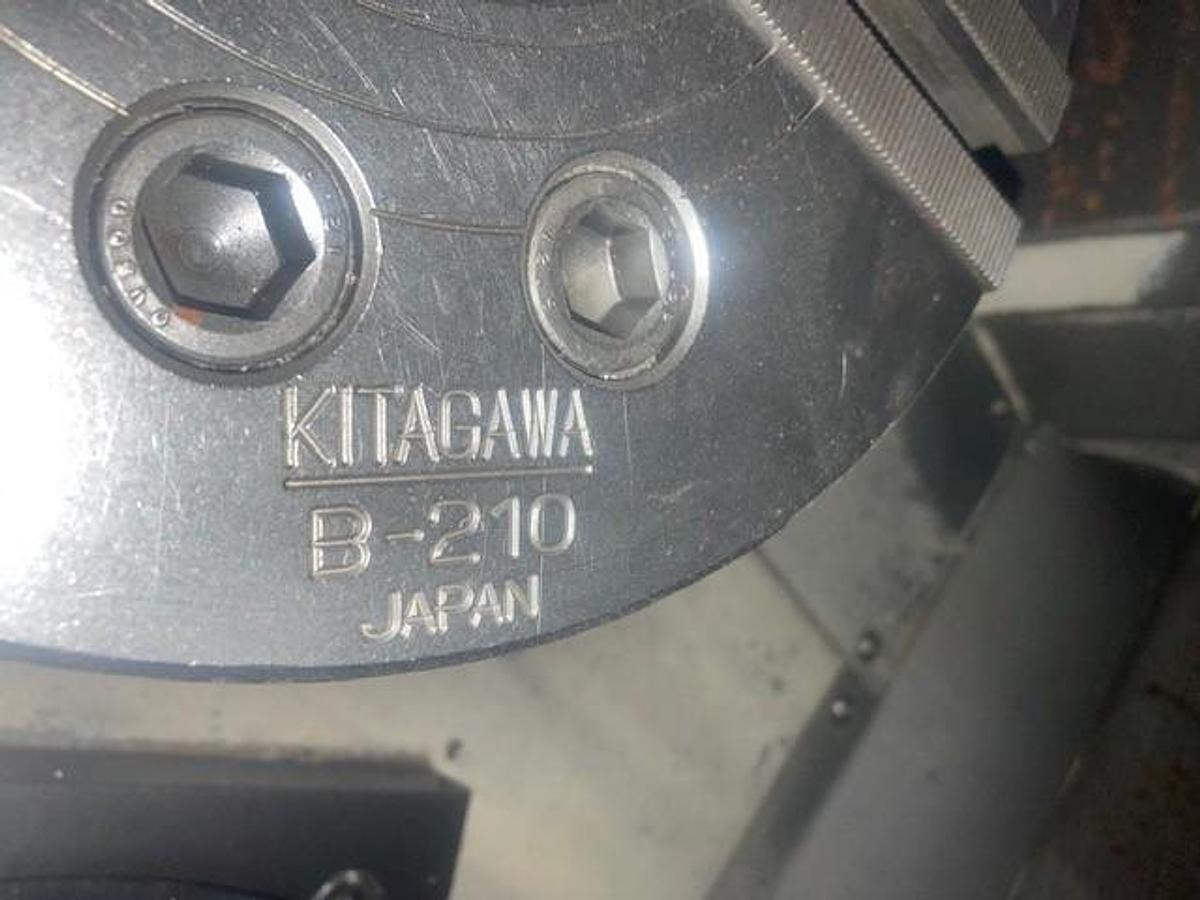

Chuck size: 10"

Bar capacity: 3.14"

X axis travel: 8.66"

Z axis travel: 20.47"

Rapid traverse (x/z): 787/985 ipm

Spindle nose: A2-8

Spindle speed: 3,000 rpm

Main motor: 20 hp

Turret capacity: 12

Machine weight: 10,150 pounds

Coolant System

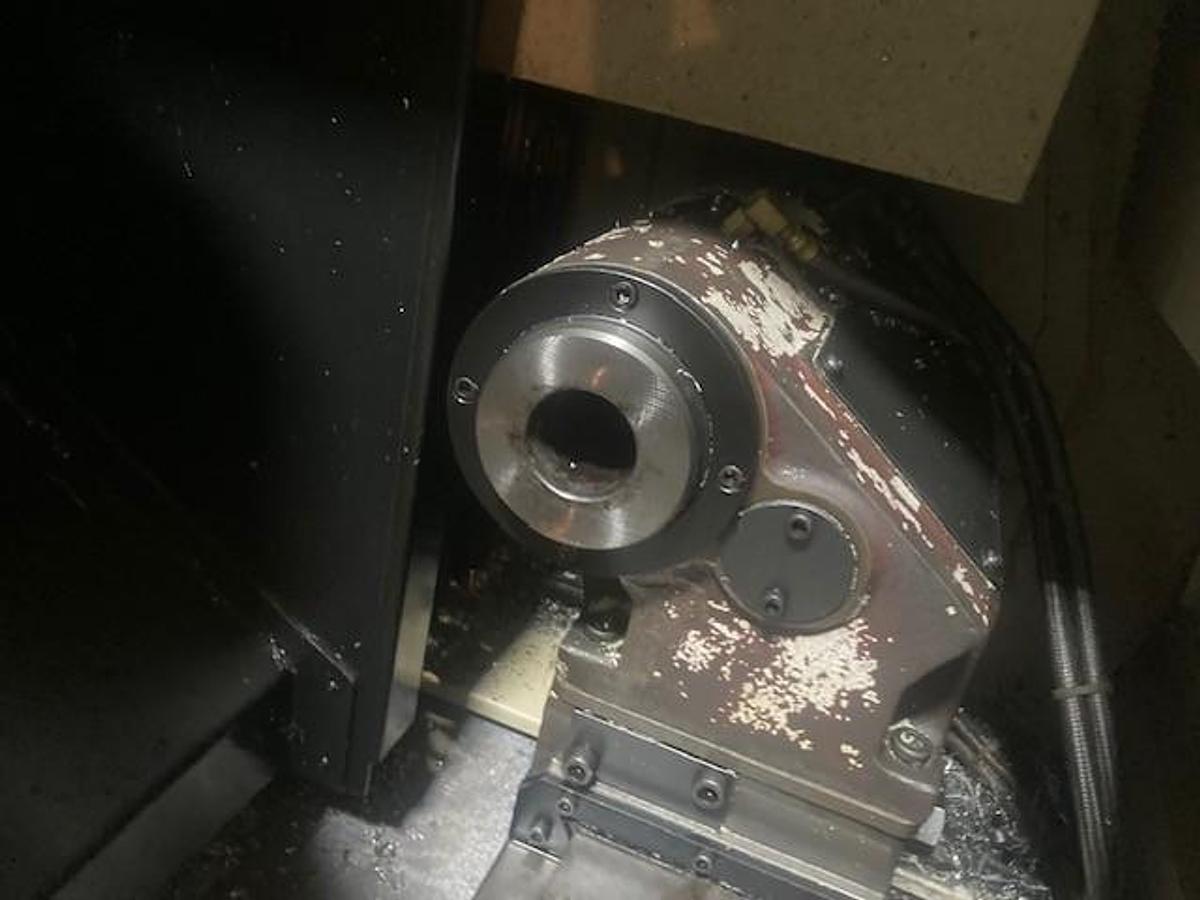

Tailstock
