1998 Makino A77

No longer available

1998 Makino A77

Pennsylvania

Description

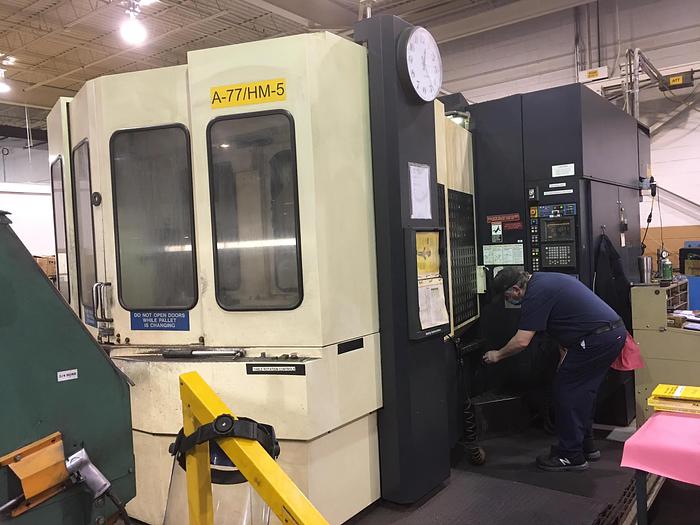

Makino A77 - Horizontal Machining Center

Model: A77 (24.9 x 2 Pallets)

Year: 1998

Machine Type: Used HMC

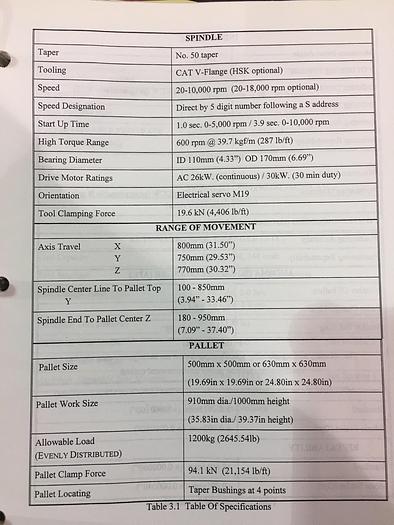

General Specification

Axis Travel X, Programmable     800 mm    (31.5")

Axis Travel Y, Programmable     750 mm    (29.5")

Axis Travel Z, Programmable     770 mm    (30.3")



Spindle Center to Top of Pallet    100-850 mm    (3.9" - 33.5")

Spindle Nose to Center of Pallet   180-950 mm     (7.1" - 37.4")

Spindle Drive Motor (Duty Rated)    30 kW AC    (40 HP AC)

Spindle Drive Motor (Continous)     26 kW AC    (35 HP AC)

Spindle speed     20 - 10,000 rpm

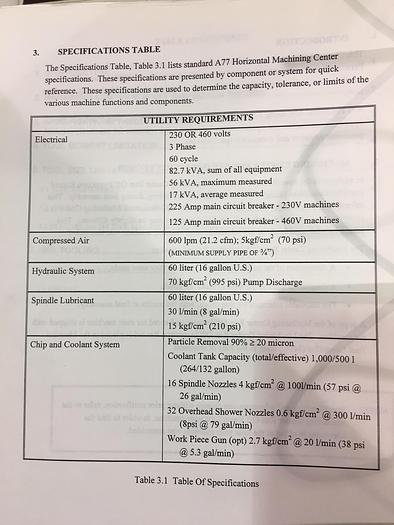

Utility Requirement

Electrical     74 KVA  (AC200/220V, 50/60 Hz)

Compressed Air     600 Ipm (21.2 cfm) 0.5- 0.8 Mpa, Minimum supply pipe of 3/4"

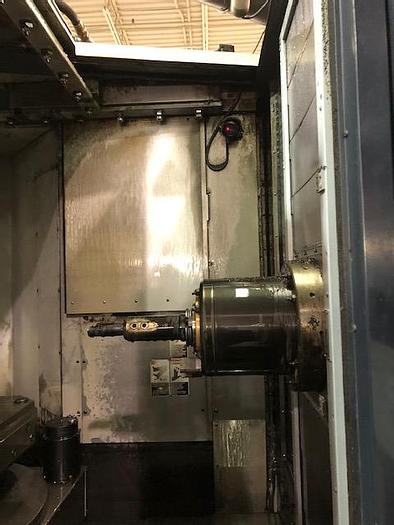

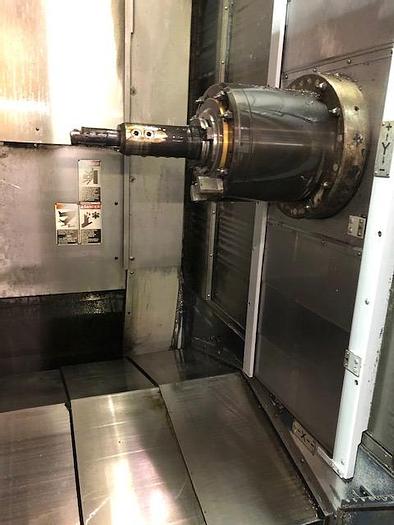

Spindle

Taper     7/24 No 50

Speed    20-10,000 rpm



Pallet

Number of Pallets    2

Pallet Size ( Metric Type)     630 mm x 630 mm     (24.9" x 24.9”)

Pallet Worksize     910 mm (Dia) x 1000 mm (H)

Allowable Load    1200 kg



Machine

Height     2920 mm (115")

Weight    15,000 kg

Required Floor Space     5680 mm x 2890 mm (223.6" x 113.8")



Features

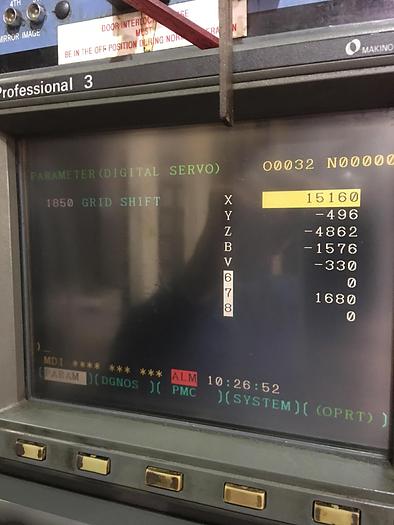

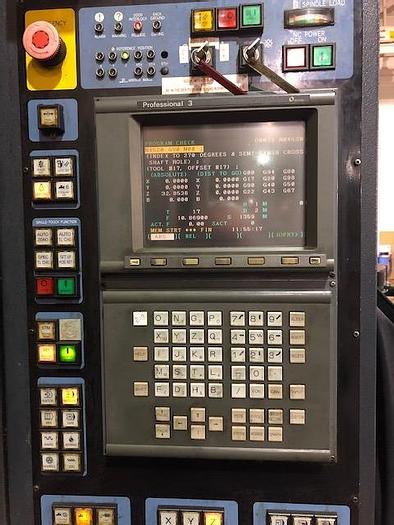

Makino Pro 3 CNC Control (Fanuc)

Coolant Through Spindle

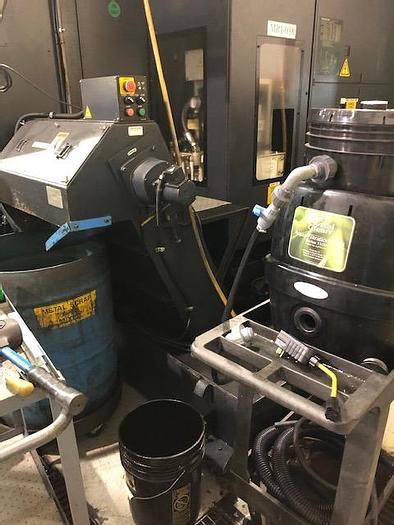

Chip Conveyor

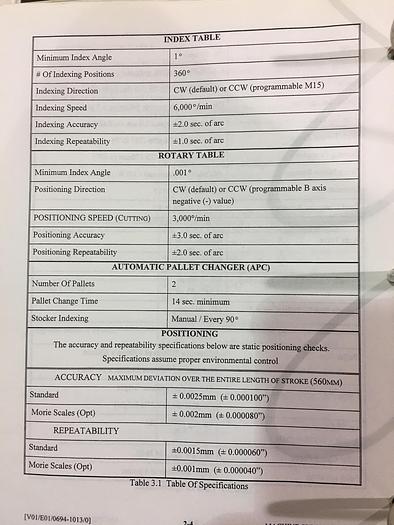

Rotary 1 degrees

Auto Pallet Changer- 2x Pallets

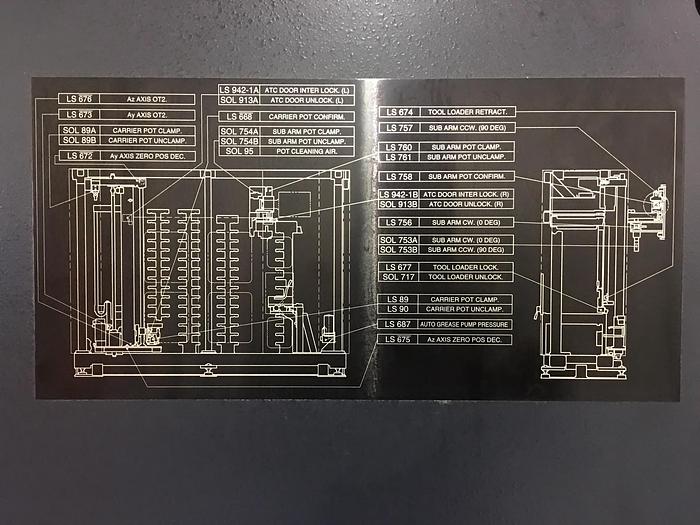

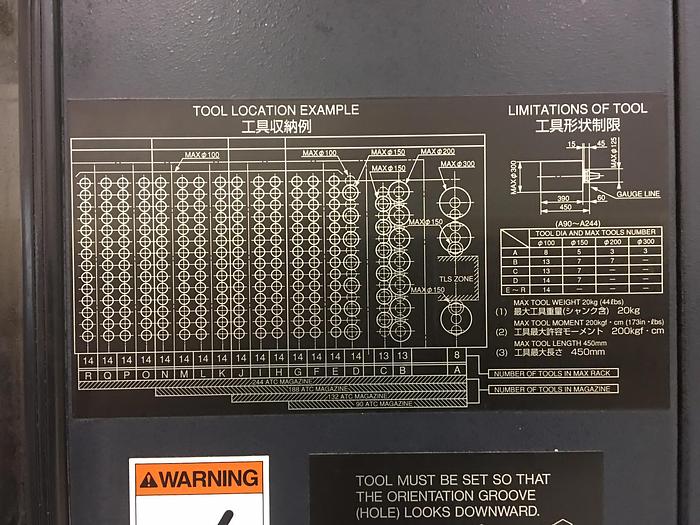

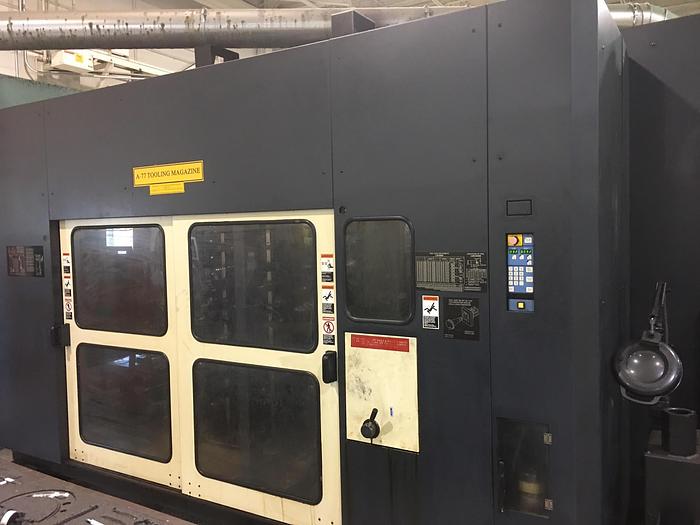

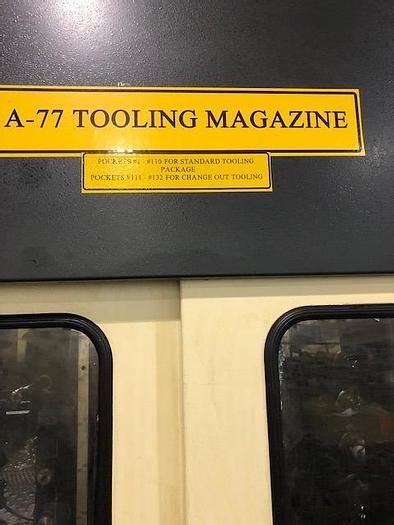

Auto Tool Changer- 132 Positions




Good, working condition; As-is. Under power & available for inspection.


Specifications

ManufacturerMakino
ModelA77
Year1998
ConditionUsed
