2018 Omax MAXIEM 1530

5' X 10' USED YEAR 2018 MAXIEM (BY OMAX) 1530 WATERJET CUTTING MACHINE

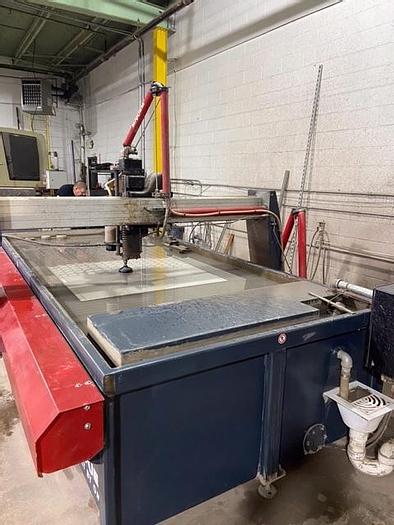

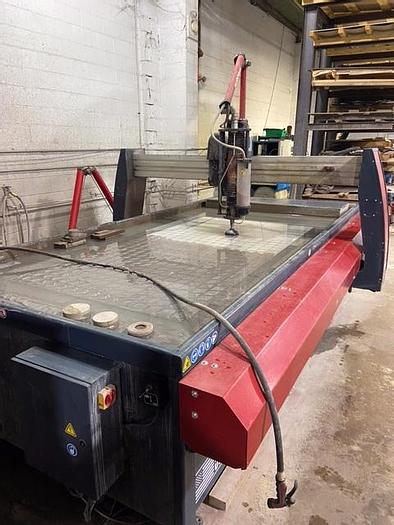

Used QMAX MAXIEM 1530 Water Jet Cutting machine

Work Envelope

X-Y Cutting Envelope ***3,048 mm x 1,575 mm

Z-Axis Travel ***305 mm

Table Size – (L x W)3,708 mm x 1,727 mm

Standard Model Specifications

Speed12,700 mm/min

Linear Positional Accuracy±0.0762 mm

Repeatability±0.0254 mm

Ballbar Circularity±0.1270 mm

Footprint – (L x W)4,293 mm x 3,302 mm Height **3,200 mm

Weight (tank empty)1,814 kg

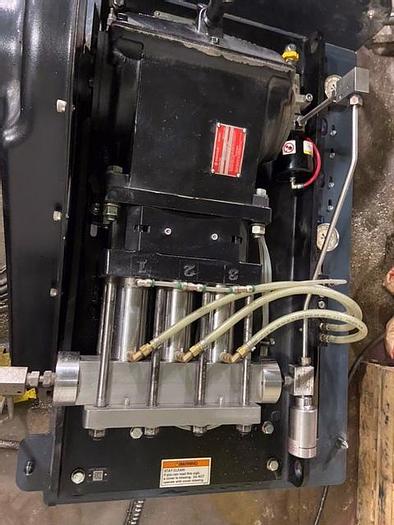

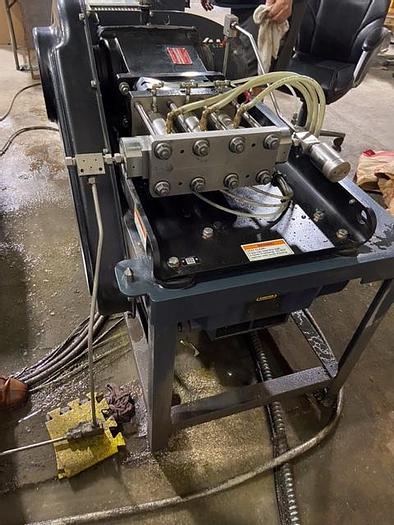

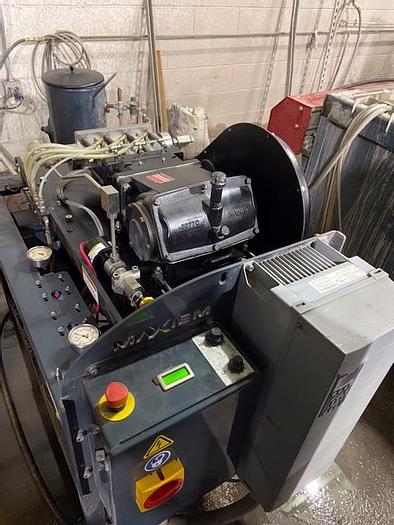

Pump Output 50,000 PSI

X-Axis Travel 3,061 mm

Y-Axis Travel 1,575 mm

Z-Axis Travel 305 mm

Table Size-W 1,740 mm

Table Size-L 3,708 mm

Power 29.8 kW

Weight 4,000

FEATURES:

Fast cutting speeds and high precision that is backed by our exclusive Intelli-MAX® Software with real world cutting data

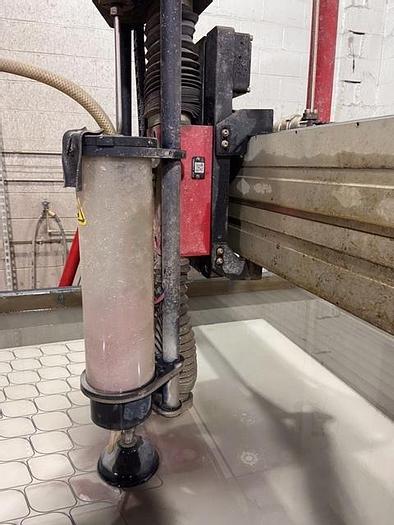

Programmable Motorized Z-Axis with a precision OMAX MAXJET®5i Nozzle boosts productivity and process efficiency

Drive system protected against water, dirt, and grit

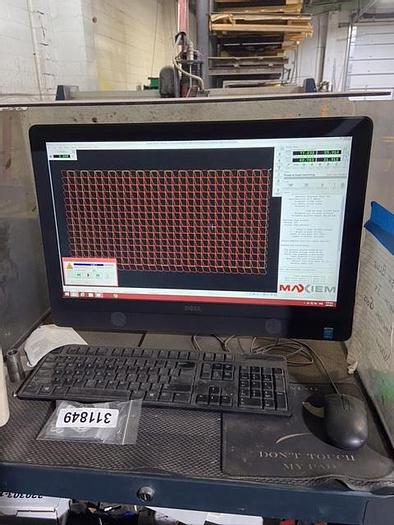

Powerful all-in-one controller computer with large 23” screen
