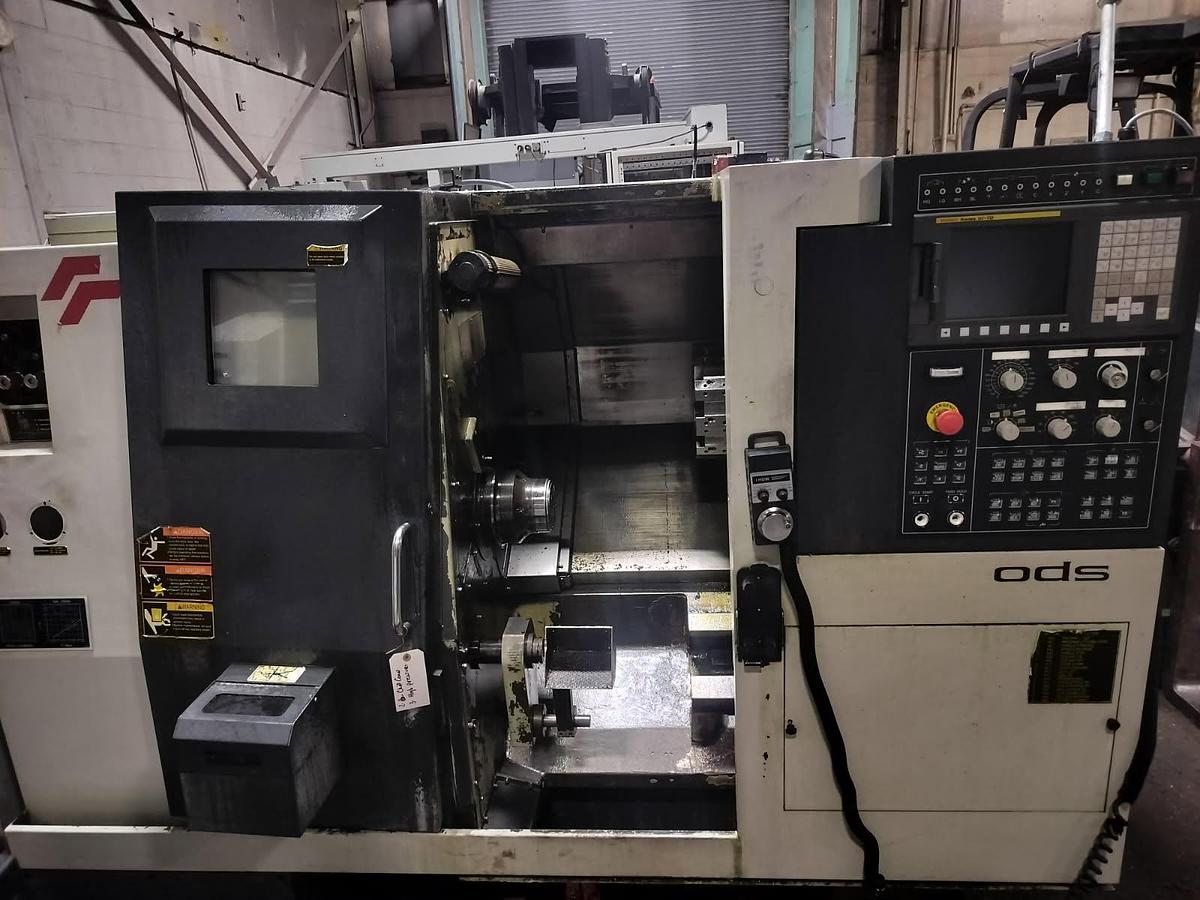

2014 Feeler FTC-150

2014 Feeler FTC-150 is a compact, high-precision CNC turning center, equipped with a Fanuc 0i-TD controller, a 6-inch chuck, and a 15 HP spindle motor capable of 6000 RPM.

Only 10 Hours.

It features a maximum turning diameter of 11.8 inches (300 mm), a turning length of 12.2 inches (350 mm), a 2-inch bar capacity, and a 10-tool turret.

Key Technical Specifications (Approximate):

Maximum Swing: 21.7 inches (550 mm)

Maximum Turning Diameter: 11.8 inches (299.7 mm)

Maximum Turning Length: 12.2 inches (350.5 mm)

Chuck Size: 6 inches (152.4 mm)

Bar Capacity: 2 inches (50.8 mm)

Spindle Speed: 6,000 RPM

Spindle Motor: 15 HP (11.2 kW)

Spindle Nose: A2-5

X-Axis Travel: 5.9 inches (150 mm)

Z-Axis Travel: 13.8 inches (350 mm)

Turret Capacity: 10 Stations

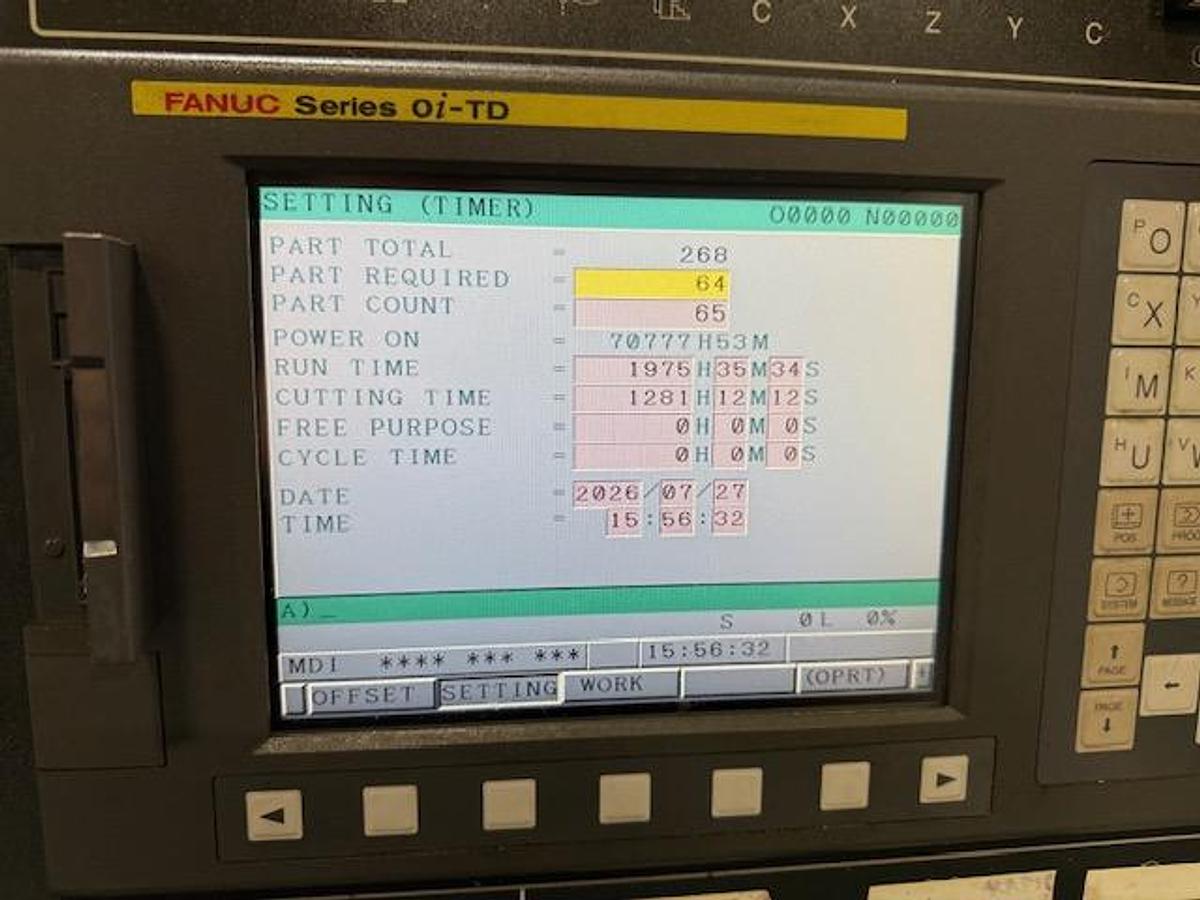

Controller: Fanuc 0i-TD
