1998 MORI SEIKI SL-25Y, Live tooling and Y axis

Sold

1998 MORI SEIKI SL-25Y, Live tooling and Y axis

$29,000 (USD)

Livonia, MI

Description

ONE USED MORI SEIKI LIVE MILL, Y-AXIS MULTI- AXIS CNC LATHE 1998

Model: SL-25Y S/N 57


Specifications:

X travel: 7.7 “ <5.1” + 2.6”>

Z travels: 23.2”

Y travels: 3.9”

Swing: 32.1”

Swing over cross slide: 26.73”

Max. diameter of part: 10.24”

Max. distance between centers: 24.41”

Max. turning length: 20.87”

Spindle nose: A2-8

Spindle rpm: 35-3,500

Spindle HP: 20/15

Spindle positioning: 0.001”

Bore thru spindle: 3.1”

Max. bar capacity: 2 5/8”

Traverse rates:

X: 472 ipm

Z: 590 ipm

Y: 236 ipm

Rotary HP/RPM: 5/3 HP and 100 to 2,000 rpm

Tail stock spindle travels: 4.33”

Tail stock taper: #5MT

Machine KVA rating: 36

Dimensions: 125.3” x 70.8” x 81” high x 11,880 lbs.

EQUIPPED WITH:

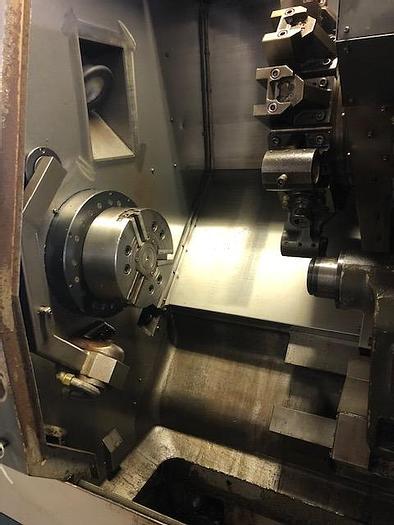

Kitagawa 10” hydraulic chuck

Tail stock with #5MT and 15.9” of travel, quill travel: 3.9”

Turbo Chip conveyor (side exit)

Full C & Y axis

Boring bar holders as shown in photos

One each Axial and radial live tool holders

Rigid tapping


Tool pre setter

Bar feed interface

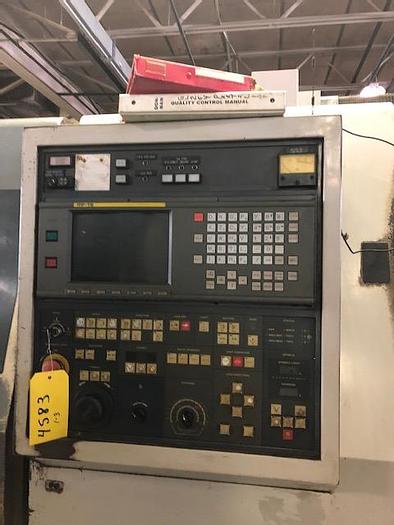

Fanuc 16T controls

Available manuals

Specifications

ManufacturerMORI SEIKI
ModelSL-25Y
Year1998
ConditionUsed
