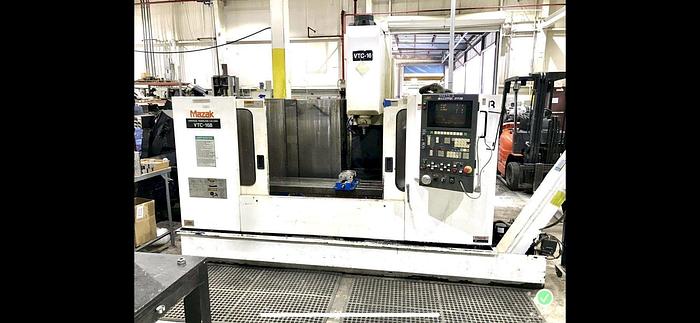

1995 MAZAK VTC16B

MAZAK VTC 16B

Machining Centers, Vertical 1995

S/N 114933

General Info and factory specs

Brand: Mazak

Model: VTC 16B

Approx. Shipping Weight: 15,000 Lbs.

Approx. Shipping Dimensions: 10' L x 10' W x 10' H

Loading Fee: Rigging Required

Specifications:

Table Size: 57.4" x 16"

X-Axis Travel: 44"

Y-Axis Travel: 16.1"

Z-Axis Travel: 20"

Distance from Spindle Nose to Table Top: 4.3" - 24"

Distance from Spindle Centerline to Column: 22"

Spindle Nose: CT 40

Spindle Speed: 20-8000 RPM

Tool Magazine Capacity: 24 ATC

Max Tool Diameter: 3.1"

Max Tool Length: 13.8"

Rapid Traverse Rate X & Y Axis: 787 ipm

Rapid Traverse Rate Z Axis: 590 ipm

Main Motor: 15 HP

Controller: Mazatrol M Plus
