2005 KITAKO MT4-200

2005 KITAKO MT4-200

Contact us for price

Livonia, MI

Contact Us

orCall 732-367-4130

Description

Kitako MT4-200 CNC Multi-Spindle Lathe


Mfd. 2005

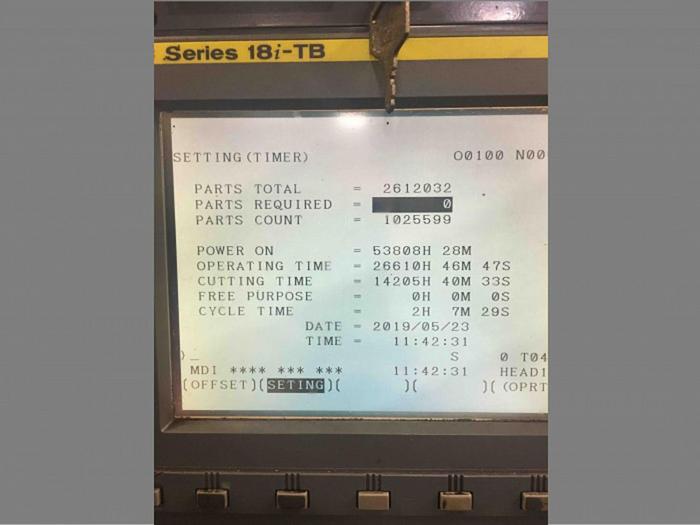

with FANUC 18Ti (4-axis)

Control and all standard accessories, including:

(4) A2-6 Spindles (2 for turning, 2 for loading/unloading) - 2667 rpm max. spindle speed

(2) 20/15 HP Spindle Drive Motors

(2) Box Slideways for X and Z Axis

(2) 6.3 x 9.9" XZ Travels

(1) Servo Drive Spindle Carrier

-- Carrier Index, 2.5 sec./180 degrees, 2.0 sec./90 degrees

-- 28.35" dia. Curvic Coupling with 10,780 lbs Clamping Force

(2) 8-Station Drum Turrets with Piping for Coolant Through Tool

(4) Kitagawa 8" 3-Jaw Chucks

(1) Door Interlock

(2) Chip Air Blow Devices for the Loading Chucks

(2) Foot Switches

(1) Lift-Up Chip Conveyor

Machine Accessories:

(2) Max. Spindle Speed 2,667 rpm

(1) Staggered Threading, including:

-- Multiple Repetitive Cycle (required for staggered threading)

-- FS15 Format (required for staggered threading)

-- FANUC Installation (required for staggered threading)

(2) Spindle Orientation for the Loading Spindles

Gantry Loader, including:

(1) Gantry-Type 1-Arm/2-Hand Loader:

-- For AA/AA, AB/AB, and AB/BB Loading

-- 90 deg. Index Hands x 2

-- XYZ Servo Driven

-- 4724 ipm/X, 1968 ipm/Z, 3937 ipm/Y Rapid Feed Rate

-- Loading Sequence is Programmable

-- Loading Area Safety Cover with Door Interlock

(1) Part Stacker with 12 Stations

-- 13.77" Part Stack Height per Station

-- 144 pc Part Queue (12 parts per station x 12 stations)

-- 39.6 min. Part Queue (144 parts x 16.5 sec. cycle time)

(1) Part Discharge Conveyor (approx. 60" long)

(2) Loader Tooling

Specifications

ManufacturerKITAKO
ModelMT4-200
Year2005
ConditionUsed
