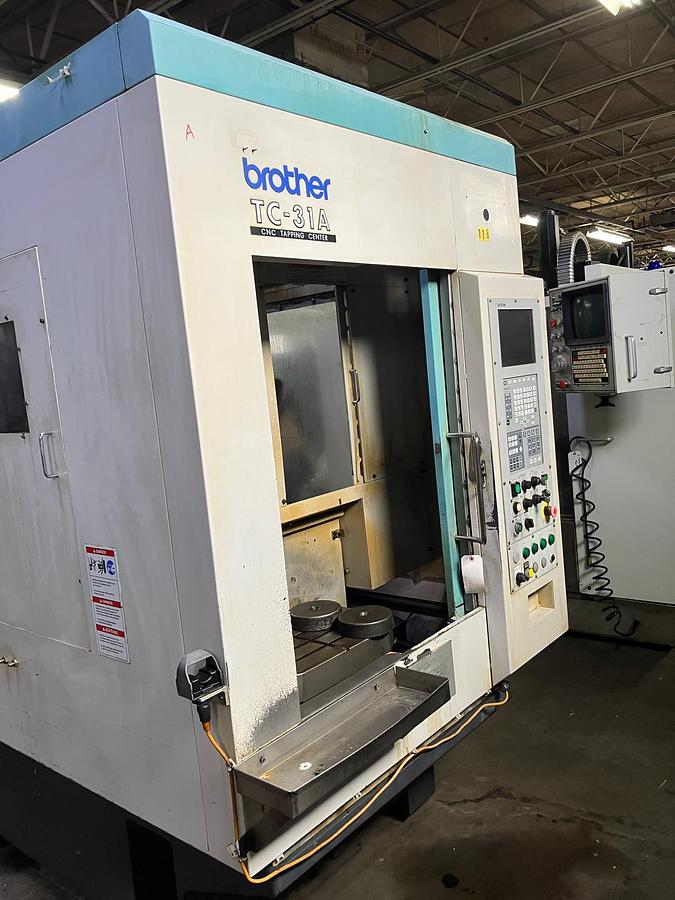

1999 BROTHER TC-31A

BROTHER MODEL TC-31A HIGH SPPEED CNC DRILL/TAP MACHINING 1999

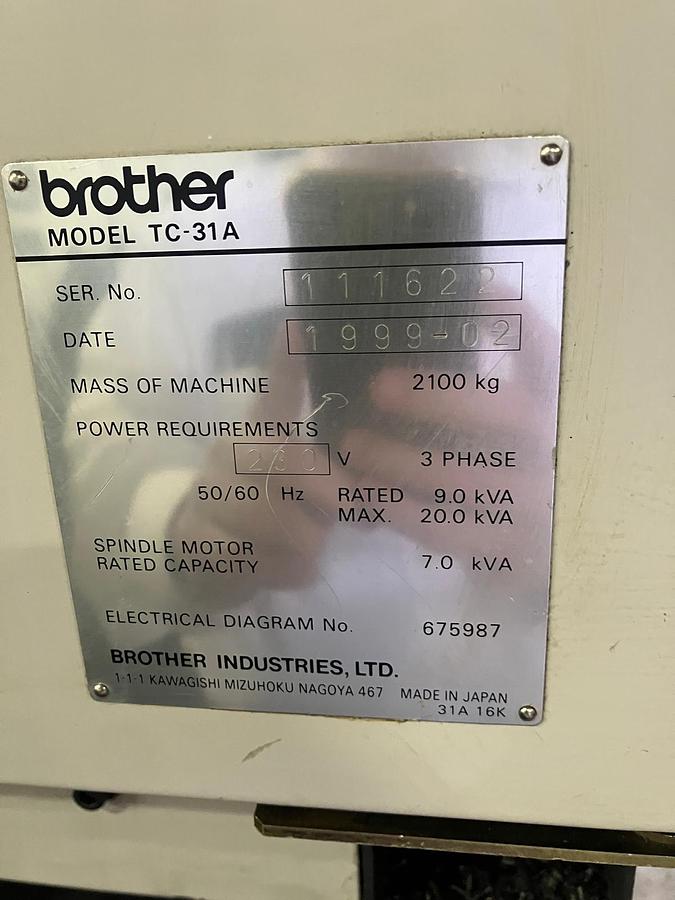

S/N 111622

Specifications

Z-Axis travels 13.8"

X-Axis travels 13.8"

Y-Axis travels 9.8"

Work area/Table size 19.7" x 10.6"

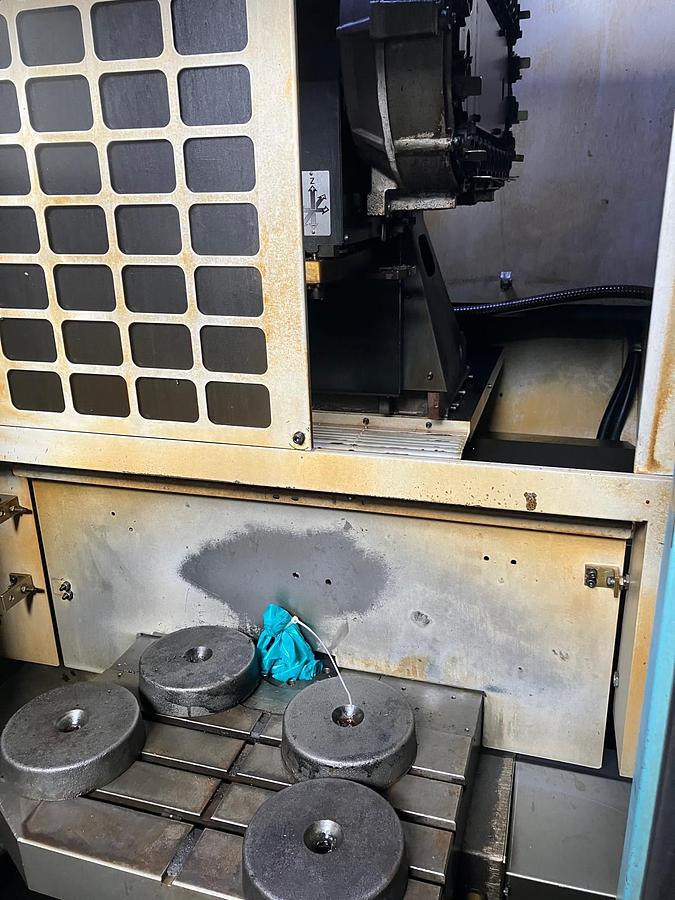

(2) Tables index 180 degrees

Pallet change time 2.3 seconds

Max. part weight (one side) 176 Pounds

Spindle speed (Max. 6000 when tapping) 16-16,000 RPM

Spindle taper 7/24 No. BT30

Tool capacity 25 (+1)

Complete with CNC-A00 Series Control

Rapid traverse 1968 IPM

Cutting feed rate .04 - 787 IPM

Tool to tool time .7 seconds

Chip to chip time 1.7 seconds

Main spindle motor (10 min/continuous) 11.1/6.4 kW

Max. tool length 7.9"

Max. tool diameter 4.92"

Machine dimensions 55" x 114"x 88"H

Machine weight (approx) 4,600 lbs.

MOTOR SPECIFICATIONS

7.5/5 HP Main Spindle Motor

Equipped With

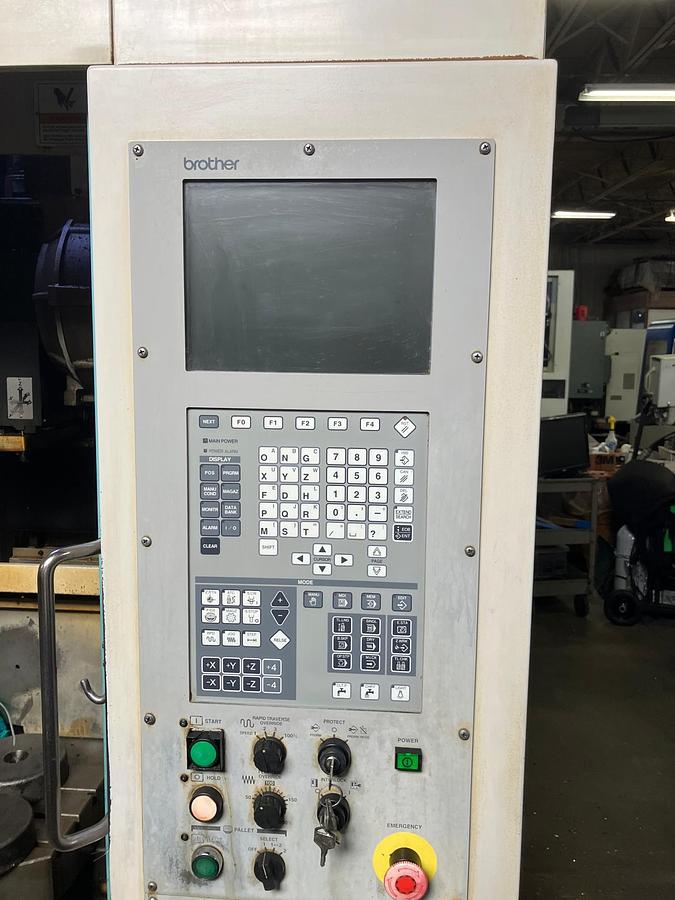

Brother A00 CNC Control

26 Position Tool Changer

(2) 19.7" x 10.6" Pallets

Coolant system
