2005 Kafo VMC-21100

2005 Kafo VMC-21100

Contact us for price

Illinois

Contact Us

orCall 732-367-4130

Description

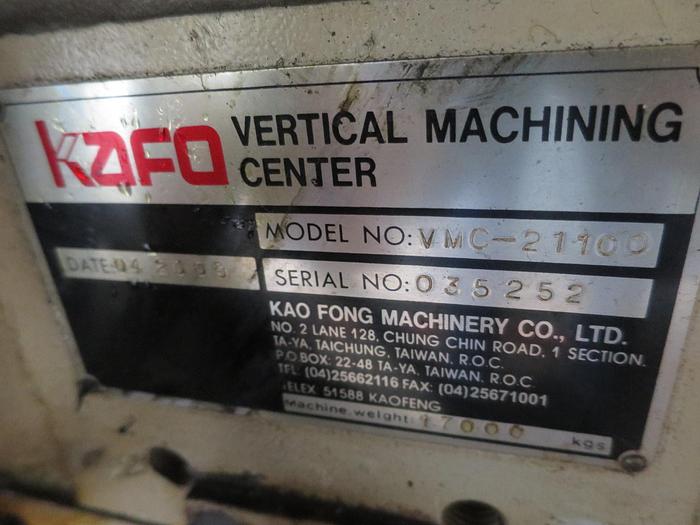

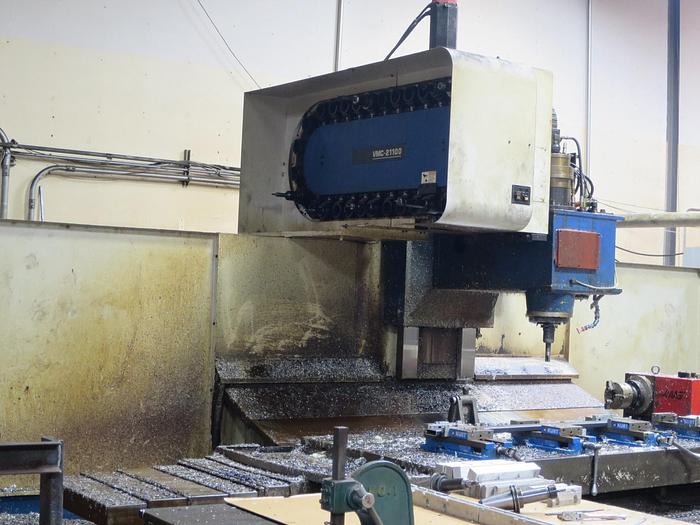

2005 (FEMCO) Kafo VMC-21100 GEARED HEAD CNC VERTICAL MACHINING CENTER, S/N 035252

Description:

MACHINE SPECIFICATIONS:

Table: Table Size Overall    94.49” x 39.37” (2400 x 1000 MM), T Slots (Width x No x Pitch)   0.87” x 0.24” x 5.91” (22 x 6 x 150MM). Table Load    7700 lbs, Travel: X Axis Travel     84.65” (2150 MM)

Y Axis Travel     39.37” (1000 MM), Z Axis Travel    31.10” (790 MM), Spindle Nose to Table   9.84” - 40.94” (250-1040mm), Spindle Center to Column 33.46”/41.02” (850/1042mm), Spindle: Spindle Taper    CT-50 , Pull Stud    CT50, Spindle gear speed    8,000 rpm with Chiller, Change of speeds   infinitely variable (2 STEPS), Feed Rates: Rapid Traverse X, Y, Z Axis  472.44,472.44,,393.70 ipm (12000,12000,10000mm/min), Feed Rate X, Y, Z  Axis  393 ipm (4000 mm/min), Automatic Tool Changer: Magazine Capacity 30 Tool Capacity , Selection    Random, Bi-Direction, Tool Change type   ARM type, Maximum Tool Diameter  4.92” (Æ125mm), Maximum Tool Length   11.81” (300mm) Maximum Tool Weight   33 lbs (15kg), MOTORS: Feed Motors    AC4.5/4.5/4.5HP (AC3.3/3.3KW) Spindle motor (cont/min)  AC25/20HP, Spindle head coolant   AC1/2HP-4p (AC0.4KW-4p), Automatic Slideway   AC1/12HP-4p (AC60W-4p), Coolant pump    AX1/2HP-4p (AC0.4KW-4p), Hydraulic unit    AC3HP-4p (AC2.2KW-4p), Air Required    88 psi/50gpm (6KG/cm²/220 lpm) Machine Size: Floor Area (L x W x H)   19’ x 11.5’ x 11.5’, Net Weight    37,400 lbs

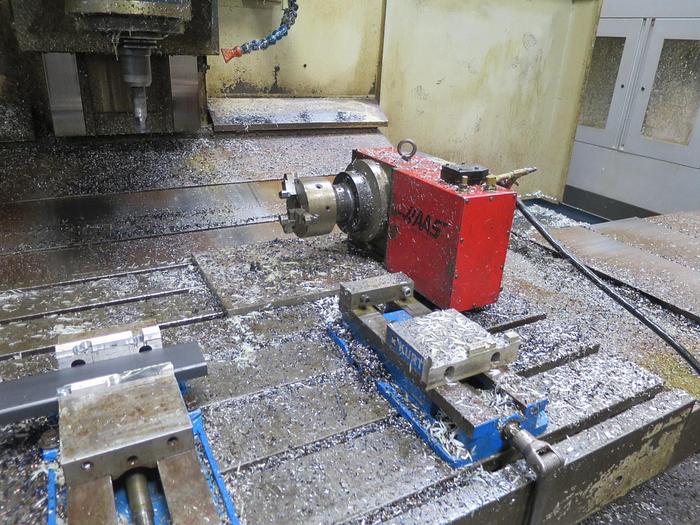

Haas indexer NOT included



(2) Kurt vices included

Specifications

ManufacturerKafo
ModelVMC-21100
Year2005
ConditionUsed
